Monitor Constants
6-67
Adjusting the Meter

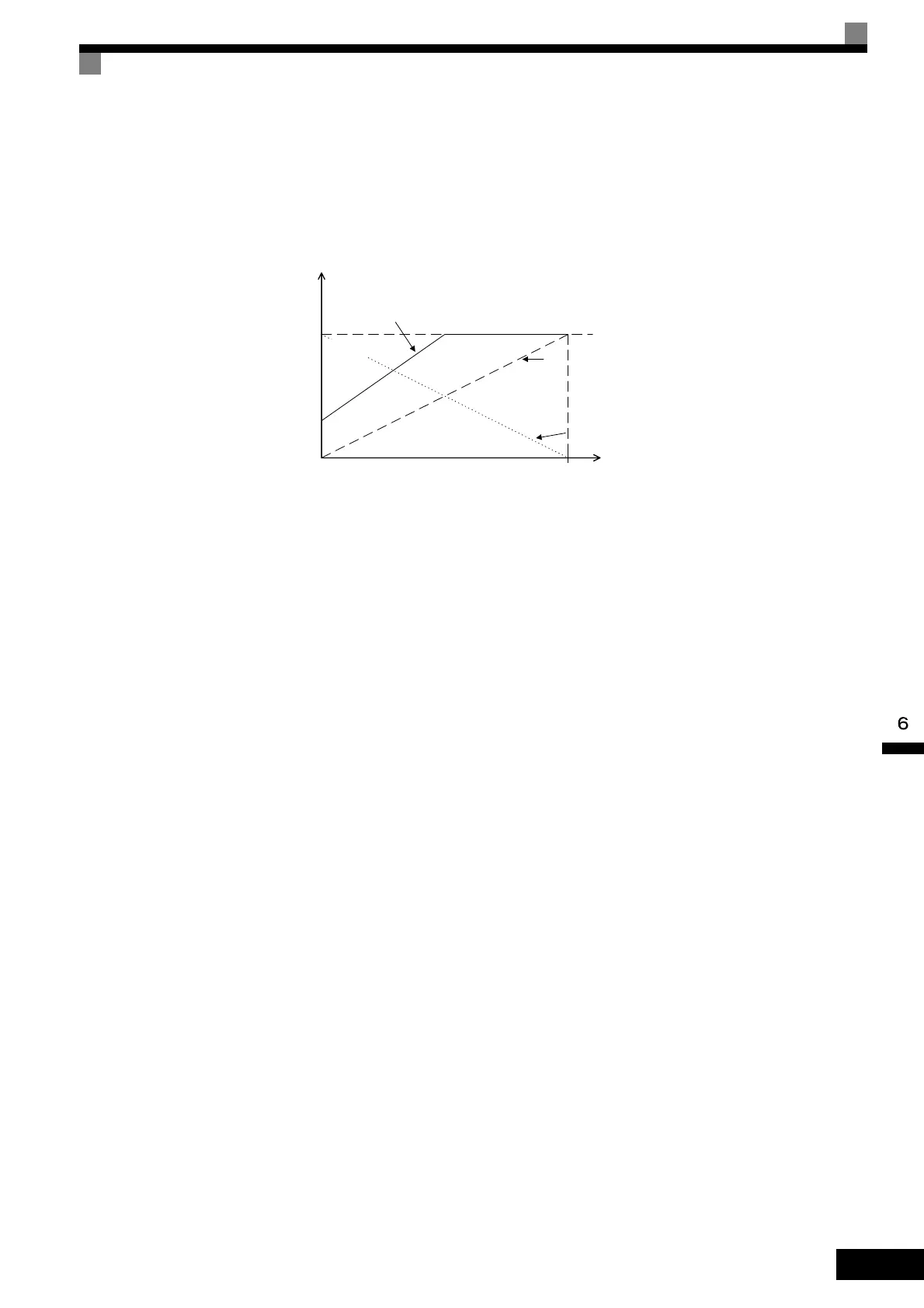

The influence of the settings of gain and bias on the analog output channel is shown on three examples in Fig
6.42.
Fig 6.42 Monitor Output Adjustment
Angezeigtes Signal
(z.B. Ausgangsfrequenz)
Ausgangs-Spannung/
-Strom
0V/4mA
10V/20mA
100%
3V/8,8mA
Gain: 100%
Bias: 0%
Gain: 170%
Bias: 30%
Gain: 0%
Bias: 100%
Monitor item
(e.g. Output Frequency)
Output voltage
3V/8.8mA
10V
3V
0V
