6-108
Comparing Inverter Constants and Digital Operator Constant Set Values (VERIFY)
To compare Inverter constants and Digital Operator constant set values, use the following method.
If an error is displayed, press any key to cancel the error display and return to the o3-01 display. Error displays
and their meanings are shown below. (Refer to Chapter 7 Errors when Using the Digital Operator Copy
Function.)
Application Precautions

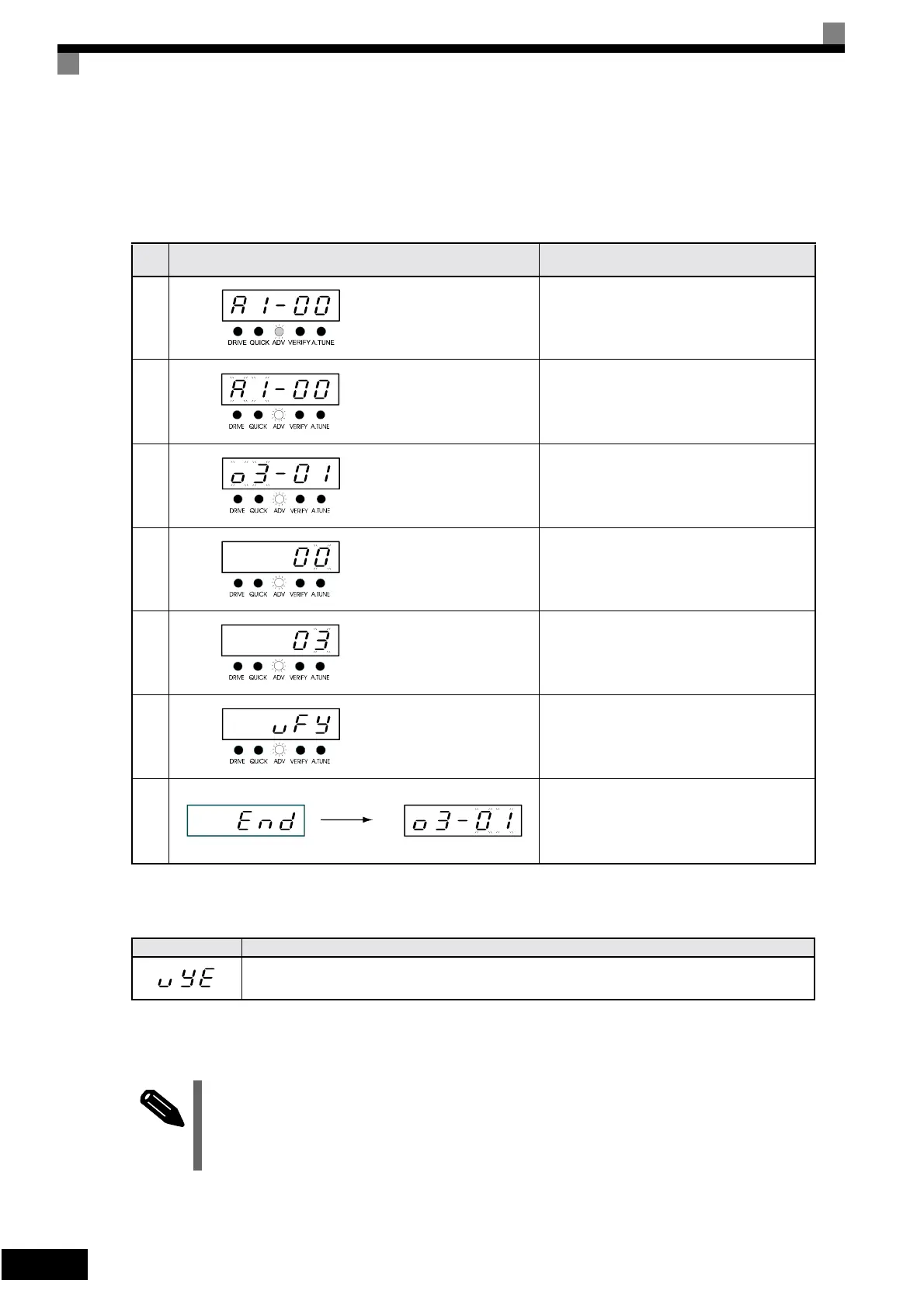

Table 6.4 VERIFY Function Procedure
Step
No.
Digital Operator Display Explanation
1
Press the MENU key. and select advanced pro-
gramming mode.
2
Press the DATA/ENTER key to enter the con-
stants monitor display.
3
Select constant o3-01 (Copy Function Selec-
tion) using the Increment key and Decrement
key.
4
Press the DATA/ENTER key to enter the func-
tion setting display.
5
Change the set value to 3 using the Increment
key.
6
Press the DATA/ENTER key. The VERIFY
function will start.
7
If the VERIFY function ends normally, “End”
is displayed on the Digital Operator. Constant
o3-01 is automatically reset to 0, and then the
display returns to o3-01.
Error Display Meaning
Verify error (Settings in the Digital Operator and the Inverter do not match).
When using the copy function, check that the following settings are the same between the Inverter and the
Digital Operator.
• Inverter product and type
• Software number
• Inverter capacity and voltage
INFO
