4-8
Digital Operator Displays during Autotuning
The following displays will appear on the Digital Operator during autotuning.

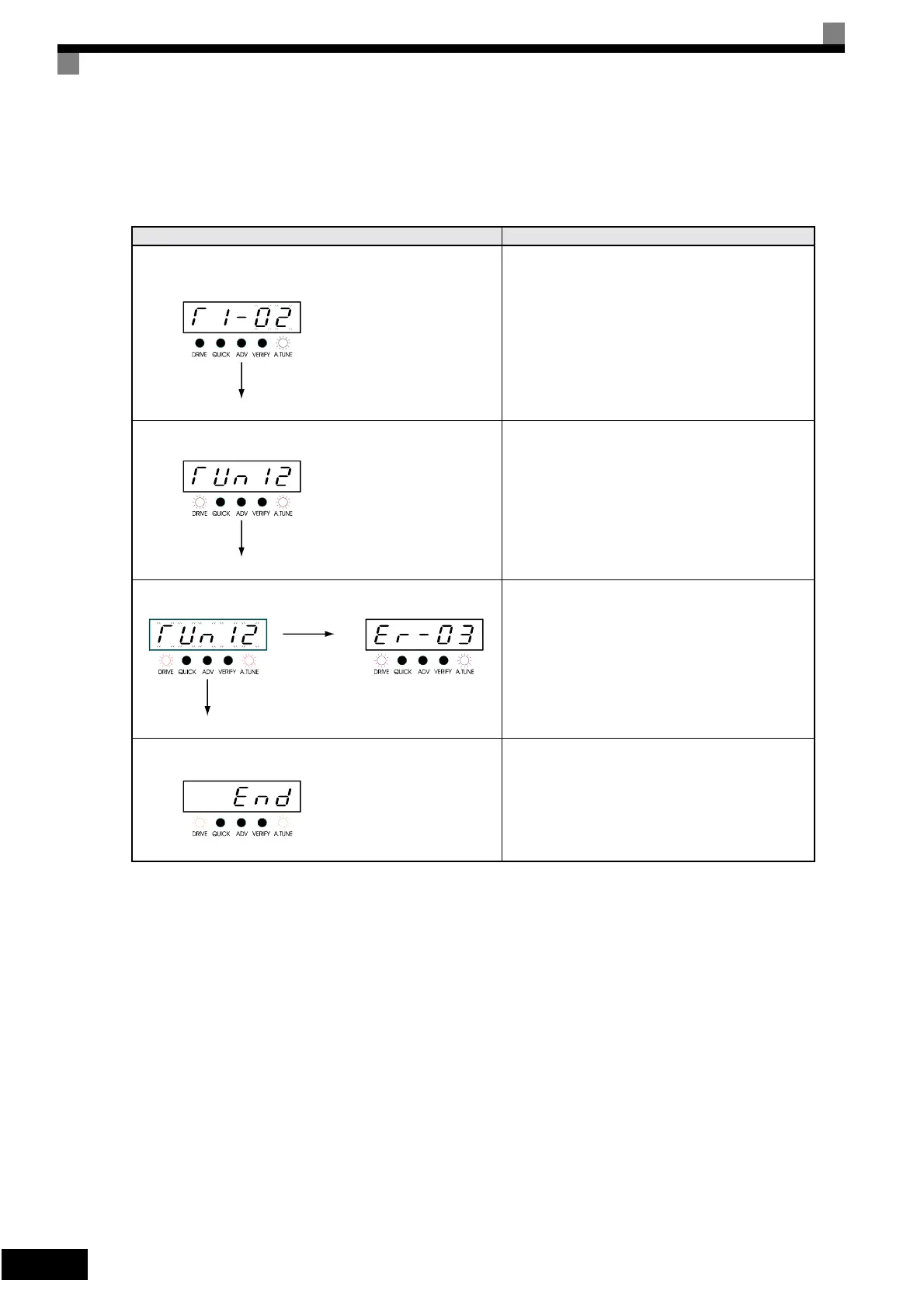

Table 4.2 Digital Operator Displays during Autotuning
Digital Operator Display Description
Motor rated : T1-02
The autotuning start display will appear when all set-
tings through T1-04 have been completed. The
A.TUNE and DRIVE indicators will be lit.
Autotuning started: TUn10
Autotuning will start when the RUN Key is pressed
from the autotuning start display.
Autotuning Stop command input
If the STOP Key is pressed or a measurement error
occurs during autotuning, and error message will be
display and autotuning will be stopped.
Refer to Errors During Autotuning on page 7-10.
Autotuning completed
END will be displayed after approximately 1 to 2 min-
utes, indicating that autotuning has been completed.
