When switching between the master and auxiliary speeds, set H3-05 (Multi-function analog input terminal
A3) to 2 (auxiliary frequency reference, 2nd step analog) and set on of the multi-function input terminals to
multi-step speed reference 1.
When inputting a current to terminal A2 for the master speed frequency reference, set H3-08 (Multi-function
analog input terminal A2 signal level selection) to 2 (current input), and set H3-09 (Multi-function analog
input terminal A2 function selection) to 0 (add to terminal A1).

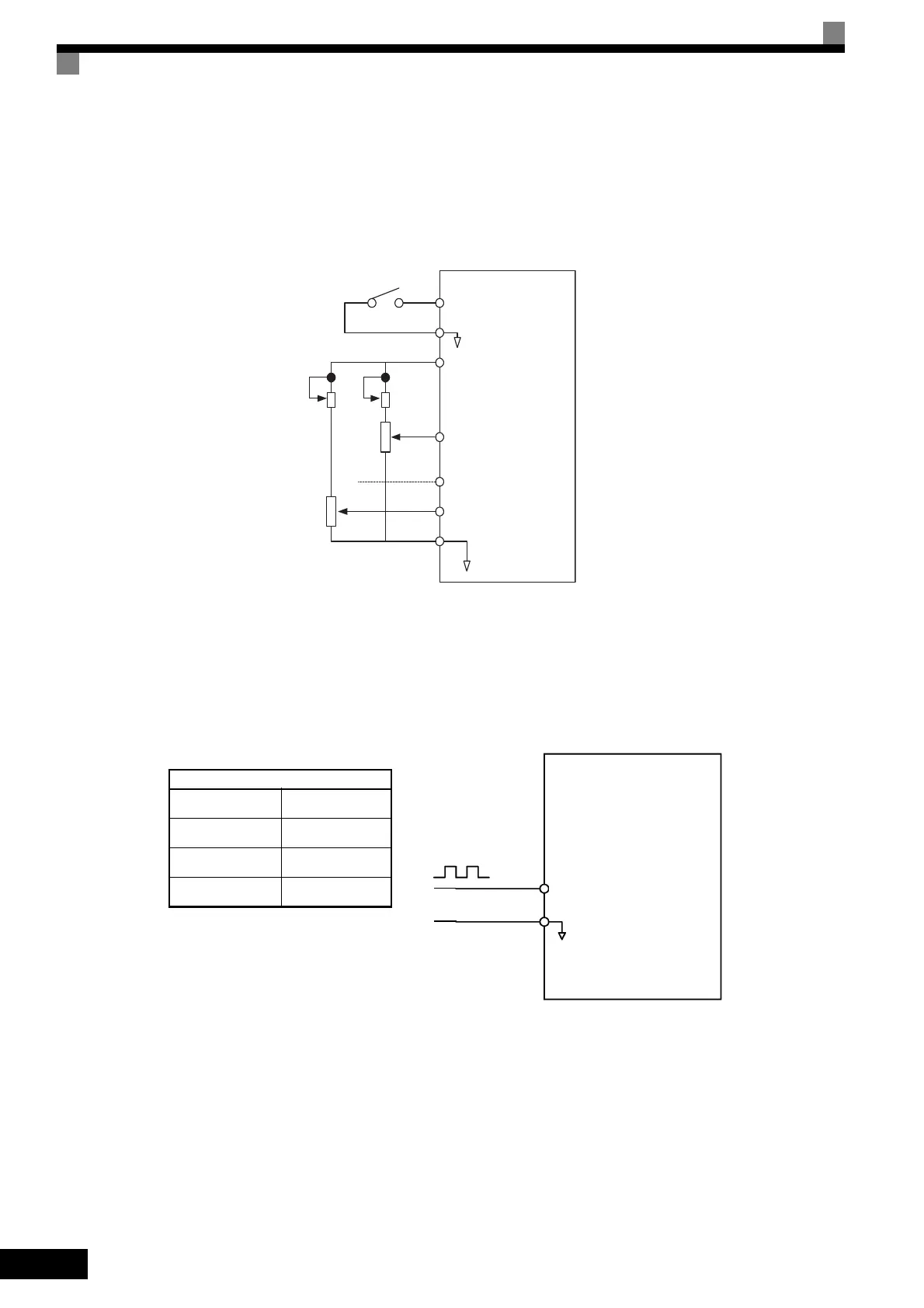

Fig 6.4 Switching between Master and Auxiliary Frequencies
Setting Frequency Reference Using Pulse Train Signals
When b1-01 is set to 4, the pulse train input to control circuit terminal RP is used as the frequency reference.
Set H6-01 (Pulse Train Input Function Selection) to 0 (frequency reference), and then set the 100% reference
pulse frequency to H6-02 (Pulse Train Input Scaling).
Fig 6.5 Frequency Reference Using Pulse Train Input
Inverter
A1
A2
A3
Master speed
frequency reference
(voltage input)
Master speed
frequency reference
(current input)
Auxiliary speed
frequency reference 1
AC
Analog common
2 kΩ
+V
2 kΩ
S5
Multi-step speed
reference 1
4 to 20 mA
Power supply: 15 V,
20 mA
Pulse Input Specifications
Low level voltage 0.0 to 0.8 V
High level voltage 3.5 to 13.2 V
Heavy duty 30% to 70%
Pulse frequency 0 to 32 kHz
Inverter
RP(Pulse train input termi-
nal)
AC (Analog common)
32 kHz max.
3.5 to 13.2 V
Pulse input
