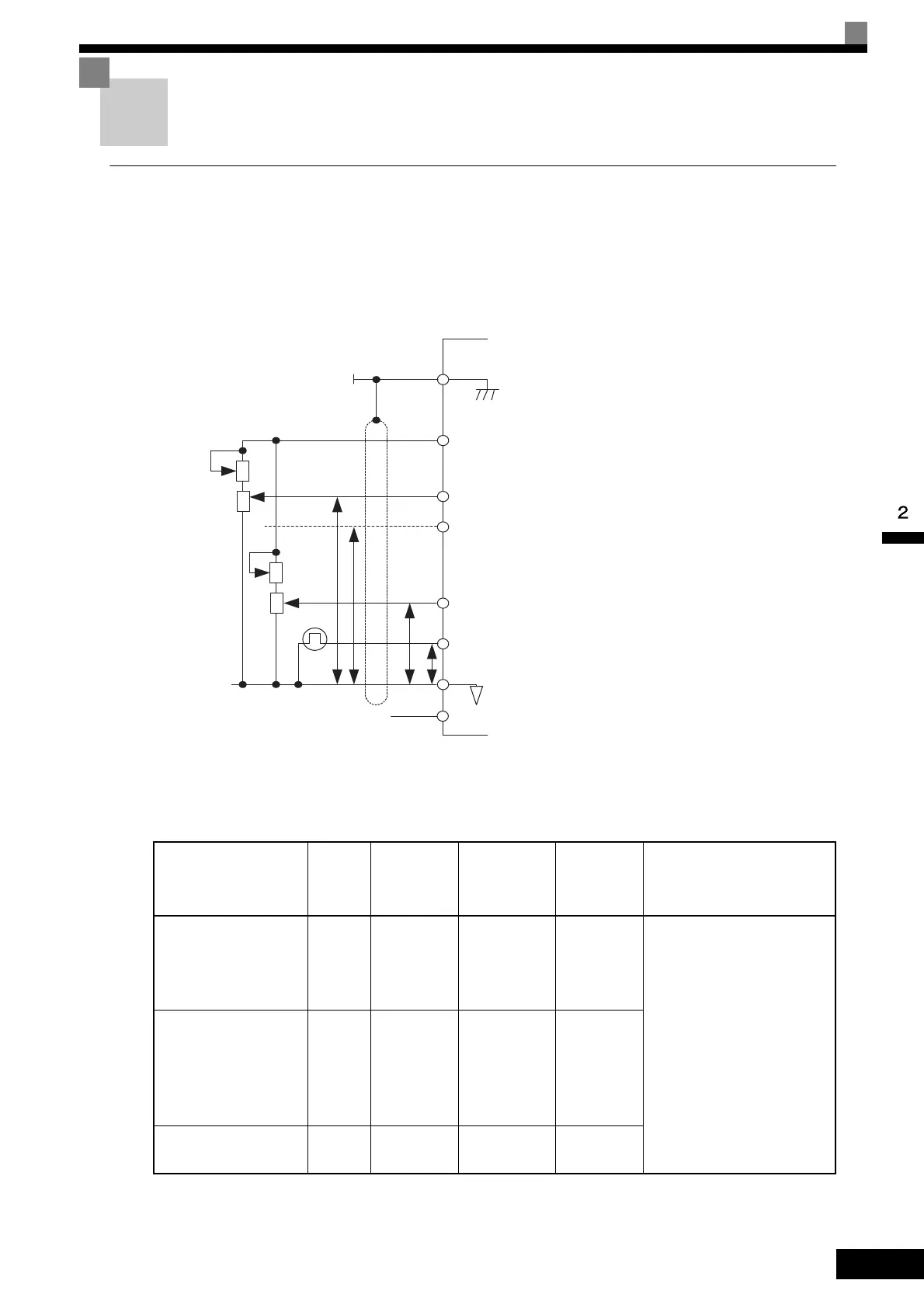

Wiring Control Circuit Terminals
2-
29
Wiring Control Circuit Terminals
Wire Sizes and Closed-loop Connectors
For remote operation using analog signals, keep the control line length between the Digital Operator or opera-
tion signals and the Inverter to 50 m or less, and separate the lines from high-power lines (main circuits or
relay sequence circuits) to reduce induction from peripheral devices.
When setting frequencies from an external frequency setter (and not from a Digital Operator), use shielded
twisted-pair wires and ground the shield to terminal E (G), as shown in the following diagram.
Fig 2.14
Terminal numbers and wire sizes are shown in Table 2.9.
* 1. Use shielded twisted-pair cables to input an external frequency reference.
*2.Refer to Table 2.3 Closed-loop Crimp Terminal and Insulation Cap Sizes (200 V Class and 400 V Class) for suitable closed-loop crimp terminal sizes
for the wires.
* 3. We recommend using straight solderless terminal on signal lines to simplify wiring and improve reliability.
Table 2.9 Terminal Numbers and Wire Sizes (Same for all Models)
Terminals
Termi-
nal
Screws
Tightening
Torque
(Nm)
Possible Wire
Sizes
mm
2
(AWG)
Recom-
mended
Wire Size
mm
2
(AWG)
Wire Type
FM, AC, AM, P1, P2,
PC, SC, A1, A2, A3, +V,
-V, S1, S2, S3, S4, S5, S6,
S7, S8, MA, MB, MC,
M1, M2
M3.5 0.8 to 1.0
0.5 to 2
*2
(20 to 14)
0.75
(18)
Shielded, twisted-pair wire
*1
Shielded, polyethylene-cov-
ered, vinyl sheath cable
(KPEV-S by Hitachi Electri-
cal Wire or equivalent)
P3, C3, P4, C4, MP, RP,
R+, R-, S9, S10, S11,
S12, S+, S-, IG
Phoenix
type
0.22 to 0.25
Single wire
*3
:
0.25 to 1.5
(24 to 16)
Stranded wire:
0.25 to 1.0
(24 to 17)
0.75
(18)
E (G) M3.5 0.8 to 1.0
0.5 to 2
*2
(20 to 14)
1.25
(12)
P
P
P
P
E(G)
Shield terminal
V Speed setting power supply, +15 V 20 mA
A1 Master speed reference 0 to 10 V (-10 to 10 V)
A2 Master speed reference 4 to 20 A
(0 to 10 V, -10 to 10 V)
A3 Auxiliary reference 0 to 10 V (-10 to 10 V)
RP Pulse train input 32 kHz max.
AC Analog common
2 kΩ
2 kΩ
2 kΩ
2 kΩ
-V Speed setting power supply -15 V 20 mA
