6
-60
Setting Motor Protection Operation Time
Set the motor protection operation time in L1-02.
If, after operating the motor continuously at the rated current, a 150% overload is experienced, set the (hot
start) electronic thermal protection operation time. The factory setting is resistance to 150% for 60 seconds.

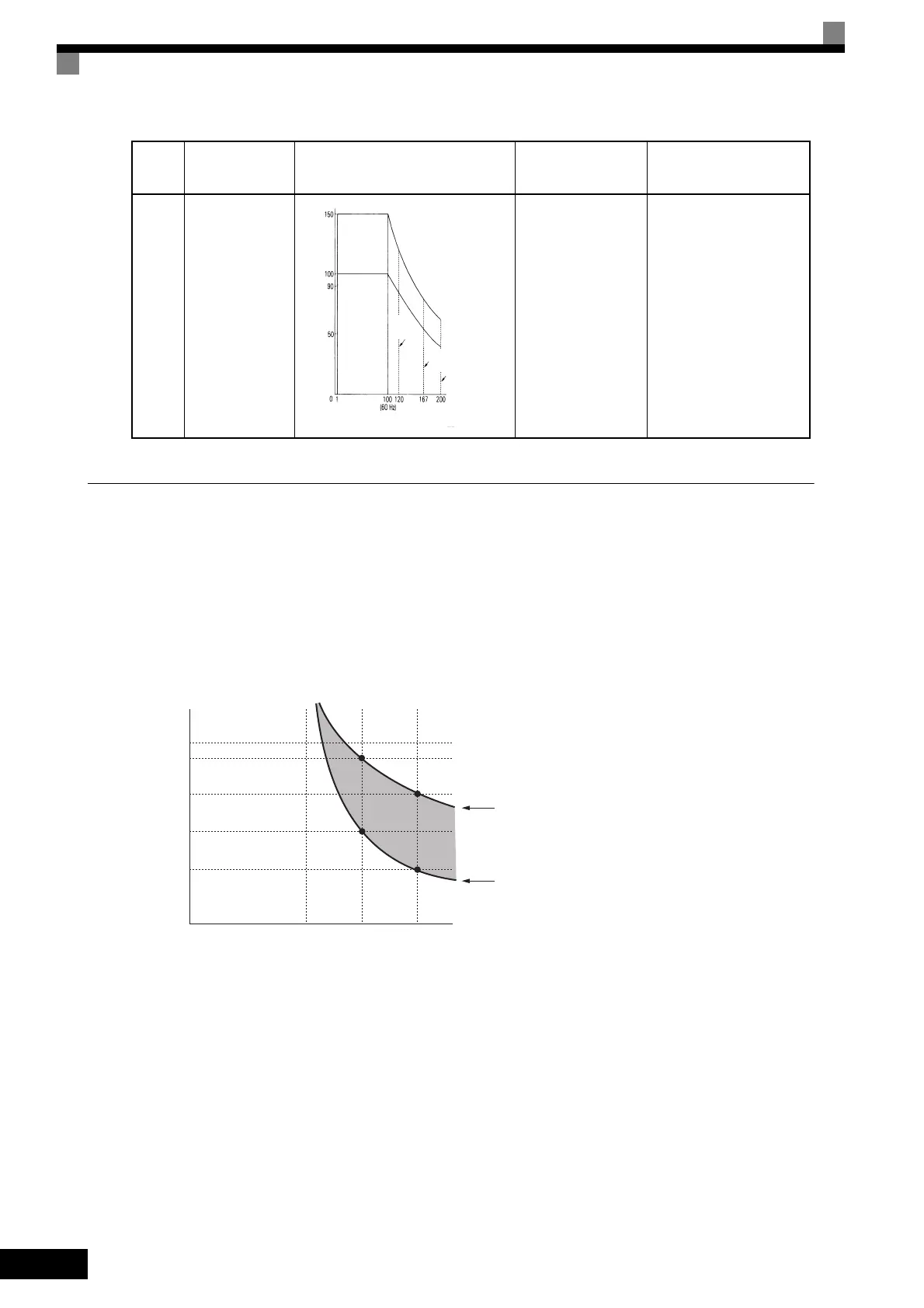

The following diagram shows an example of the characteristics of the electronic thermal protection operation
time (L1-02 = 1.0 min., operation at 60 Hz, general-purpose motor characteristics, when L1-01 is set to 1)
Fig 6.42 Motor Protection Operation Time
Setting Precautions
• If multiple motors are connected to one Inverter, set constant L1-01 to 0 (disabled). To protect the motor,
install a thermal relay in the motor power cable, and perform overload protection on each motor.
• With applications where the power supply is often turned ON and OFF, there is a risk that the circuit cannot be pro-
tected even if this constant has been set to 1 (enabled), because the thermal value will be reset.
•
To detect overloads in good time, set the set value in constant L1-02 to a low setting.
• When using a general-purpose motor (standard motor), the cooling ability will be lowered by f
1/4
(fre-
quency). Consequently, the frequency may cause motor overload protection (OL1) to occur, even below
the rated current. If operating using the rated current at a low frequency, use a special motor.
3
Vector motor
(1:100)
This motor yields a
cooling effect even
when operating at
extremely low speeds
(approx. 0.6 Hz).
Operates continuously at
0.6 to 60 Hz.
L1-01
Set
Value
Motor Type Tolerance Load Characteristics Cooling Ability
Electronic Thermal
Operation (at 100%
Motor Load)
Short time 60 s.
To rque (%)
Rated rotation speed
= 100% speed
Continuous
Frame number
Max. speed of
200 LJ min.
Frame number Max. speed
of 160 MJ to 180 LJ
Frame number Max.
speed of 132 MJ
Rotation speed (%)
Operation time (minutes)
Cold start (Characteristics when an overload occurs
at a complete stop)
Hot start (Characteristics when an overload occurs
during continuous operation at 100%)
Motor current (%)
E2-01 = 100% motor current
10
7
3
1
0.4
0.1
0 100 150 200
