Maintenance and Inspection
8-
17
400 V Class Inverters of 300 kW
Removing the Cooling Fan
1. Remove the terminal cover and top and bottom front covers from the front of the Inverter.
2. Remove any cables that are connected to the cooling fan power relay board.
3. Remove the fan unit screws and pull out the fan units from the Inverter.
4. Replace the fan units with new ones.
And, remove the screws for the fan power relay board and attach this board to the new unit.
Mounting the Cooling Fan
After attaching a new cooling fan unit, reverse the above procedure to attach all of the components.

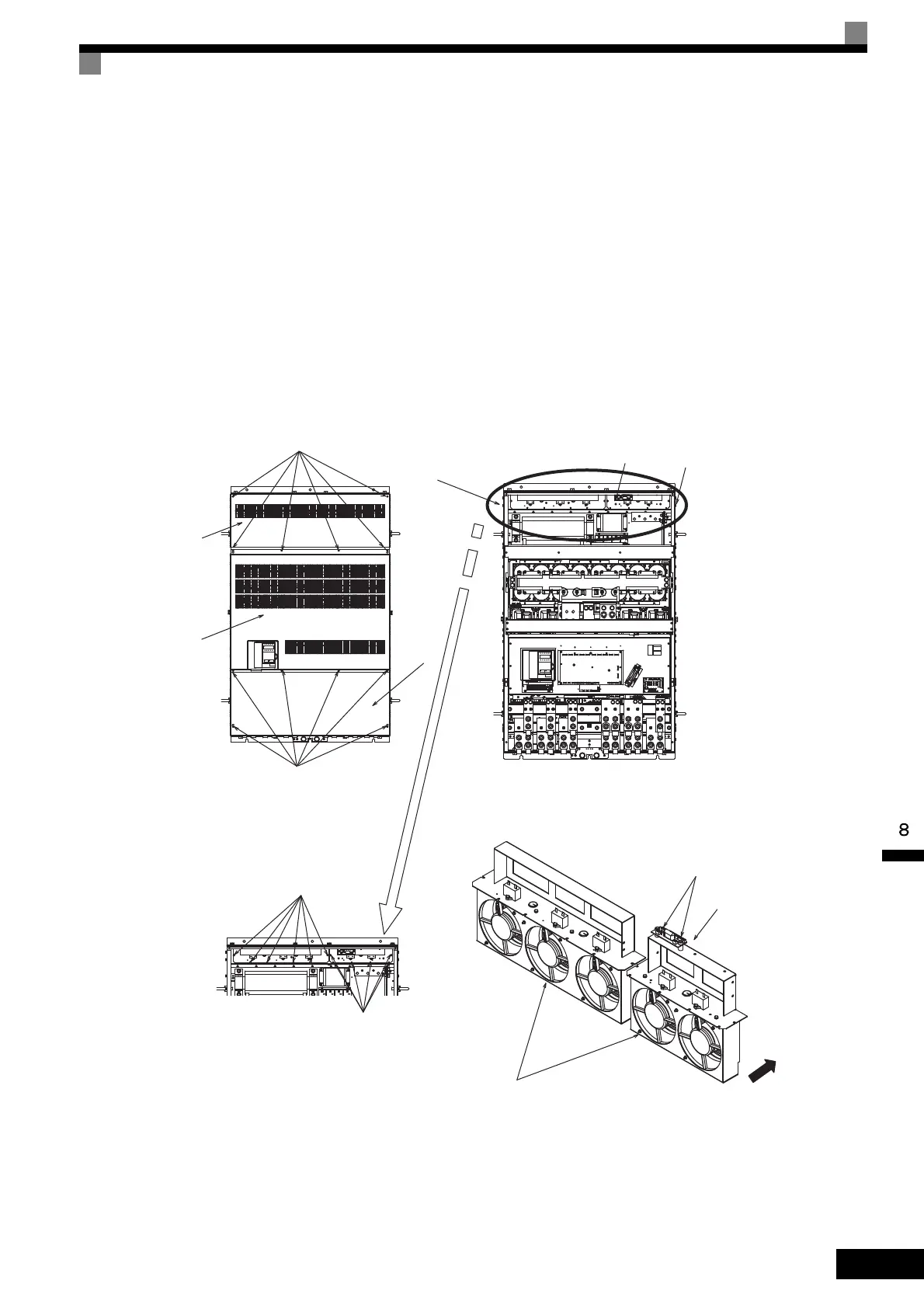

Fig 8.13 Cooling Fan Replacement (400 V Class Inverters of 300 kW)
Front cover mounting screws
Terminal cover mounting screws
Relay board mounting screws
Top front
cover
Bottom
front
cover
Terminal
cover
Fan cover
Fan power relay
board
Fan power relay
board
Fan airflow
derection
Fan units
Fan cover
Fan cover mounting screws
Enlarged
view
Fan cover mounting screws
