Maintenance and Inspection

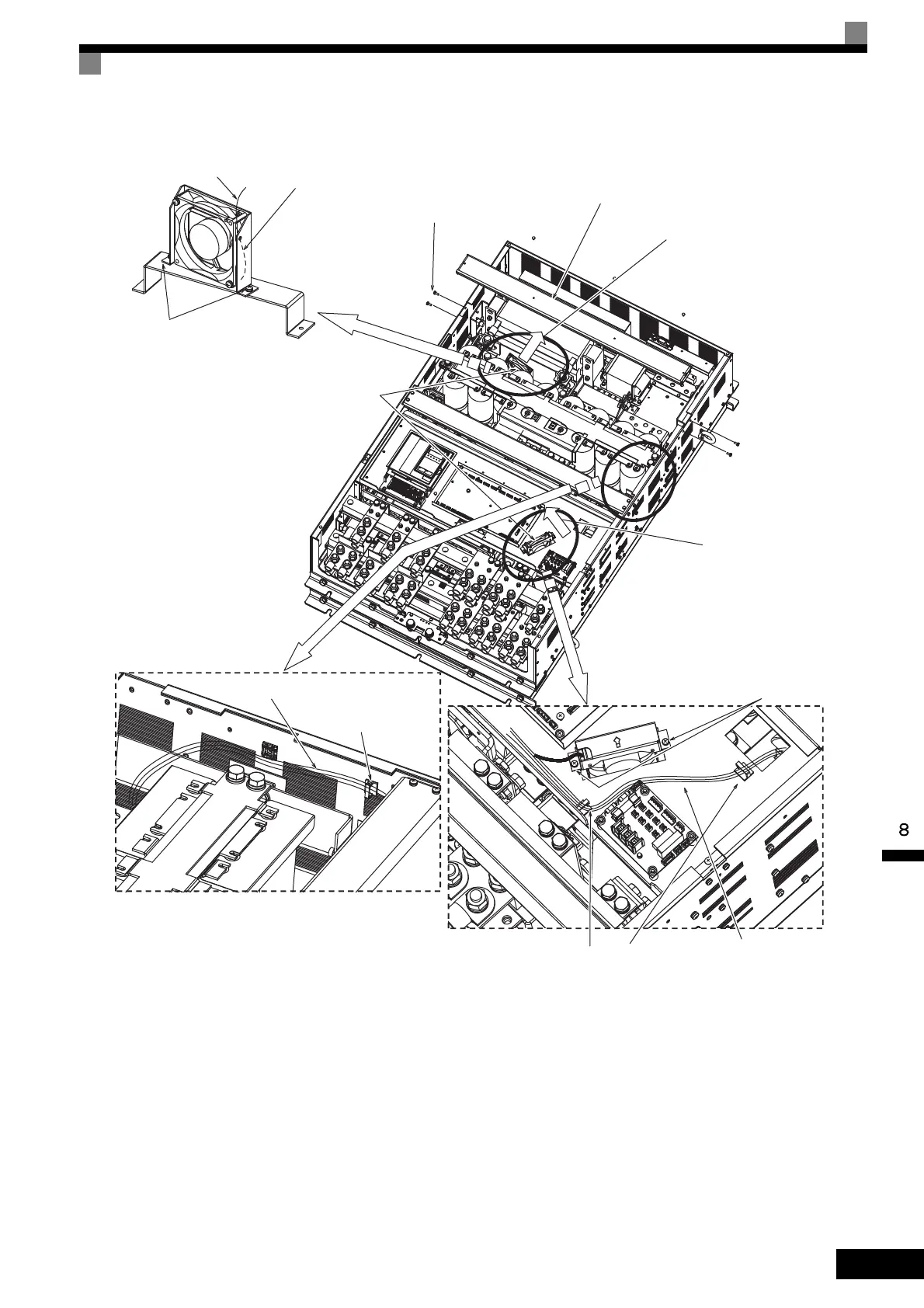

Fig 8.17 Circulation Fan Replacement (400 V Class Inverters of 300 kW)

Mounting screws of

the upper fan cover

Lower fan

Upper fan

Circulation fan

Fan cable

Fix the fan cable with Insulok ties

Frame fixing screws

Fan airflow

direction

Fan airflow

direction

Frame

Enlarged view

Wire saddles

Wire saddle

Enlarged view

Upper fan cable

Mounting screws for

the lower fan cover
