Wiring Main Circuit Terminals

• Incorrect Noise Filter Installation

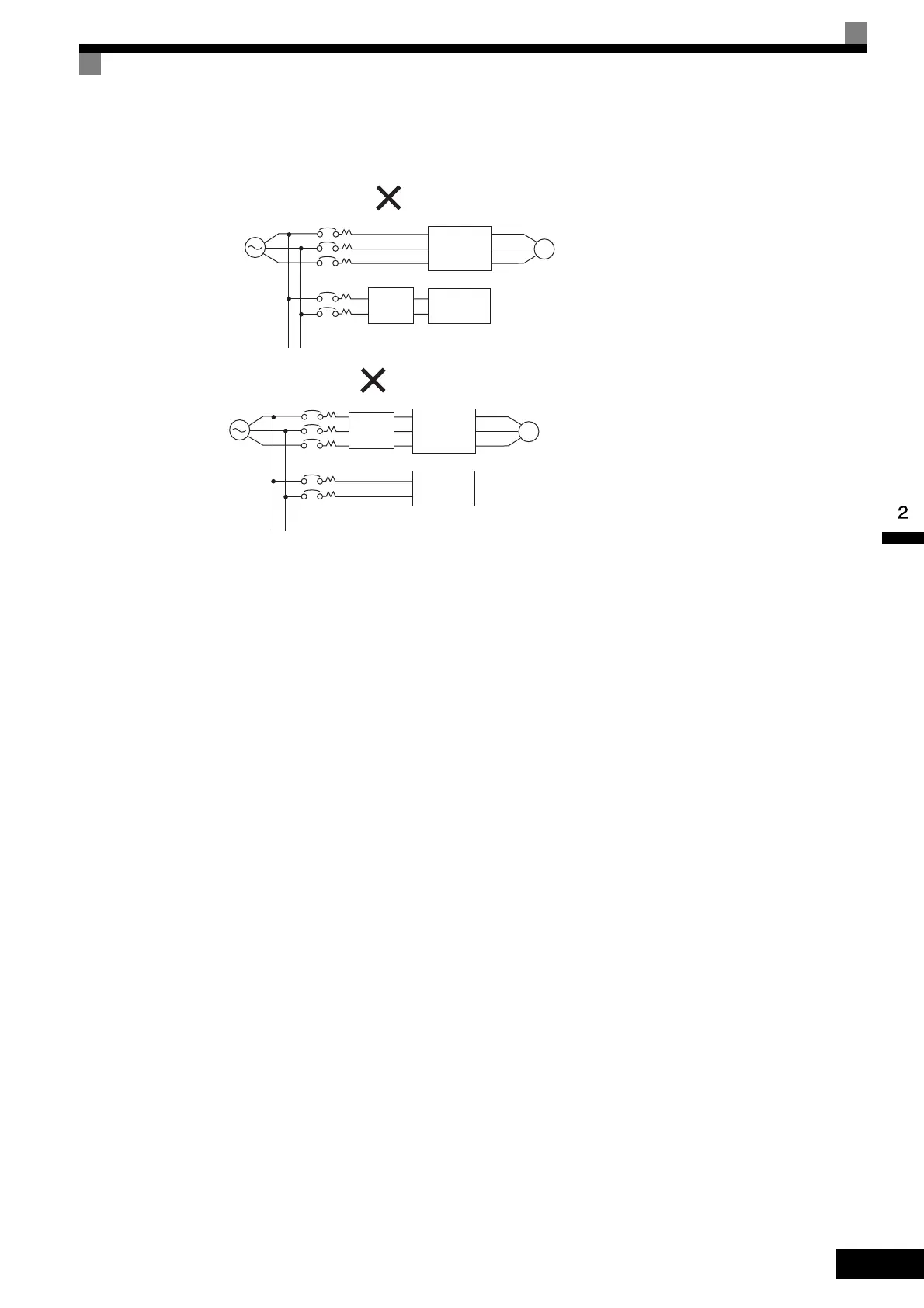

Fig 2.8 Incorrect Power supply Noise Filter Installation

ELCB

MCCB

ELCB

MCCB

Power

supply

Power

supply

Inverter

Other

controllers

Other

controllers

General-

purpose

noise filter

General-

purpose

noise filter

Do not use general-purpose noise filters. No general-

purpose noise filter can effectively suppress noise

generated from the Inverter.
