7. Programming Features
163

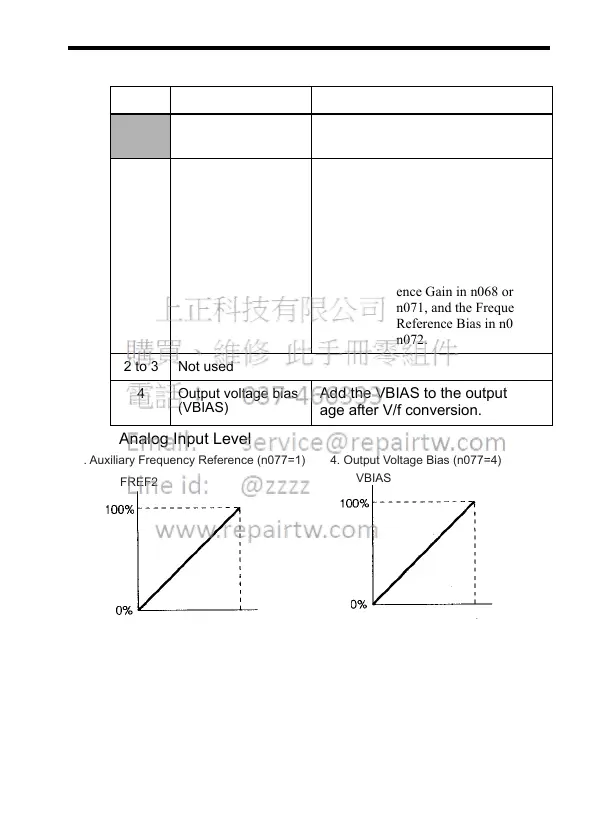

n077 Settings
Analog Input Level
Setting Function Description
0 Disabled
The multi-function input is dis-
abled.
1 Auxiliary frequency
reference (FREF2)
When frequency reference 2 is se-
lected using the multi-step speed
references, the input analog sig-
nal for the CN2 terminal will be the
frequency reference. The n025
setting will be invalid.
Note: Set the Frequency Refer-
ence Gain in n068 or
n071, and the Frequency
Reference Bias in n069 or
n072.
2 to 3 Not used
4 Output voltage bias
(VBIAS)
Add the VBIAS to the output volt-
age after V/f conversion.
1. Auxiliary Frequency Reference (n077=1)
FREF2
(20 mA)
100%=Max. output frequency (n011)
4. Output Voltage Bias (n077=4)
VBIAS
(20 mA)
The VBIAS value to be added is doubled
for 400 V-Class Inverters.
10 V
10 V
(4 mA)
0 V
(4 mA)
0 V
