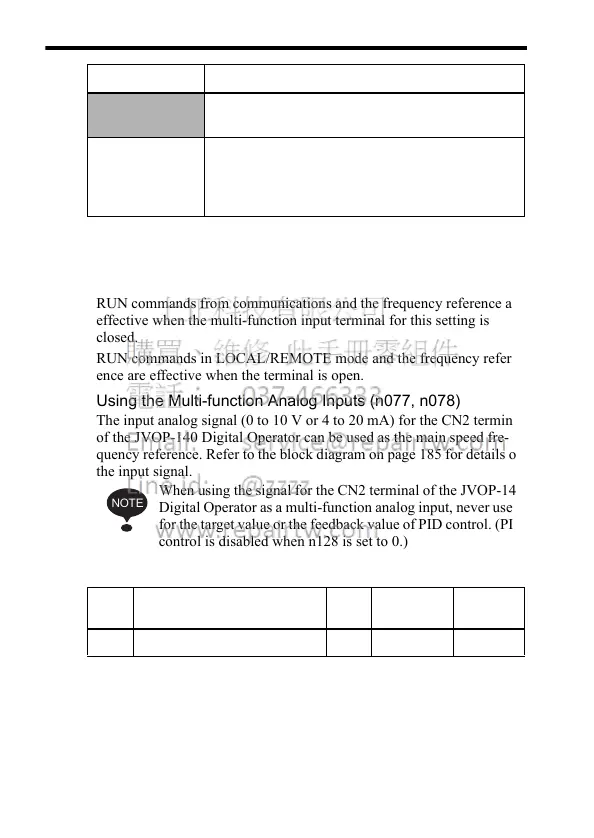

162
Communications/Multi-function Input Terminal Selection
(Setting: 18)
Operation can be changed from DeviceNet communications commands,
or from multi-function input terminal or Digital Operator commands.
RUN commands from communications and the frequency reference are
effective when the multi-function input terminal for this setting is
closed.
RUN commands in LOCAL/REMOTE mode and the frequency refer-
ence are effective when the terminal is open.
Using the Multi-function Analog Inputs (n077, n078)
The input analog signal (0 to 10 V or 4 to 20 mA) for the CN2 terminal
of the JVOP-140 Digital Operator can be used as the main speed fre-
quency reference. Refer to the block diagram on page 185 for details on
the input signal.
When using the signal for the CN2 terminal of the JVOP-140
Digital Operator as a multi-function analog input, never use it
for the target value or the feedback value of PID control. (PID
control is disabled when n128 is set to 0.)
Multi-function Input Selection (n077)
Setting Description
0 Output frequency is not recorded during
HOLD.
1 When HOLD status is continued for 5 seconds
or longer, the output frequency during HOLD
is recorded and the Inverter restarts at the re-
corded frequency.
No. Name Unit Setting
Range
Factory
Setting
n077 Multi-function Input Selection - 0 to 4 0
NOTE
To Next Page
