3. Mounting
25

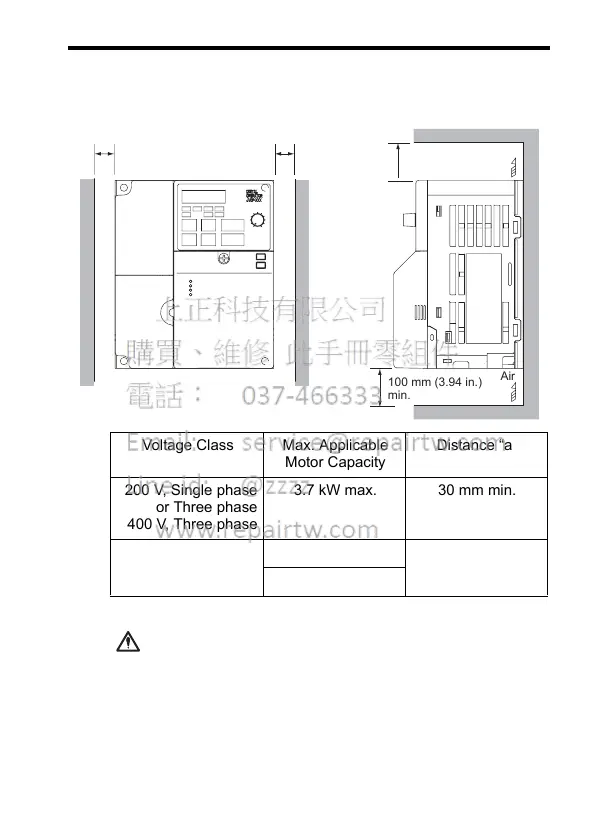

 Mounting Dimensions
To mount the Varispeed V7, the dimensions shown below are required.
• Lift the Inverter by the heatsinks. When moving the
Inverter, never lift it by the plastic case or the termi-
nal cover.
Otherwise, the main unit may fall and be damaged.
• The Varispeed V7 generates heat. For effective cool-
ing, mount it vertically.
Voltage Class Max. Applicable
Motor Capacity
Distance “a”
200 V, Single phase
or Three phase
400 V, Three phase
3.7 kW max. 30 mm min.
200 V, Three phase
400 V, Three phase
5.5 kW 50 mm min.
7.5 kW
a
a
100 mm (3.94 in.)
min.
100 mm (3.94 in.)
min.
Air
Air
CAUTION
