YASKAWA Varispeed V7 - Sequence Input Connection with NPN;PNP Transistor

234
 Sequence Input Connection with NPN/PNP
Transistor

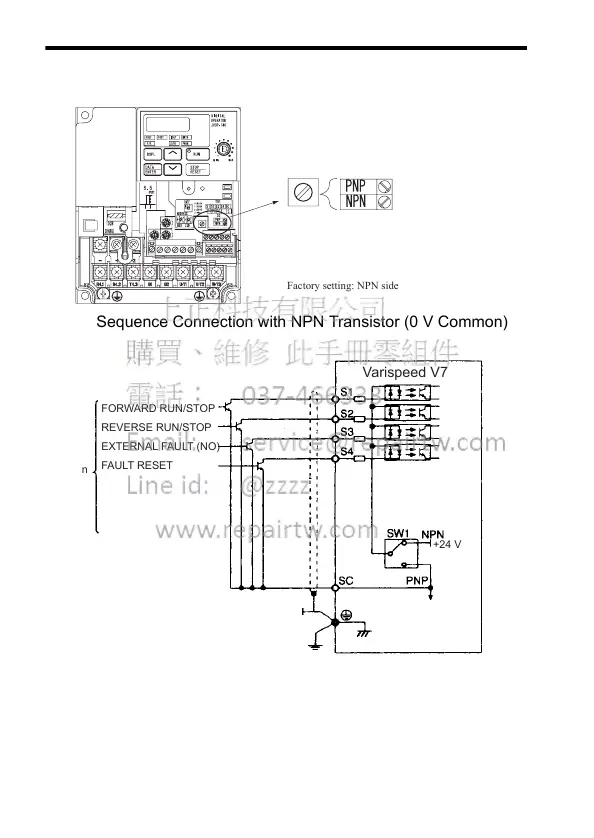

Sequence Connection with NPN Transistor (0 V Common)
When connecting sequence inputs (S1 to S4)
with transistor, turn the rotary switch SW1
depending on the polarity (0 V common: NPN side,
+24 V common: PNP side).
Factory setting: NPN side
FORWARD RUN/STOP
REVERSE RUN/STOP
EXTERNAL FAULT (NO)
FAULT RESET
Multi-
function
inputs
Varispeed V7
+24 V
