* 1. Temperature during shipping (for short period).
* 2. For details, refer to Reducing Motor Noise or Leakage Current (n080) on
page 151.
* 3. There is no corresponding external output terminal.
Status
Indica-
tors
RUN, ALARM, MS, and NS provided as standard indicators
Digital
Opera-
tor
(JVOP
-140)
Provided for monitor frequency reference, output frequency, output cur-
rent
Terminals Main circuit: screw terminals
Control circuit: plug-in screw terminal

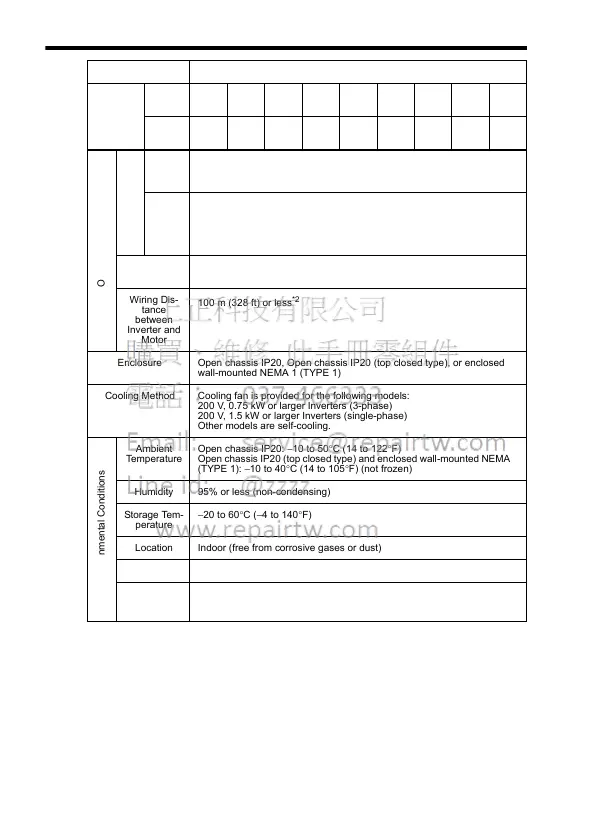

Wiring Dis-
tance
between
Inverter and
Motor
100 m (328 ft) or less
*2
Enclosure Open chassis IP20, Open chassis IP20 (top closed type), or enclosed
wall-mounted NEMA 1 (TYPE 1)
Cooling Method Cooling fan is provided for the following models:
200 V, 0.75 kW or larger Inverters (3-phase)
200 V, 1.5 kW or larger Inverters (single-phase)
Other models are self-cooling.
Ambient
Temperature
Open chassis IP20: −10 to 50°C (14 to 122°F)
Open chassis IP20 (top closed type) and enclosed wall-mounted NEMA 1
(TYPE 1): −10 to 40°C (14 to 105°F) (not frozen)
Humidity 95% or less (non-condensing)
Storage Tem-
perature
−20 to 60°C (−4 to 140°F)
Location Indoor (free from corrosive gases or dust)
Elevation 1,000 m (3,280 ft) or less
Vibration
Up to 9.8 m/S
2
(1G) at 10 to less than 20 Hz,
up to 2 m/S
2
(0.2G) at 20 to 50 Hz
Voltage Class 200 V single-/3-phase
Model
CIMR-
V7
*1
C
3-
phase
20P1 20P2 20P4 20P7 21P5 22P2 23P7 25P5 27P5
Single-
phase
B0P1 B0P2 B0P4 B0P7 B1P5 B2P2 B3P7 - -
Other Functions
Indications
Environmental Conditions
