* 1. Temperature during shipping (for short period).
* 2. For details, refer to Reducing Motor Noise or Leakage Current (n080) on
page 151.
* 3. There is no corresponding external output terminal.
Status
Indica-
tors
RUN, ALARM, MS, and NS provided as standard indicators
Digital
Opera-
tor
(JVOP-
140)
Provided for monitor frequency reference, output frequency, output cur-
rent

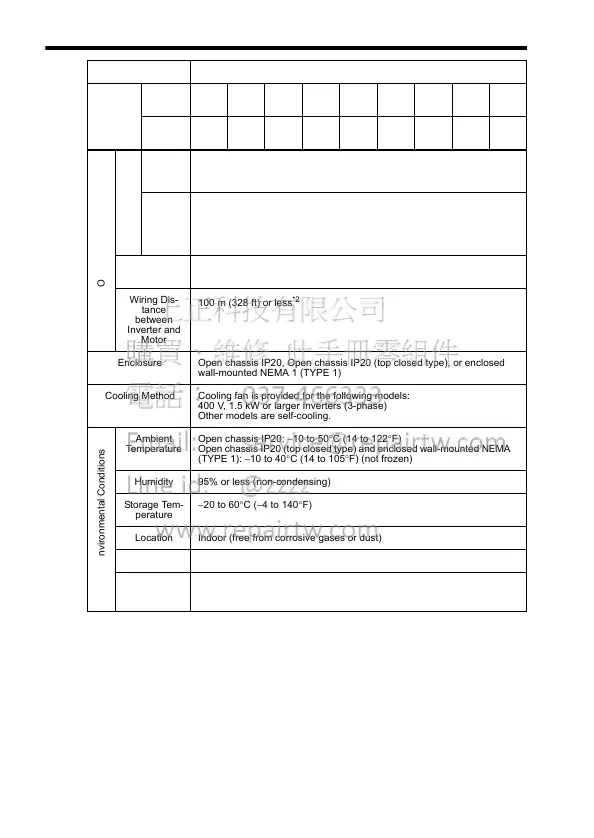

Terminals Main circuit: screw terminals
Control circuit: plug-in screw terminal
Wiring Dis-
tance
between
Inverter and
Motor
100 m (328 ft) or less
*2
Enclosure Open chassis IP20, Open chassis IP20 (top closed type), or enclosed
wall-mounted NEMA 1 (TYPE 1)
Cooling Method Cooling fan is provided for the following models:
400 V, 1.5 kW or larger Inverters (3-phase)
Other models are self-cooling.
Ambient
Temperature
Open chassis IP20: −10 to 50°C (14 to 122°F)
Open chassis IP20 (top closed type) and enclosed wall-mounted NEMA 1
(TYPE 1): −10 to 40°C (14 to 105°F) (not frozen)
Humidity 95% or less (non-condensing)
Storage Tem-
perature
−20 to 60°C (−4 to 140°F)
Location Indoor (free from corrosive gases or dust)
Elevation 1,000 m (3,280 ft) or less
Vibration
Up to 9.8 m/S
2
(1G) at 10 to less than 20 Hz,
up to 2 m/S
2
(0.2G) at 20 to 50 Hz
Voltage Class 400 V 3-phase
Model
CIMR-
V7
*1
C
3-
phase
40P2 40P4 40P7 41P5 42P2 43P0 43P7 45P5 47P5
Single-
phase
---------
Other Functions
Indications
Environmental Conditions
