3. Mounting
27

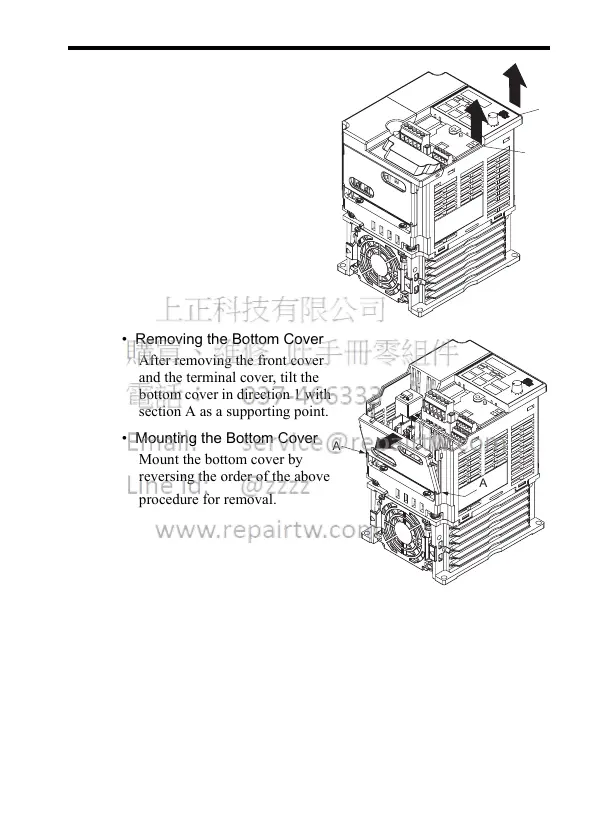

• Removing the Digital Operator
After removing the front cover,
lift the upper and lower sides
(section A) of the right side of
the Digital Operator in direction
1.
• Mounting the Digital Operator
Mount the Digital Operator by
reversing the order of the above
procedure for removal.
• Removing the Bottom Cover
After removing the front cover
and the terminal cover, tilt the
bottom cover in direction 1 with
section A as a supporting point.
• Mounting the Bottom Cover
Mount the bottom cover by
reversing the order of the above
procedure for removal.
A
A
A
