YASKAWA Varispeed V7 - Page 70

6. Operating with DeviceNet Communications
69
* Terminal MA can be used only from DeviceNet communications. There is
no corresponding external output terminal.

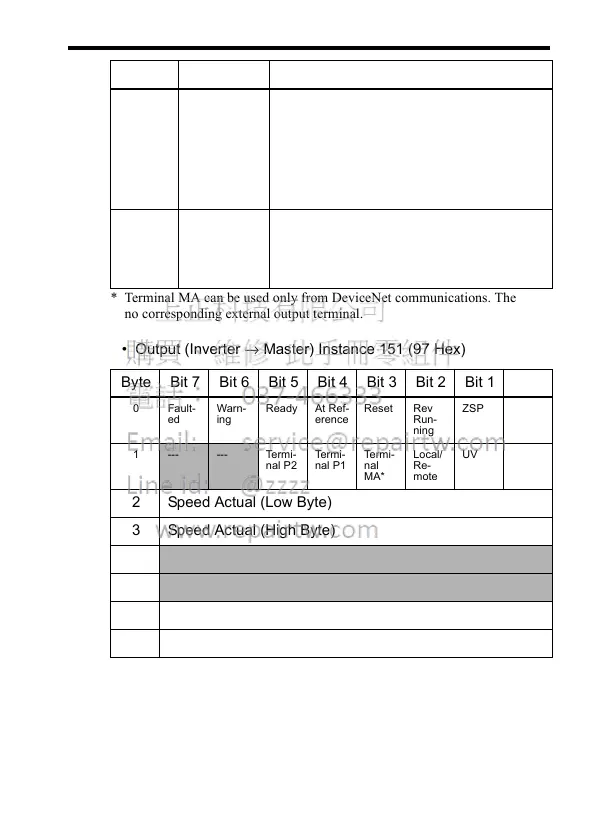

• Output (Inverter → Master) Instance 151 (97 Hex)
Byte 1,
bit 7
Te r min al
P2
Operates the Inverter’s multi-function
output terminal P2. This function is en-
abled only when Inverter constant n059
is set to 18.
0: Terminal P2 OFF
1: Terminal P2 ON
Bytes
2 and 3
Speed
Reference
Sets the Inverter’s speed reference.
The units depend on the setting in Invert-
er constant n035. The units are not af-
fected by the speed scale (SS) setting.
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 Fault-
ed
Warn-
ing
Ready At Ref-
erence
Reset Rev
Run-
ning
ZSP Run-
ning
1
--- --- Termi-
nal P2
Te rm i-
nal P1
Term i-
nal
MA*
Local/
Re-
mote
UV OPE
2 Speed Actual (Low Byte)
3 Speed Actual (High Byte)
4 ---
5 ---
6 Output Current (Low Byte)
7 Output Current (High Byte)
Data Name Contents
