YASKAWA Varispeed V7 - Page 89

88
3 Speed Reference (High Byte)
4 Not used.
5 Not used.
6 Not used.
7 Not used.

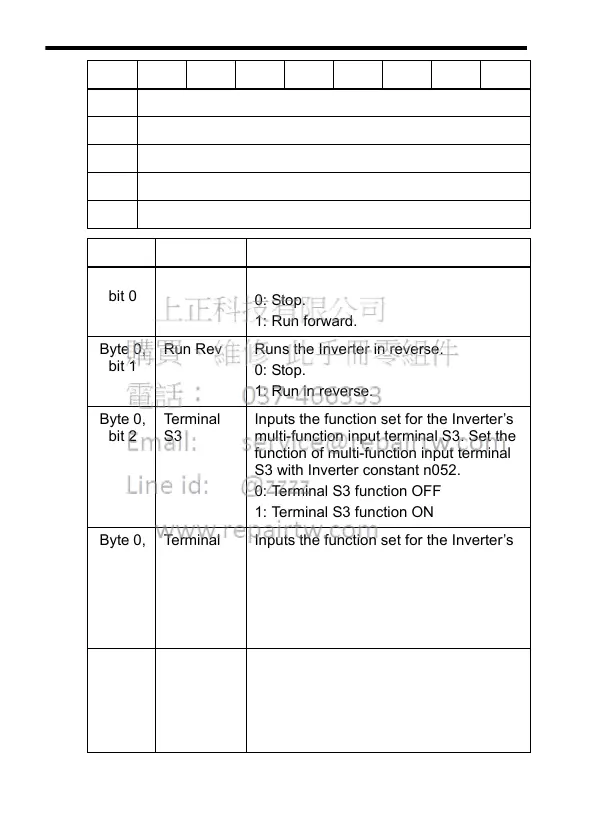

Data Name Contents
Byte 0,
bit 0
Run Fwd Runs the Inverter forward.
0: Stop.
1: Run forward.
Byte 0,
bit 1
Run Rev Runs the Inverter in reverse.
0: Stop.
1: Run in reverse.
Byte 0,
bit 2
Te r min al
S3
Inputs the function set for the Inverter’s
multi-function input terminal S3. Set the
function of multi-function input terminal
S3 with Inverter constant n052.
0: Terminal S3 function OFF
1: Terminal S3 function ON
Byte 0,
bit 3
Te r min al
S4
Inputs the function set for the Inverter’s
multi-function input terminal S4. Set the
function of multi-function input terminal
S4 with Inverter constant n053.
0: Terminal S4 function OFF
1: Terminal S4 function ON
Byte 0,
bit 4
Te r min al
S5*
Inputs the function set for Inverter con-
stant n054 (Multi-function Input Selec-
tion 5.)
0: Terminal S5 function OFF
1: Terminal S5 function ON
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
