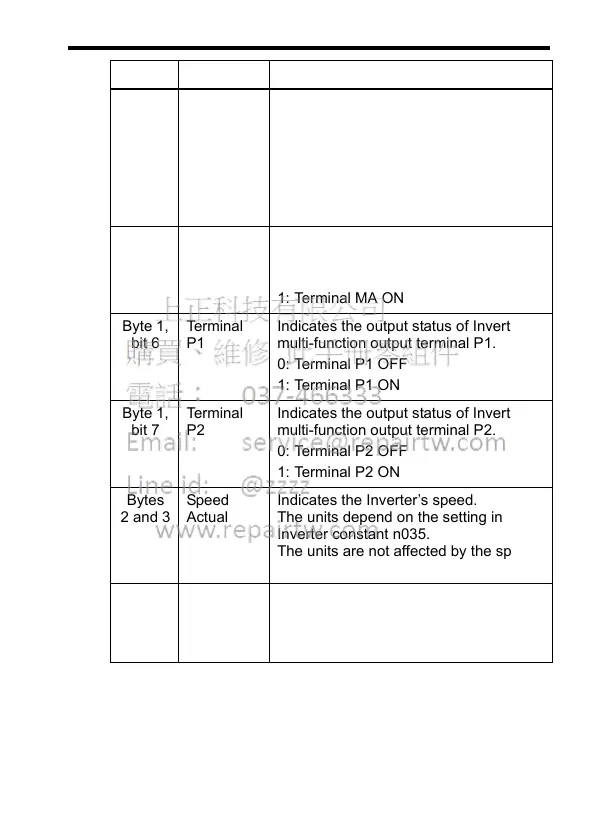

6. Operating with DeviceNet Communications
93
* Terminal MA can be used only from DeviceNet communications. There is
no corresponding external output terminal.
Byte 1,
bit 3
Te r min al
S4
Indicates the input status of Inverter
multi-function input terminal S4. When
using this terminal as a general-purpose
DI terminal, always set Inverter constant
n053 to 28.
0: Terminal S4 OFF
1: Terminal S4 ON
Byte 1,
bit 5
Te r min al
MA*
Indicates the output status of Inverter
multi-function output terminal MA.
0: Terminal MA OFF
1: Terminal MA ON
Byte 1,
bit 6
Te r min al
P1
Indicates the output status of Inverter
multi-function output terminal P1.
0: Terminal P1 OFF
1: Terminal P1 ON
Byte 1,
bit 7
Te r min al
P2
Indicates the output status of Inverter
multi-function output terminal P2.
0: Terminal P2 OFF
1: Terminal P2 ON
Bytes
2 and 3
Speed
Actual
Indicates the Inverter’s speed.
The units depend on the setting in
Inverter constant n035.
The units are not affected by the speed
scale (SS) setting.
Bytes
6 and 7
Output
Current
Monitor
Indicates the Inverter’s output current.
The units are fixed at 0.1 A. The units
are not affected by the current scale
(CS) setting.
Data Name Contents
