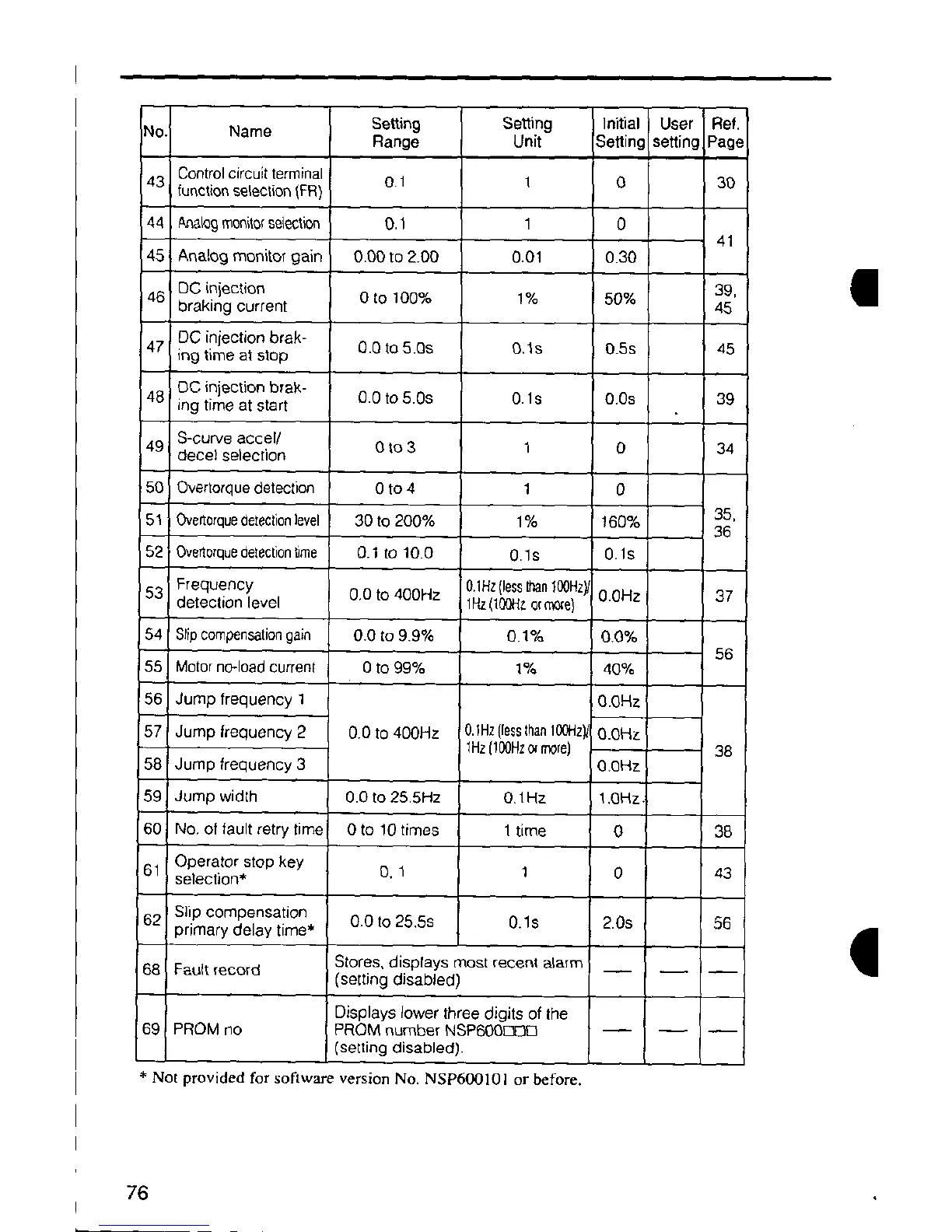

No Name Setting Setting Initial User Ref.
Range Unit Setting setting Pag_
Controlcircuit terminal
43 functionselection/FR} 0.1 1 0 30
44 A_,l.ogm_itor selection 0.1 1 0
41
45 Analog menitot gain 0.00 to 2.00 0.01 0.30
i
DCiniaction 39, •
46 brakingcurrent 0 to 100% 1% 50% 45
DC iniectien brak-
47 ing time at stop 0.0 te 5.0s 0.1s 0.5s 45
DC injection brak- 0.0 te 5.0s 0. ls O.0s 39
48 ing time at start
49 S-curve accel/
deceiselection 0to 3 1 0 34
50 Overtorque detection 0 to 4 1 0
51 C_erterquedelectionlevel 30 to 200% 1% 160% 35,
36
52 Overtorquede_ec6ontime 0.1 te 10.0 0.1s 0.1s
53 Frequency
detection level 0,0 te 400Hz 0.1Hz (less than lOOHz
1Hz(tOOHZem_e} O.OHz 37
54 Slipcompensationgain 0.0 to 9.9% 0.1% 0.0%
56
55 Motor no-load current 0 to 99% 1% 40%
56 Jump frequency 1 O.0Hz
57 Jump frequency 2 0.0 to 400Hz 0.1Hz(lessthan10_z O.OHz
tHz(100Hzorrr_re) 38
58 Jump frequency 3 0.0Hz
59 Jump width 0.0 to 25.5Hz 0.1Hz 1.0Hz.
60 No, of fault retry time 0 to 10 times 1 time 0 38
61 Operator step key
selection* 0, 1 1 0 43
162 Slip compensation 0.0 to 25.5s 0.1s 2.0s 56
i primary delay time"
681 Fault record Stores, displays most recent a_arm
(setting disabled)
Displays lower three digits ef Ihe j
PROM ne PROM number NSP600[3C_3 I -- ' --
69 J (setting disabled).
* Not provided for software version No. NSP60010I or before.
