Yealink SIP-T48G User Manual

User Guide for the SIP-T48G IP Phone
180

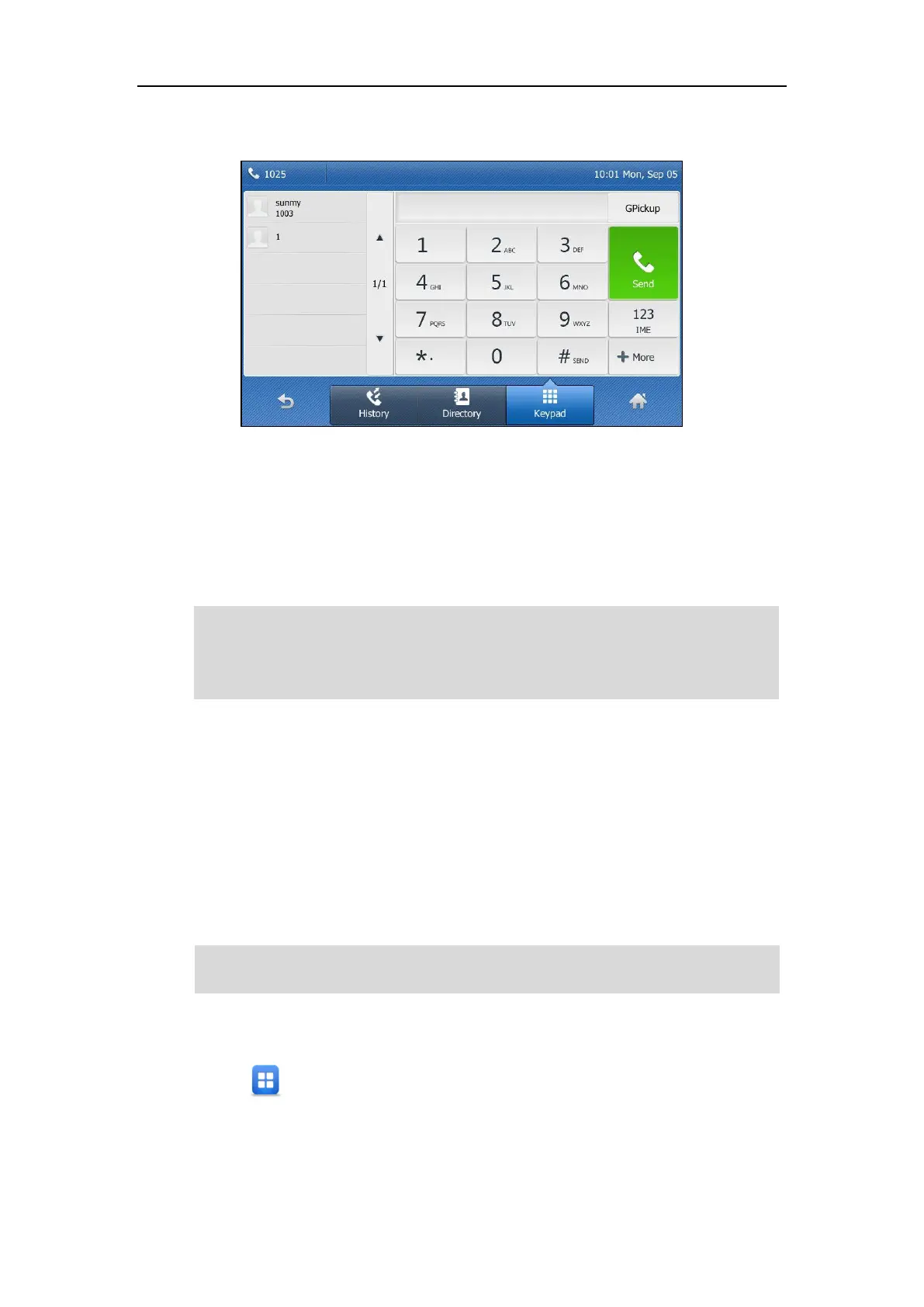

The GPickup appears on the on-screen keypad.
2. Tap GPickup on your phone when a phone in the group receives an incoming call.
The call is answered on your phone.
You can also configure a DSS key as a group pickup key via phone user interface or web user
interface. Once configured, you can pick up a call by tapping the group pickup key directly. For
more information, refer to DSS Keys on page 108.
Note
Anonymous Call
You can use anonymous call to block your identity and phone number from appearing to the
called party when you call someone. For example, you want to call to consult some of the
services, but don’t want to be harassed. Anonymous call is configurable on a per-line basis. You
can also configure the phone to send anonymous call on/off code to the server to
activate/deactivate anonymous call on the server side.
Note
To configure anonymous call via phone user interface:
1. Tap ->Features->Anonymous.
2. Tap the desired line.
3. Tap the On radio box of the Local Anonymous field.
4. (Optional.) Tap the On Code or Off Code radio box of the Send Anony Code field.
Anonymous call is not available on all servers. Contact your system administrator for the
anonymous call on code and off code.
The directed call pickup code and group call pickup code are predefined on the system server.
Contact your system administrator for more information.
The call pickup code configured on a per-line basis takes precedence over that configured on a
global basis.

Yealink SIP-T48G Specifications

General

Expansion module support	Yes
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Volume control	-
Display diagonal	7 \
Display resolution	800 x 480 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
AC adapter input voltage	100 - 240 V
Number of handles included	1 pc(s)

Weight and Dimensions

Width	266 mm
Height	185 mm
