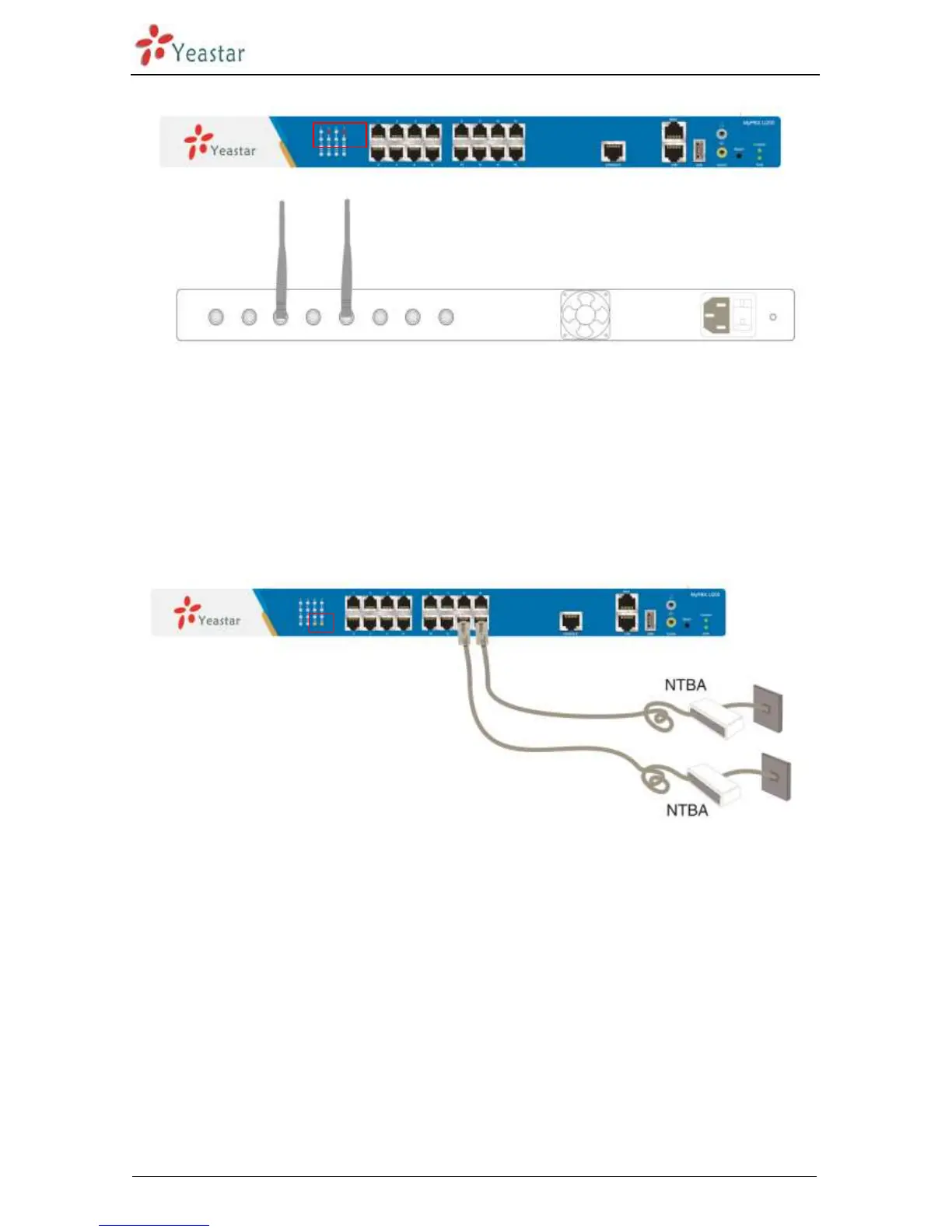

Figure 3-3 Connection of GSM/UMTS ports
3. Connection of BRI ports
The BRI port could be connected to the BRI line and the BRI port of a traditional PBX with a BRI RJ45-RJ11
cable.
For instance, if No.14 and No.16 connectors are BRI ports, the connection could be depicted as below:
Figure 3-4 Connection of BRI ports
3.2.3 Connection of FXS ports
The FXS port could be connected to an analog phone with a phone line.
For instance, if No.6 and No.8 connectors are FXS ports, the connection could be depicted as below:
