MyPBX U100&U200 Administrator's Guide
www.yeastar.com Page 7
2. System Setup
2.1 Connection Drawing

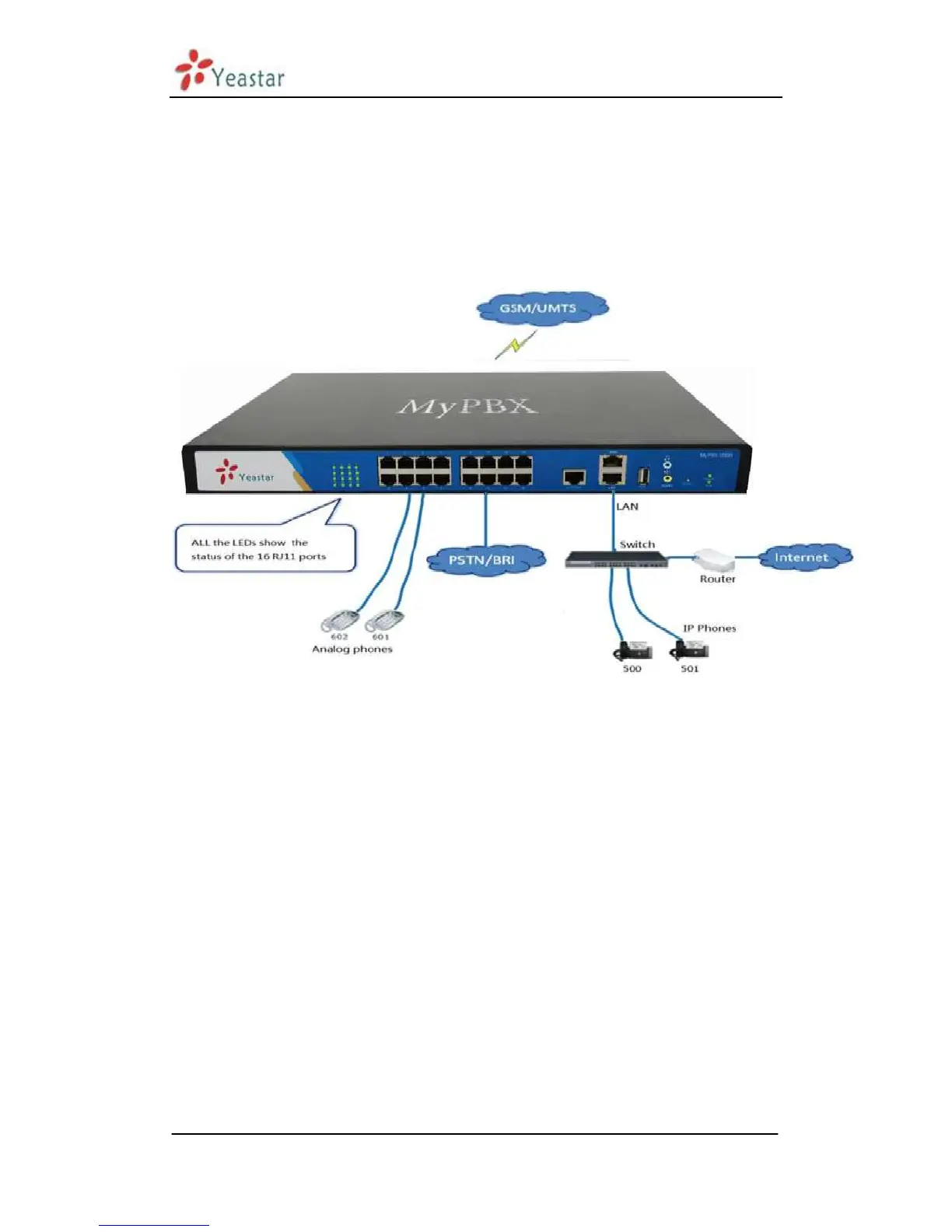

Figure 2-1
2.2 Connecting Ethernet Line
MyPBX provides two 10/100M Ethernet ports with RJ45 interface and LED
indicator. Plug Ethernet line into MyPBX‟s Ethernet port, and then connect the
other end of the Ethernet line with a hub, switch, router, LAN or WAN. Once
connected, check the status of the LED indicator. A yellow LED indicates the port
is in the connection process, and a green LED indicates the port is properly
connected.
