MyPBX U100 & U200 Installation Guide
http://www.yeastar.com 14/16

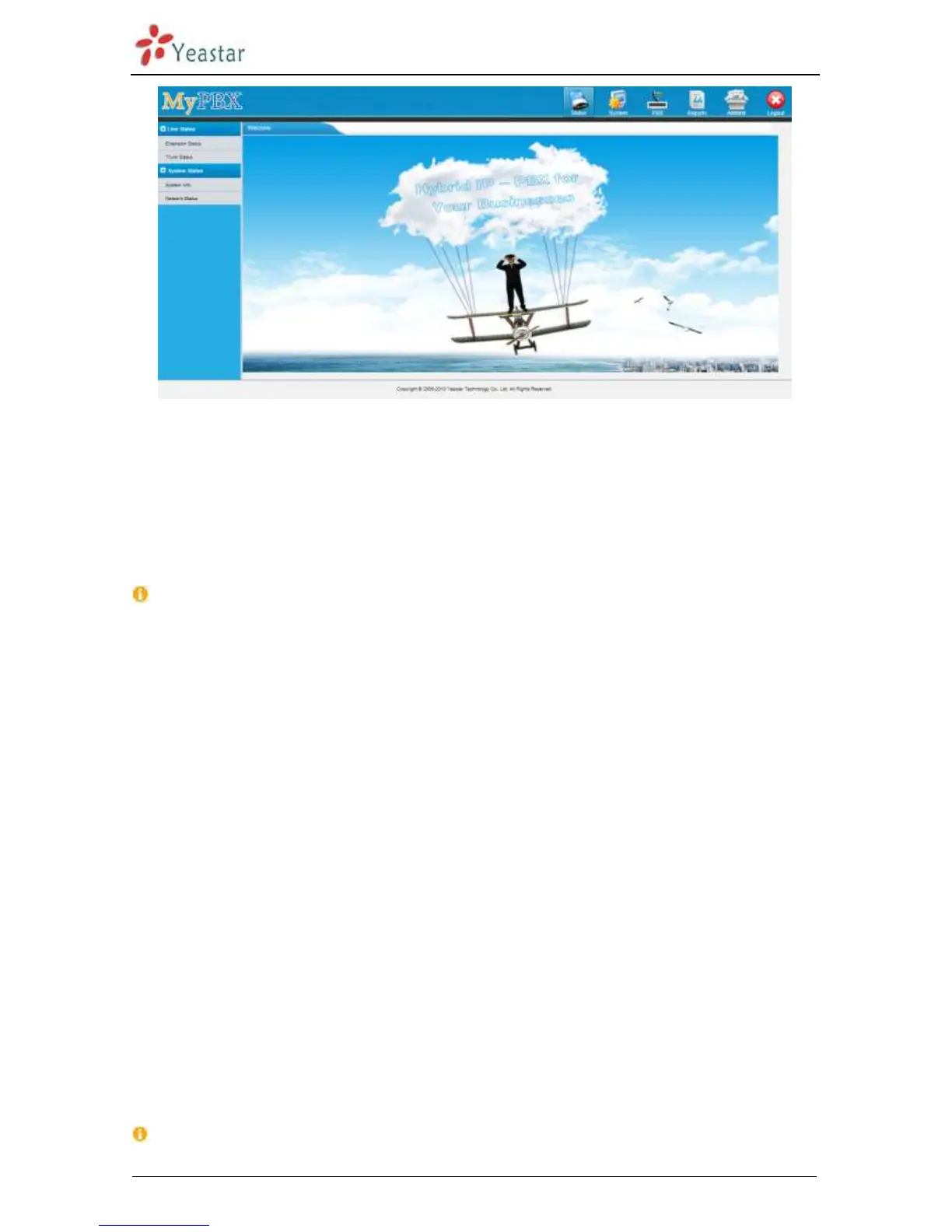

Figure 4-2 MyPBX Admin Configuration Interface
Via the configuration interface, the admin can make all the system configurations, including network settings
(LAN, WAN, Firewall, VPN, DDNS, VLAN, etc.); system parameters configuration (system prompts, time zone,
password, etc.); internal settings (Web access port, user extension range, business hours, conference room,
paging and intercom, music on Hold, etc.); inbound routes; outbound routes; user account management (add
or delete an extension account, IP restriction, features setup, etc.); extended function management (call
queue, conference room, IVR, etc.); call logs (search, download); firmware update and reset, etc.
Please note that after saving the changes, remember to click the “Apply changes” button to make the
changes take effect.
4.3 Network Settings
After logging in the admin configuration interface, generally the first step is to configure the IP address. If
both the WAN and LAN ports are connected to the network, their IP addresses need to be configured. If not,
just configuring the IP address of the LAN port which is connected to the local area network of the company
is OK.
WAN Settings
Click “Network Settings”->”WAN Settings” on the left menu bar.
1. If the network that the WAN port is connected to is using DHCP server as connection method, please
select the “DHCP” (dynamic IP) option.
2. If the network connection method is “Static IP address”, please select this option and enter the LAN
parameters (IP address, subnet mask, default gateway, DNS, etc.)
3. If MyPBX is connected to ADSL adapter directly, please select “PPPoE” option and enter the ADSL
user name and password.
LAN Settings
Click “Network Settings”->”LAN Settings” on the left menu bar of the web configuration interface. LAN
port is used for the interoperability of IP terminals and MyPBX. If the LAN port is connected to the
company’s LAN, please configure the correct IP address and corresponding subnet mask.
Please note that after changing the IP address of LAN port, MyPBX should be rebooted to make the new
changes taking effect.
