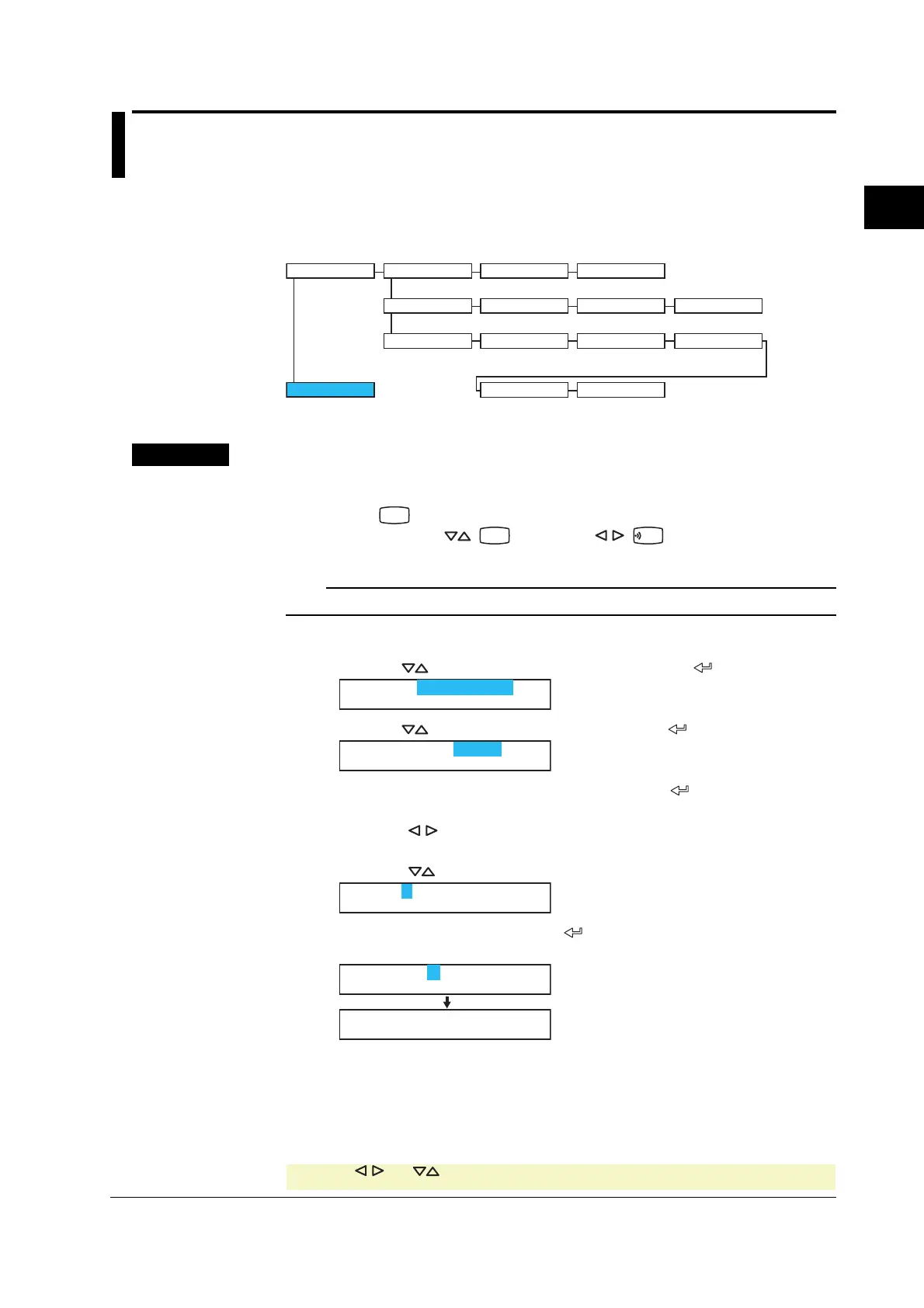

Using the Ethernet Interface (/C7 Option)
2.3 Configuring the Ethernet Interface
Set the host name and IP address of the recorder. You do not have to set the DNS
(domain name system).
Setup Items
DNS
Ethernet
End
Local IP A M
G
IP address Subnet mask
Host name Domain name
Default gateway
DNS
P
S
DNS On/Off Server
(primary)
Server
(secondary)
Host Domain
Suffix_P
Suffix_S
Domain suffix
(primary)
Domain suffix
(secondary)
Host
Procedure
For a description of the basic setup operations, see “Basic Key Operations” on page vi.
Entering Basic Setting Mode
Hold down the
MENU
key for 3 seconds to display the Setting mode screen.
Next, hold down both the (
DISP
) key and the (
FUNC
) key for 3 seconds to
display the Basic Setting mode screen.
Note
To cancel an operation, press the ESC key.
Host Name and Domain Name
1. Press the key to select Ethernet and then press the key.
Basic=Ethernet
2. Press the key to select Host and then press the key.
Ethernet=Host
3. Set the host name of the recorder and then press the key.
Key operations
• Use the key to select the digit for entering a character.
• Use the CHARACTER key to select the character type.
• Use the
key to select the character you wish to enter.
Host=
4. Set the domain name and press the key in the same fashion as in step 3.
The setting complete screen appears.
Domain=
Ethernet host
Setting complete
5. Press the ESC key to return to the higher level menu. To save the settings and
exit from Basic Setting mode, proceed to “Saving the Settings.”
* When the key, key, or key is pressed while holding down the SHIFT key,
the operation is reversed as when the respective key is pressed by itself.
CHARACTER
To Next Page
