2-11
IM 04P01B01-17E
2
Using the Ethernet Interface (/C7 Option)

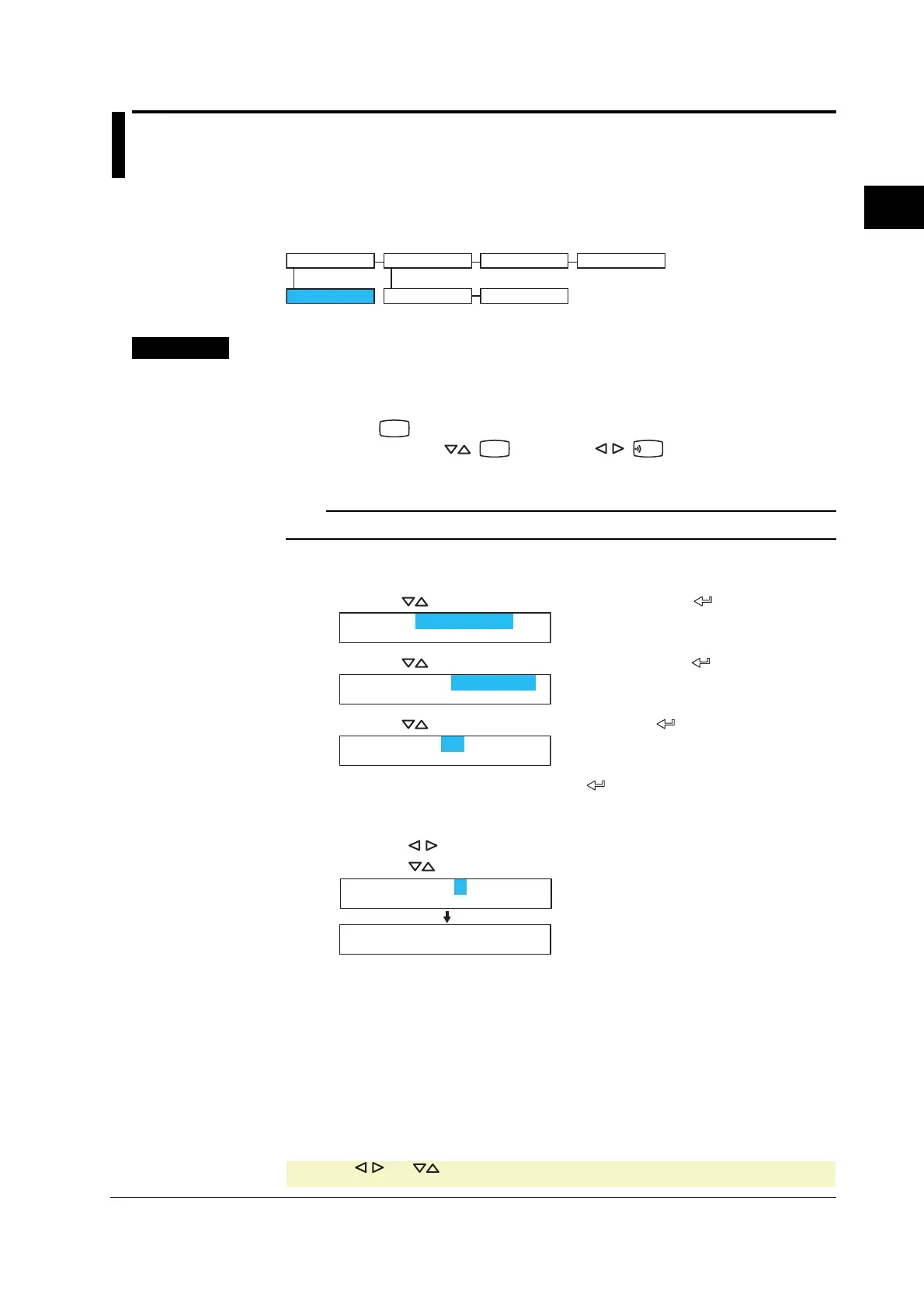

2.6 Setting the Communication Timeout and
Keepalive
The communication timeout function and the keepalive function can be configured.
Setup Items
K.Alive
Ethernet
End
Keep alive
On/Off
On/Off
Timeout
Timeout time
DurationTimeout
Procedure
For a description of the basic operations, see “Basic Key Operations” on page vi.
Entering Basic Setting Mode
Hold down the
MENU
key for 3 seconds to display the Setting mode screen.
Next, hold down both the
(
DISP
) key and the (
FUNC
) key for 3 seconds to
display the Basic Setting mode screen.
Note
To cancel an operation, press the ESC key.
Communication Timeout
1. Press the key to select Ethernet and then press the key.
Basic=Ethernet
2. Press the key to select Timeout and then press the key.
Ethernet=Timeout
3. Press the key to select On and then press the key.
Timeout=On
4. Set the timeout time and then press the key.
The setting complete screen appears.
Key operations
• Use the
key to select the digit for entering a value.
• Use the key to select the value you wish to enter.
Duration=
Ethernet timeout
Setting complete
5 Press the ESC key to return to the higher level menu. To save the settings and
exit from Basic Setting mode, proceed to “Saving the Settings.”
* When the key, key, or key is pressed while holding down the SHIFT key,
the operation is reversed as when the respective key is pressed by itself.
