Power Checker (/PC option)
The power checker feature is used to check the power of the loss-measurement light source in a
simplified manner.
The following measurement lights can be measured.
Model Measurement Wavelength
AQ1210A
AQ1215A
AQ1210E
AQ1215E
AQ1215F
AQ1216F
1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Fiber End Face Inspection (/FST option)
You can use a fiber inspection probe recommended by YOKOGAWA to take a photograph that shows
the state of a fiber end face. You can display this photograph on the instrument screen and save it. You
can also perform a pass/fail judgment on the state of the cable end face shown on the photograph.

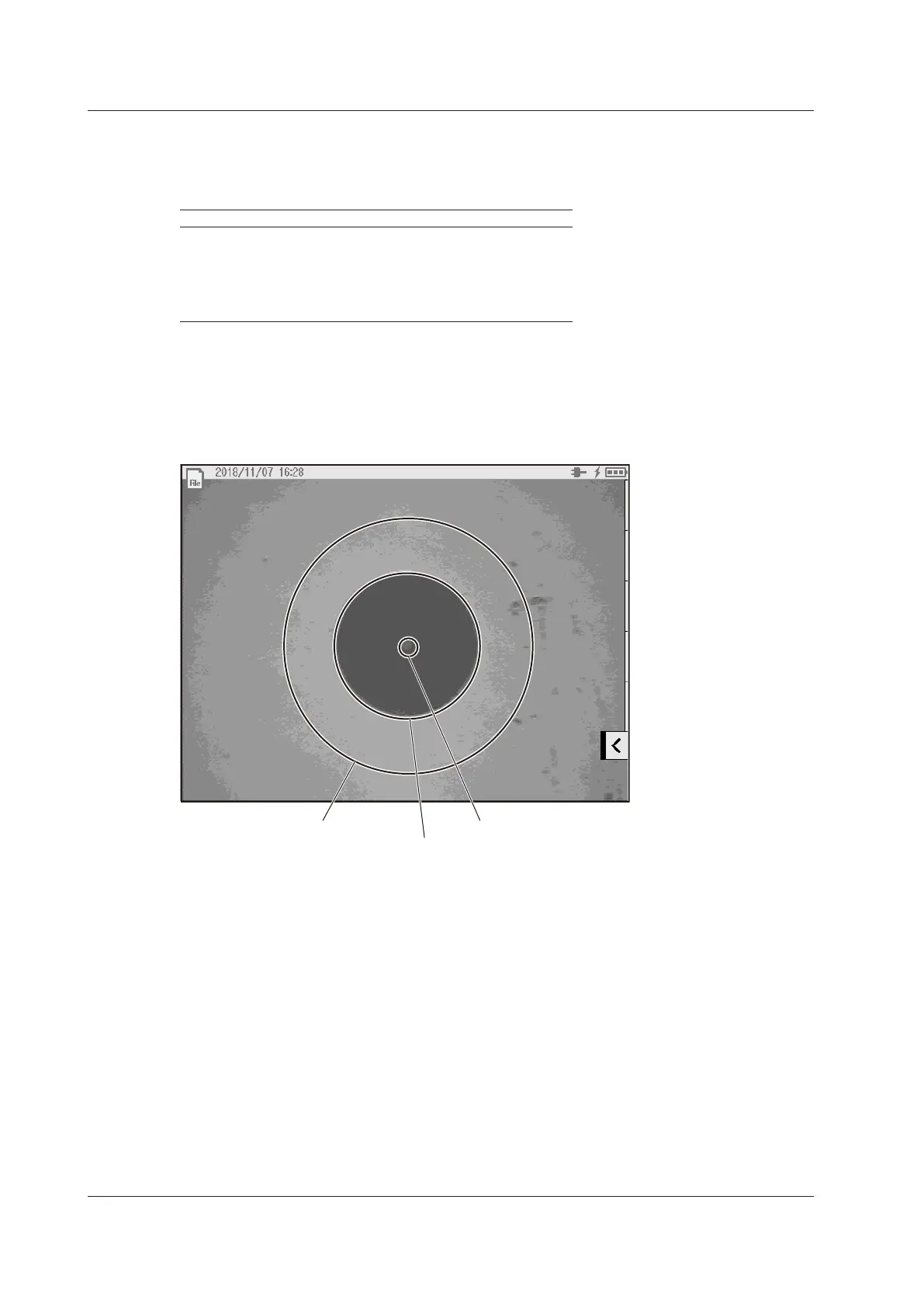

Example of an end face image of an optical fiber cable
Core area
Contact section
Pass/fail judgments can be performed separately on each of the contact areas, cladding areas, and
core areas.
