1.5 Pass/Fail Judgment (OTDR)
In pass/fail judgment, the instrument automatically determines whether preset conditions are met
based on the event analysis data and displays the results on the screen.
Judgment Conditions
Set a pass/fail judgment threshold on each measurement item (splice loss, return loss, dB/km, total
loss). When the measurement value does not exceed the threshold, the corresponding event is
indicated as pass. When the measurement value is greater than the threshold, the corresponding
event is indicated as fail.

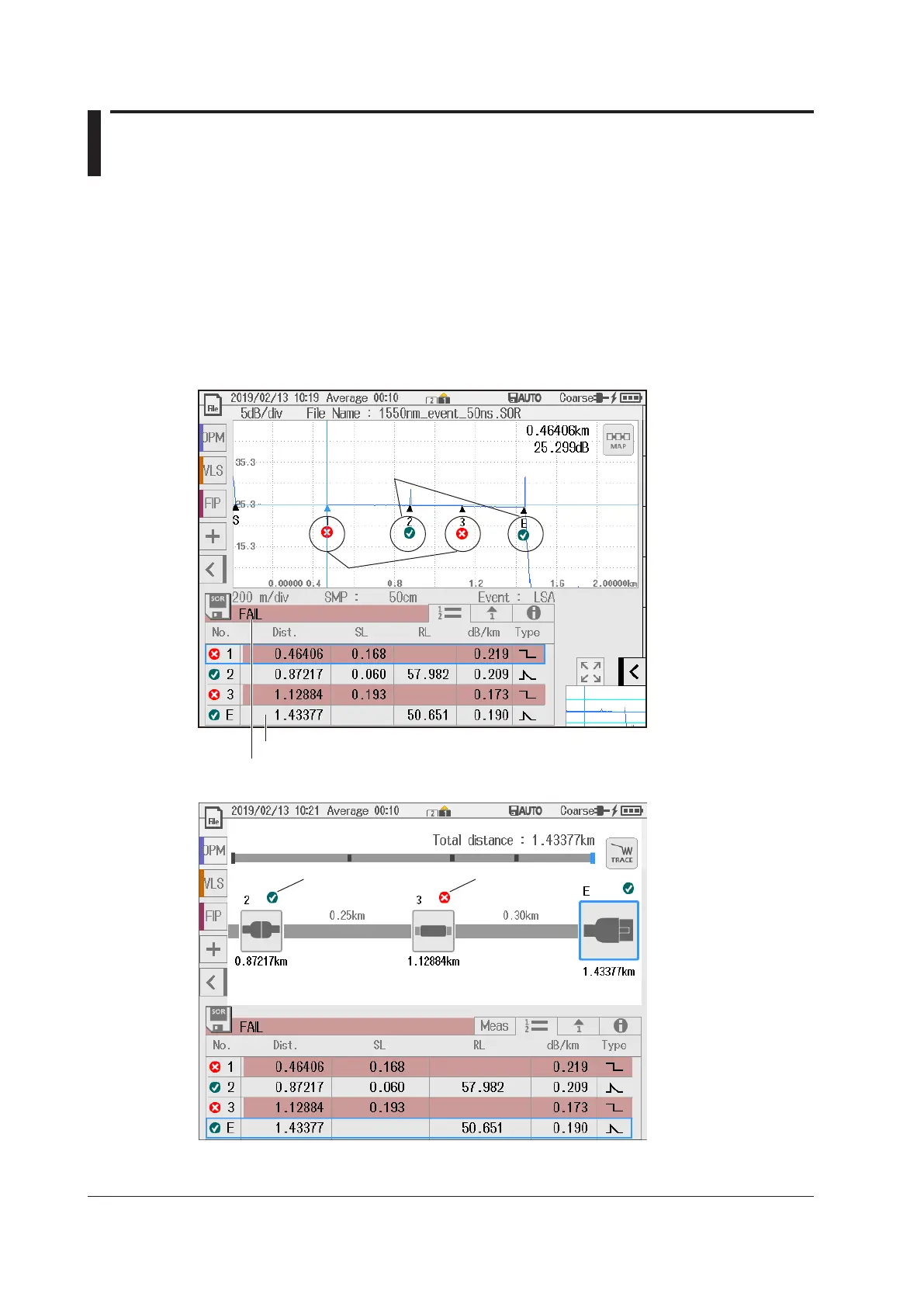

MAP mode
Fail
Pass judgment
When all events are judged as Pass, the bar turns green.
The pass judgment result and value of each event are displayed.
Pass
Fail
