6-17
IM AQ1210-01EN
Analyzing Waveforms
6

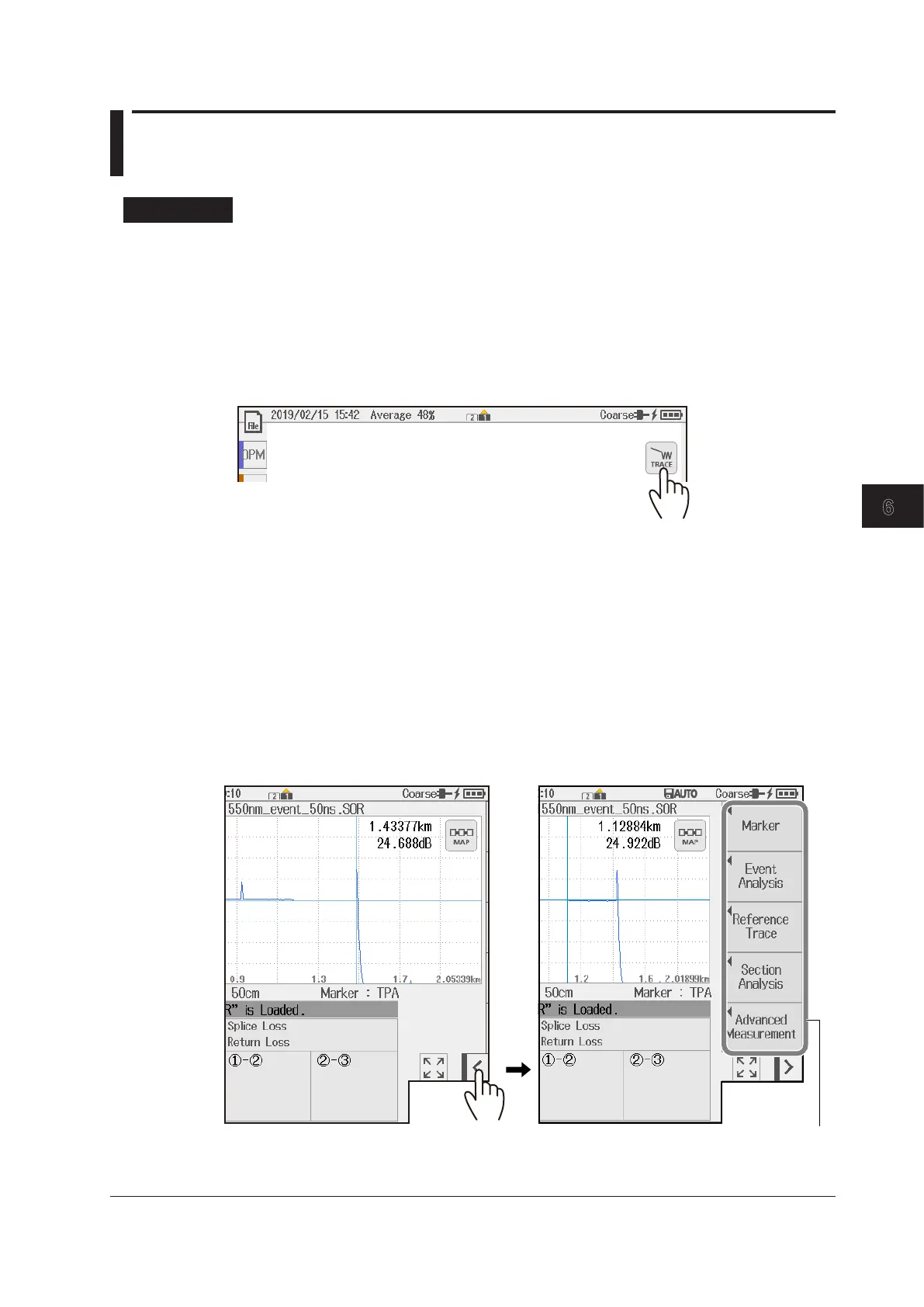

6.3 Displaying a Reference Trace
Procedure
Waveform Data Display
1.
Press MENU to display the MENU screen.
For details on the MENU screen, see the Getting Started Guide, IM AQ1210-02EN.
2.
Tap OTDR to display the OTDR screen.
• Switching the Display between TRACE Mode and MAP Mode
3.
Tap the TRACE/MAP button to set the data display screen to TRACE mode.
When the data display screen is in TRACE mode, the button is MAP.
Displaying the Reference Source Waveform
4.
Perform a measurement or load a file to display a waveform on the screen.
When performing an averaged measurement, wait for the measurement to complete. When loading a
waveform data file, use an SOR file that has been measured and saved with the instrument.
5.
If you performed a measurement, display the waveform on the screen, and then end the
measurement.
Soft Key Menu (Snapshot)
6.
Tap the soft key menu display button.
A soft key menu that can be used when real-time measurement or averaged measurement is not in
progress is displayed.
To Next Page
