1.7 Application
Smart Mapper
The Smart Mapper feature repeats the averaged measurements of the OTDR feature on the same
wavelength using different pulse widths, and then when measurements are completed, automatically
executes the event analysis of the OTDR feature.
Like the OTDR feature, when measurements are completed, you can select between MAP mode and
TRACE mode.

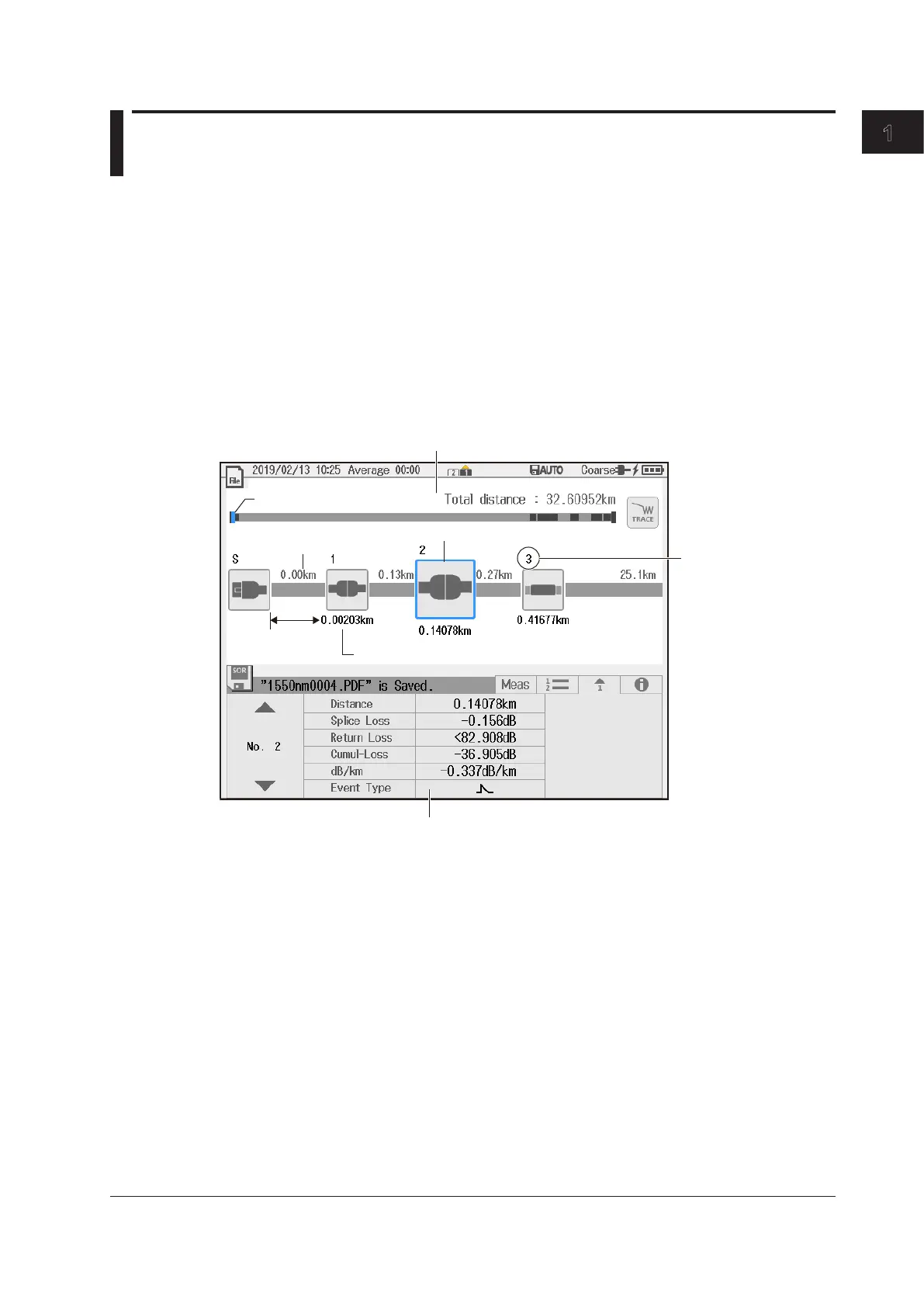

Event Analysis Using MAP Mode
When you select MAP mode, various events on the optical fiber cable path can be detected and
displayed as icons on the screen.
Relative position of the event
Distance between
events
Displays the event type with an icon
Distance from start point S
Event number
The icon display method is the same as the display
in MAP mode of event analysis in section 1.4.
Event information display
See “Event Analysis” in section 1.4.
