7.5 Using the Power Checker (/PC option)
Procedure

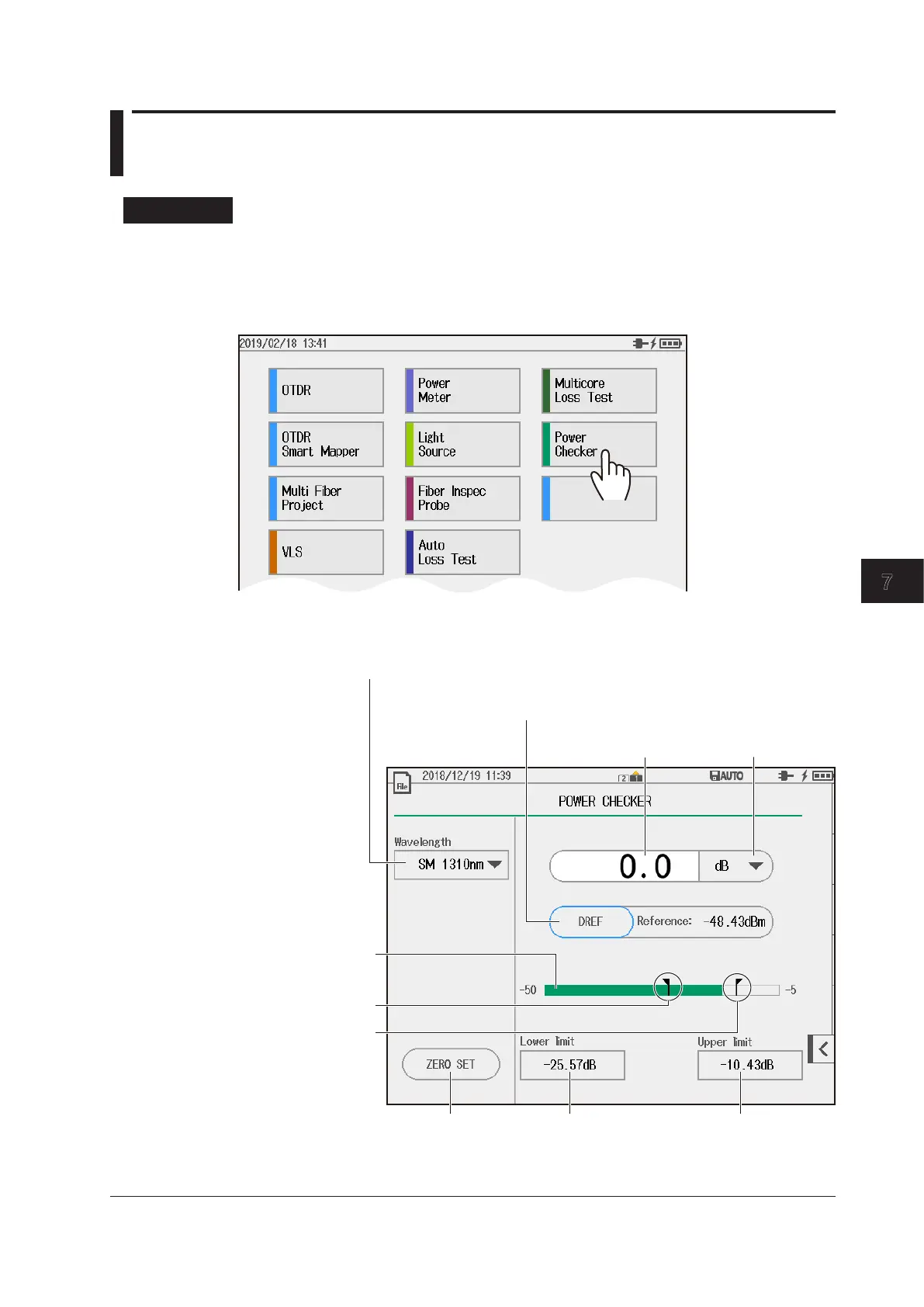

Displaying the Power Checker Screen
1.
Press MENU to display the MENU screen.
2.
Tap Power Checker to display the POWER CHECKER screen.
MENU screen
Power Checker Screen
Set the wavelength
(SM 1310nm, SM 1490nm, SM 1550nm, SM 1625nm, SM 1650nm).
Measured value
Set the unit (dBm, W).
Set the reference value (–80 to 40dBm).
The reference value appears if you press the DREF soft key or set the unit
to dB.
Performs zero set
Bar graph display of the
measured value
Line indicating the lower
threshold
Line indicating the upper
threshold
Lower threshold Upper threshold
