2.1 Measurement (Measure) Conditions
Procedure
1.
Press MENU to display the MENU screen.
For details on the MENU screen, see the Getting Started Guide, IM AQ1210-02EN.
2.
Tap OTDR to display the OTDR screen.
3.
Press SETUP to display the setup screen.
4.

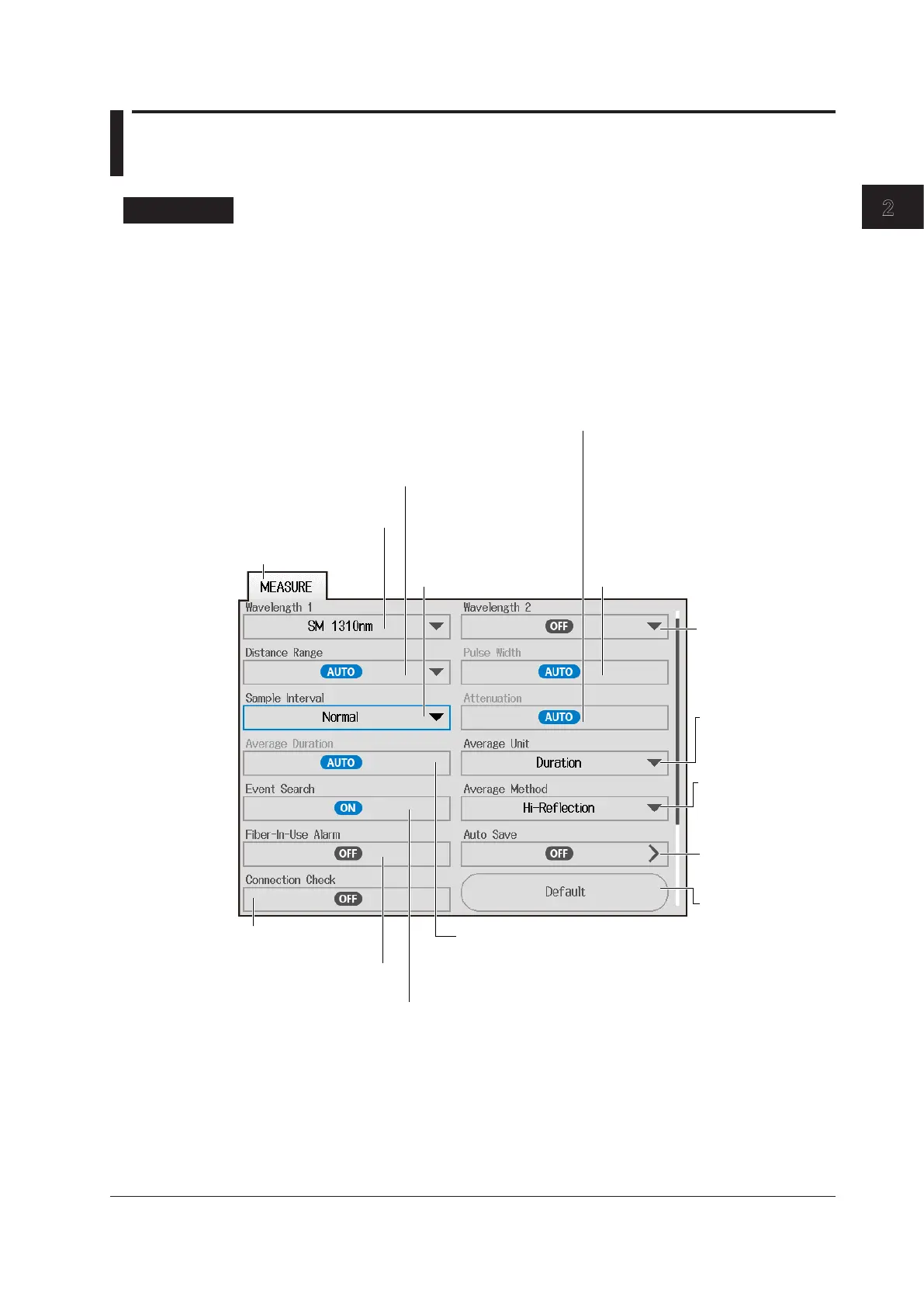

Tap the MEASURE tab to display the following screen.
Set the average duration
(when the average unit is set to Duration).
(AUTO, 5sec, 10sec, 20sec, 30sec, 1min,
3min, 5min, 10min, 20min, 30min)
Set wavelength 1 (1310nm,
1550nm, 1625nm/1650nm).
Set the distance range.
● AQ1210A, AQ1210E
(AUTO, 200m, 500m, 1km, 2km, 5km, 10km,
20km, 30km, 40km, 50km, 100km, 200km,
256km)
● AQ1215A, AQ1215E, AQ1215F, AQ1216F
(AUTO, 200m, 500m, 1km, 2km, 5km, 10km,
20km, 30km, 40km, 50km, 100km, 200km,
300km, 400km, 512km)
Set the pulse width.
● AQ1210A, AQ1210E
(AUTO, 5ns, 10ns, 20ns, 30ns,
50ns, 100ns, 200ns, 300ns, 500ns,
1μs, 2μs, 5μs, 10μs, 20μs)
● AQ1215A, AQ1215E, AQ1215F,
AQ1216F
(AUTO, 3ns, 10ns, 20ns, 30ns,
50ns, 100ns, 200ns, 300ns, 500ns,
1μs, 2μs, 5μs, 10μs, 20μs)
Set the fiber-in-use alarm
(OFF, ON).
Set auto save.
See the next
page.
MEASURE tab
Set the sample interval
(Normal, Hi-Resolution).
Set the event search (OFF, ON).
Set the
average unit
(Duration,
Times).
Set the average
method
(Hi-Speed,
Hi-Reflection).
Set the attenuation
( AUTO, 0.00dB, 2.50dB, 5.00dB,
7.50dB, 10.00dB, 12.50dB, 15.00dB,
17.50dB, 20.00dB, 22.50dB, 25.00dB,
27.50dB, 30.00dB).
Set wavelength 2
(OFF,
1310nm/1550nm).
Initializes the
measurement
settings
Set the connection
check (OFF, ON).
Set the average times
(when the average unit is set to Times).
(AUTO, 2^10, 2^11, 2^12, 2^13, 2^14, 2^15,
2^16, 2^17, 2^18, 2^19, 2^20)
Chapter 2 Setting Up the OTDR Feature
