YOKOGAWA AQ1215A User Manual

2-13
IM AQ1210-01EN
Setting Up the OTDR Feature
1
2
3
4
5
6
7
8
9
10
11
App
Index
2.3 Display (OTDR) Conditions
Procedure
1.
Press MENU to display the MENU screen.
For details on the MENU screen, see the Getting Started Guide, IM AQ1210-02EN.
2.
Tap OTDR to display the OTDR screen.
3.
Press SETUP to display the setup screen.
4.

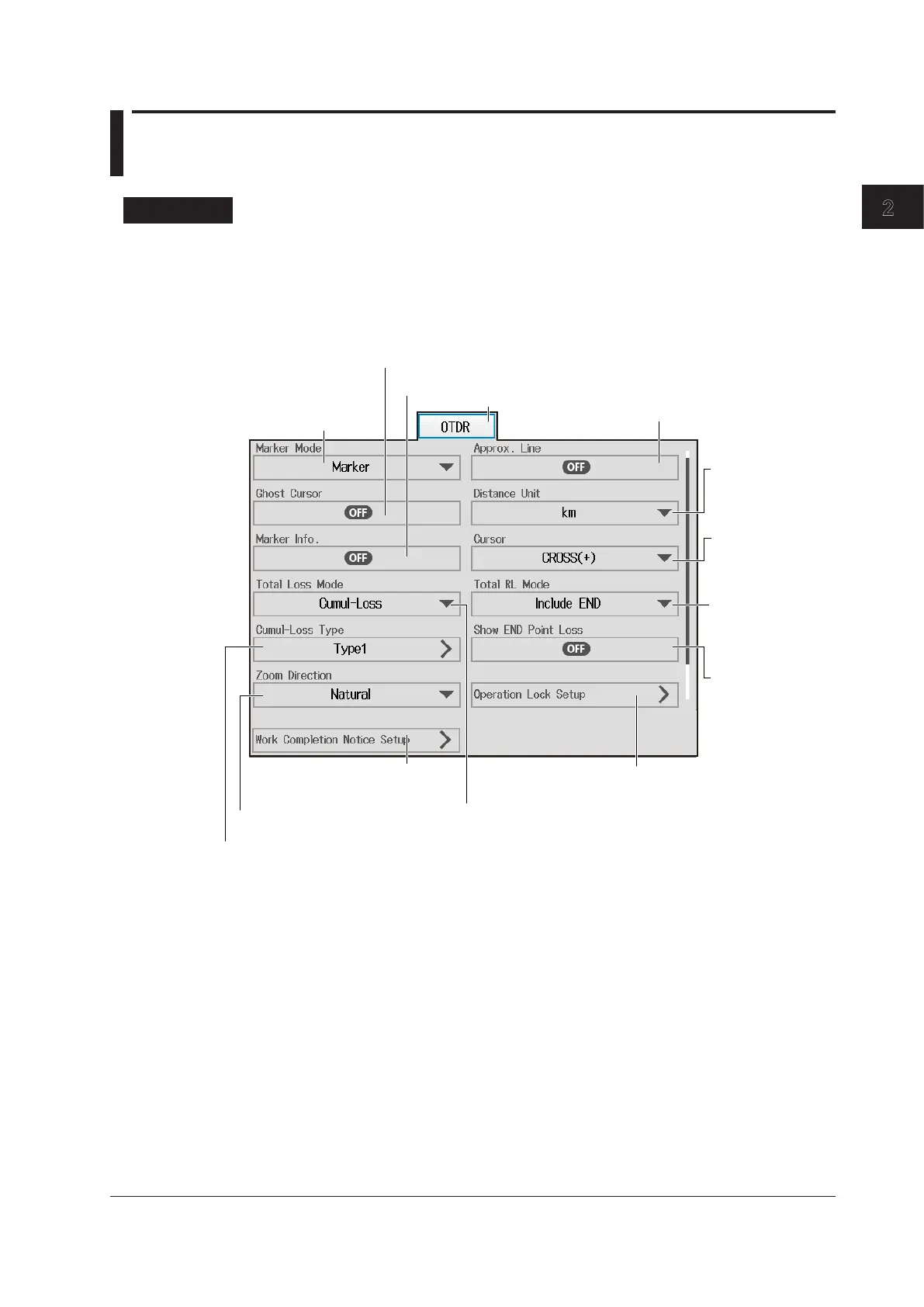

Tap the OTDR tab to display the following screen.
Set the total loss calculation method
(Cumul-Loss, Loss between S and E).
Set the ghost cursor
(OFF, ON).
Set the marker mode
(Marker, Line).
Set the distance
unit.
Not displayed when
the suffix code is -HJ.
OTDR tab
Marker information display
(OFF, ON)
Set the total
return loss
(Include END,
Exclude END).
Set the end point
loss display (OFF,
ON).
Select the Cursor
display format
(CROSS(+), LINE(¦ ))
Approximation line display
(OFF, ON)
Set the cumulative loss type.
See page 2-14.
Set the screen zoom direction
(Natural, Legacy).
Set operation restrictions.
See page 2-14.
Set the work completion notice.
See page 2-15.
