1-2
IM AQ1210-01EN

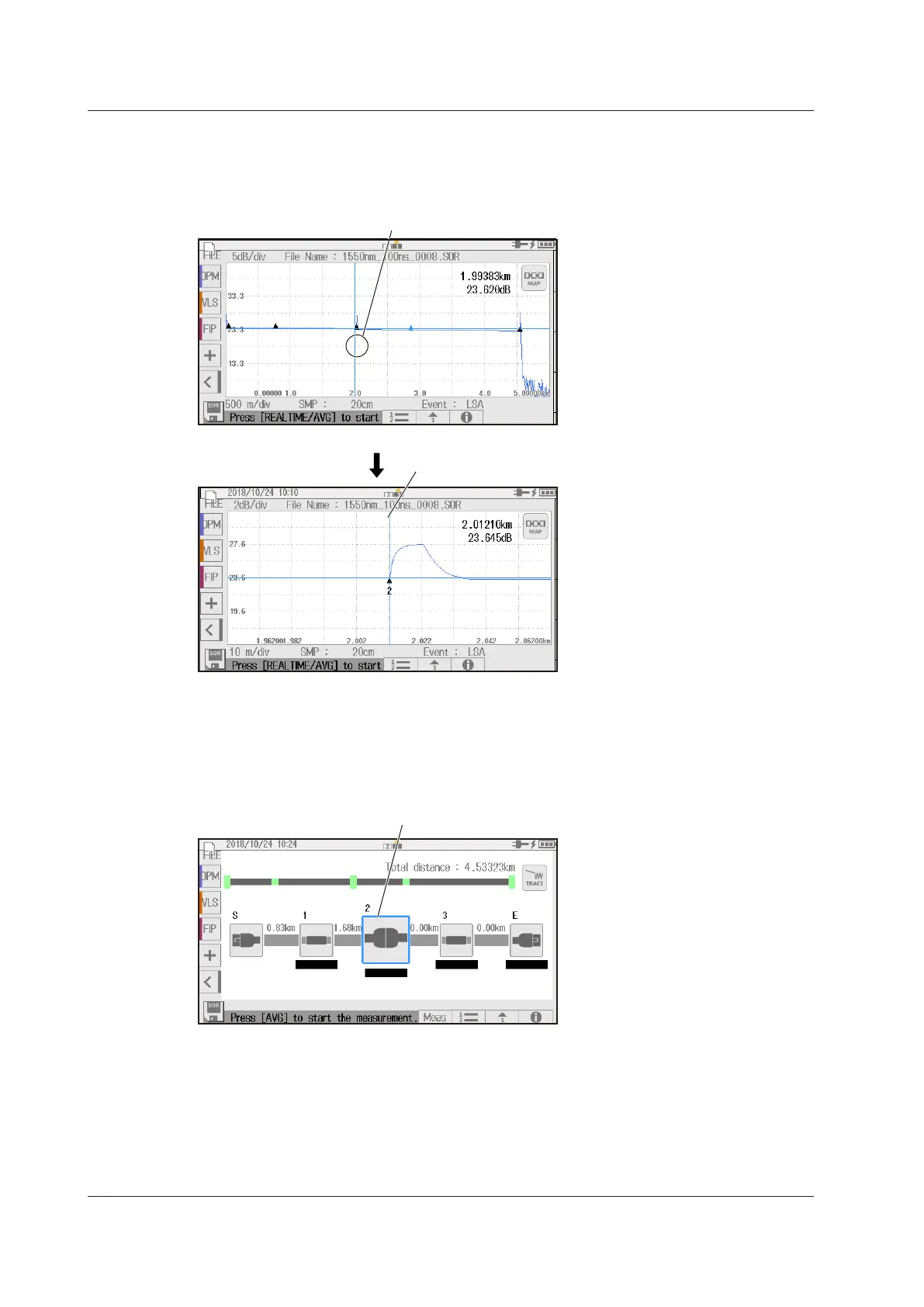

Optical Pulse Waveform Display (TRACE mode)
The results of optical pulse measurement is displayed as a waveform. The displayed waveform can
be zoomed and moved.
Analysis results are displayed on
the waveform as events.
Zoom the waveform at the cursor position
Event Icon Display (MAP mode)
The instrument can perform an averaged measurement and then automatically display the
measured result events as icons on the screen. In addition, if pass/fail judgment conditions are
specified, judgment results are displayed with icon colors. For details on the pass/fail judgment
function, see section 1.5.
Analysis results are displayed as icons.
Optical Pulse Analysis
• Waveform Analysis
The following events can be analyzed using cursors and markers.
• Distance
• Splice loss
• Return loss
Return loss between markers can be analyzed.
1.1 Overview
