3. Cabling
3-54
TI 33J01J10-01EN

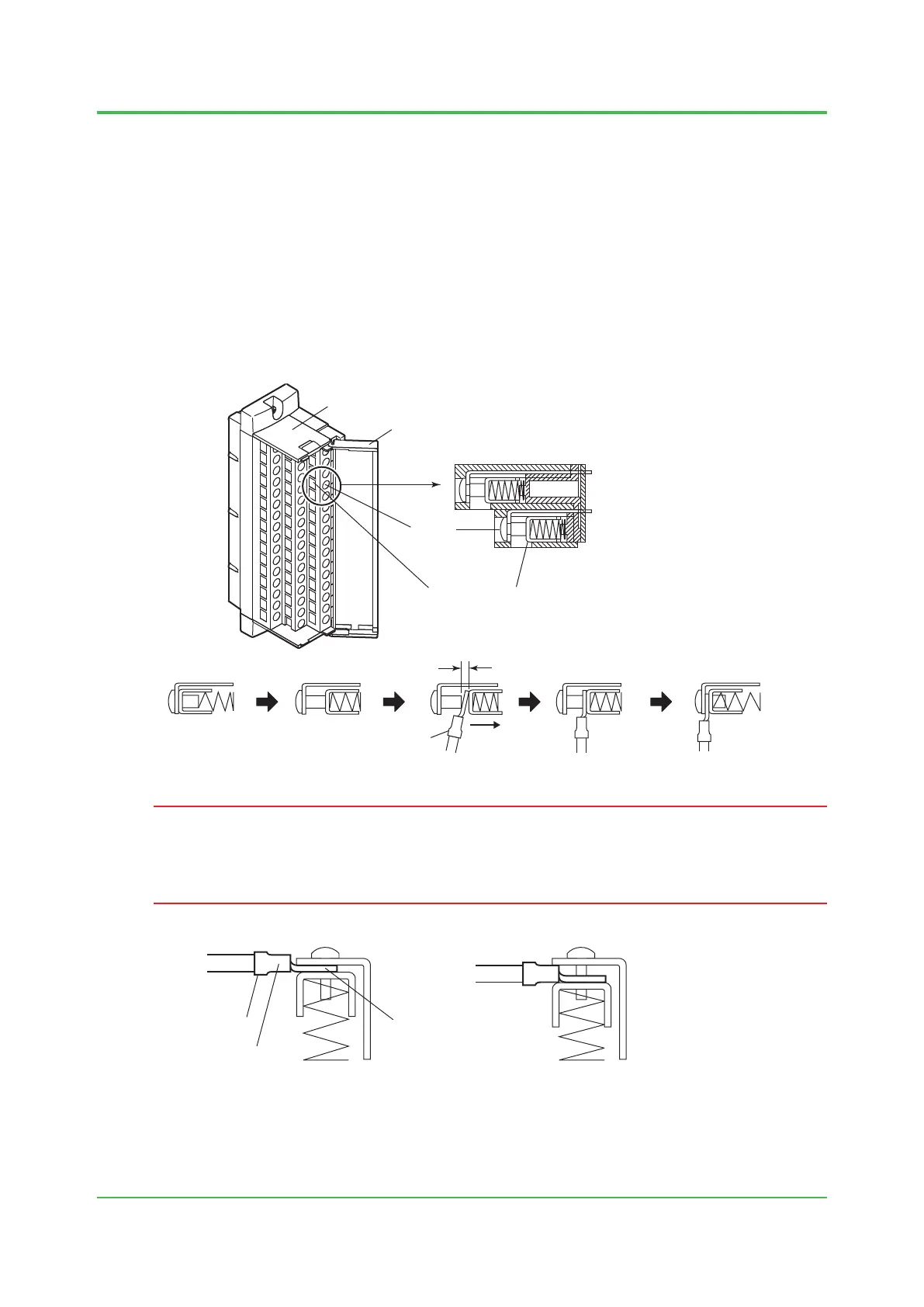

lConnecting Signal Cables to Terminals (for RIO System Upgrade)

 
2. Loosen the terminal screws.
3. Insert the tip of the cable’s solderless contact between the screw and the spring retainer,
and press the retainer to make a gap of about 2 mm between them.
4. Insert the solderless contact further in the gap until the screw enters in the hole of the
solderless contact.
5. Tighten the terminal screw.
 
F030519.ai
Terminal Block
Cover
Screw
Spring retainer
Approx. 2 mm
Screw loosened Solderless
contact tentatively
held in position
Solderless
contact
clamped
Initial state
Soldeless
contact
Push
IMPORTANT
 
 
F030518.ai
Correct clamping Incorrect clamping
Solderless lug
Sleeve
Ring
Figure Connect Clamping of Solderless Lug
Oct. 5, 2018-00

YOKOGAWA Centum VP Specifications

General

System Type	Distributed Control System (DCS)
Architecture	Client-Server
Control Network	Vnet/IP
Controller Type	FCS (Field Control Station)
Programming Languages	Function Block Diagram (FBD), Sequential Function Chart (SFC), Ladder Diagram (LD), Structured Text (ST)
Operating System	Real-time OS (for Controllers)
Redundancy	Controller, Communication Network, Power Supply
I/O Modules	Analog I/O, Digital I/O
Communication Protocols	Modbus, OPC, Foundation Fieldbus, Profibus, HART
Scalability	From small to large applications
Security	User Authentication, Authorization, Audit Trail
Integration Capabilities	OPC UA, Modbus, Ethernet/IP
