YOKOGAWA Centum VP User Manual

3. Cabling
3-48
TI 33J01J10-01EN

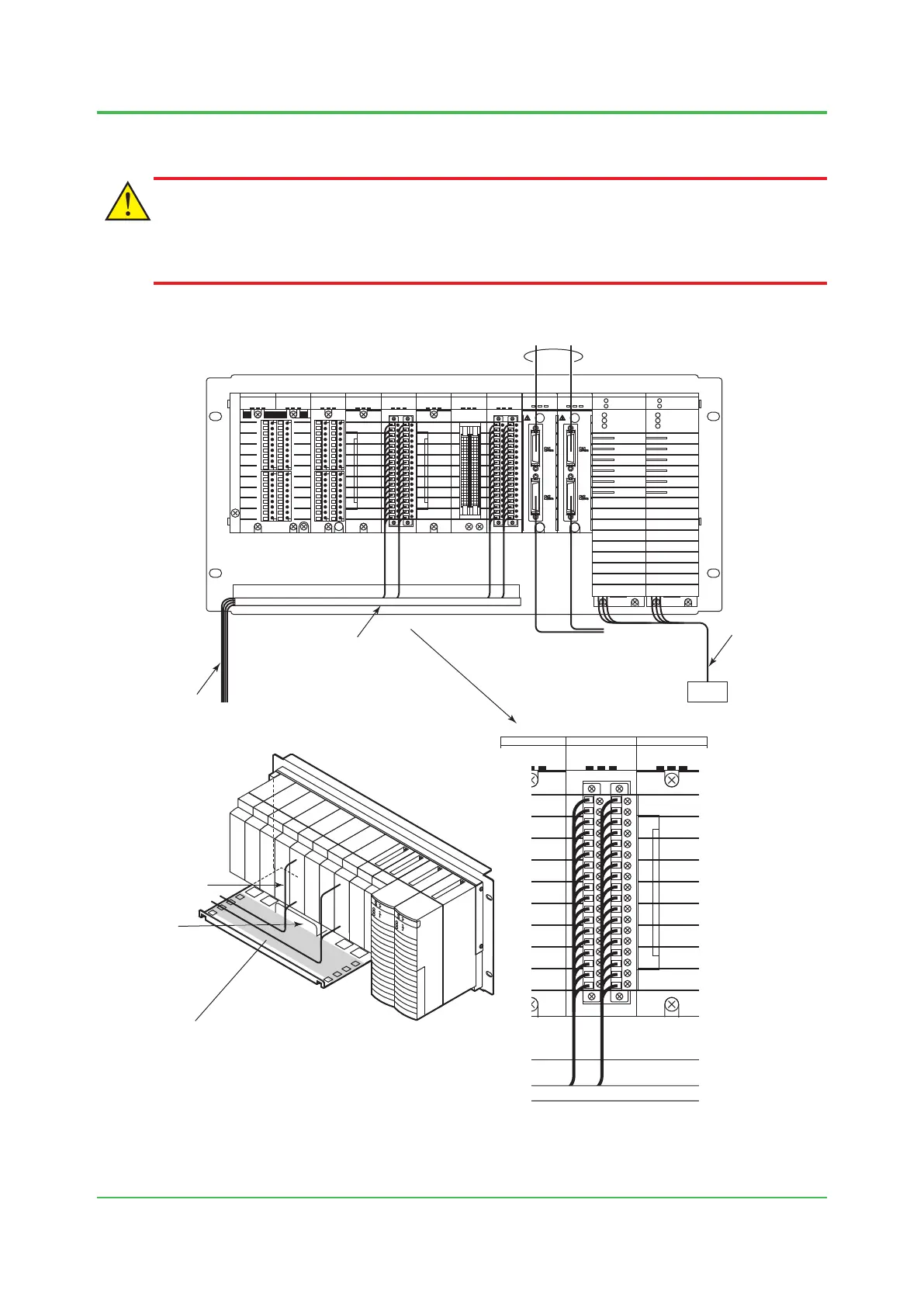

l AFV30S/AFV30D, ANB10S/ANB10D Wiring
CAUTION

center of cable tray.
The following shows a dual-redundant ESB bus example.
F030506.ai
Power
Power cable
ANB10D
ESB bus cable
Signal cable
Cable tray
Magnified
To ensure the airflow route around I/O modules
the signal cables over the tray should be kept away
from the ventilation opening of the tray.
Therefore, the cables should not be laid over the
ventilation openings of the tray.
Signal Cable
Separator
Figure ANB10D Wiring
Oct. 5, 2018-00

YOKOGAWA Centum VP Specifications

General

System Type	Distributed Control System (DCS)
Architecture	Client-Server
Control Network	Vnet/IP
Controller Type	FCS (Field Control Station)
Programming Languages	Function Block Diagram (FBD), Sequential Function Chart (SFC), Ladder Diagram (LD), Structured Text (ST)
Operating System	Real-time OS (for Controllers)
Redundancy	Controller, Communication Network, Power Supply
I/O Modules	Analog I/O, Digital I/O
Communication Protocols	Modbus, OPC, Foundation Fieldbus, Profibus, HART
Scalability	From small to large applications
Security	User Authentication, Authorization, Audit Trail
Integration Capabilities	OPC UA, Modbus, Ethernet/IP
