3. Cabling

3-56

TI 33J01J10-01EN

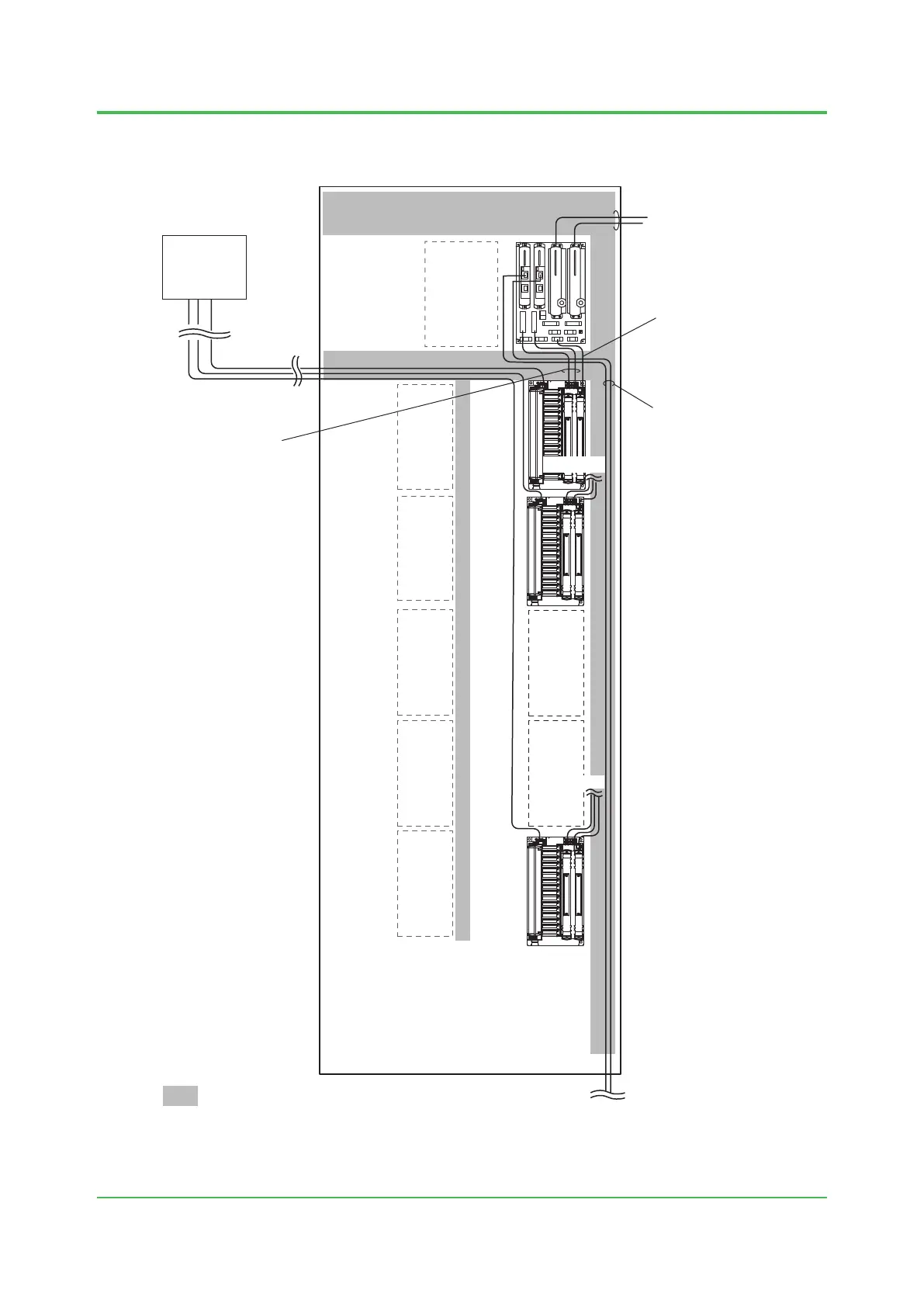

l Example of Node Interface Unit A2NN30D and I/O Unit cable wiring (Cabinet)

Cable for

field power supply

F-SB bus cable

Cabinet

NIU

A2NN30D

N-ESB

bus cable

Optical ESB

bus cable

Cable for Base Plate

Power Supply

Cable

: System Wiring Area

From NIU

F030514.ai

Field

Power Supply

Figure Example of Node Interface Unit and I/O Unit Cable Wiring (Cabinet)

Oct. 5, 2018-00
