YOKOGAWA Centum VP - FIO Node Unit Wiring in FCU with Cabinet

3. Cabling
3-46
TI 33J01J10-01EN

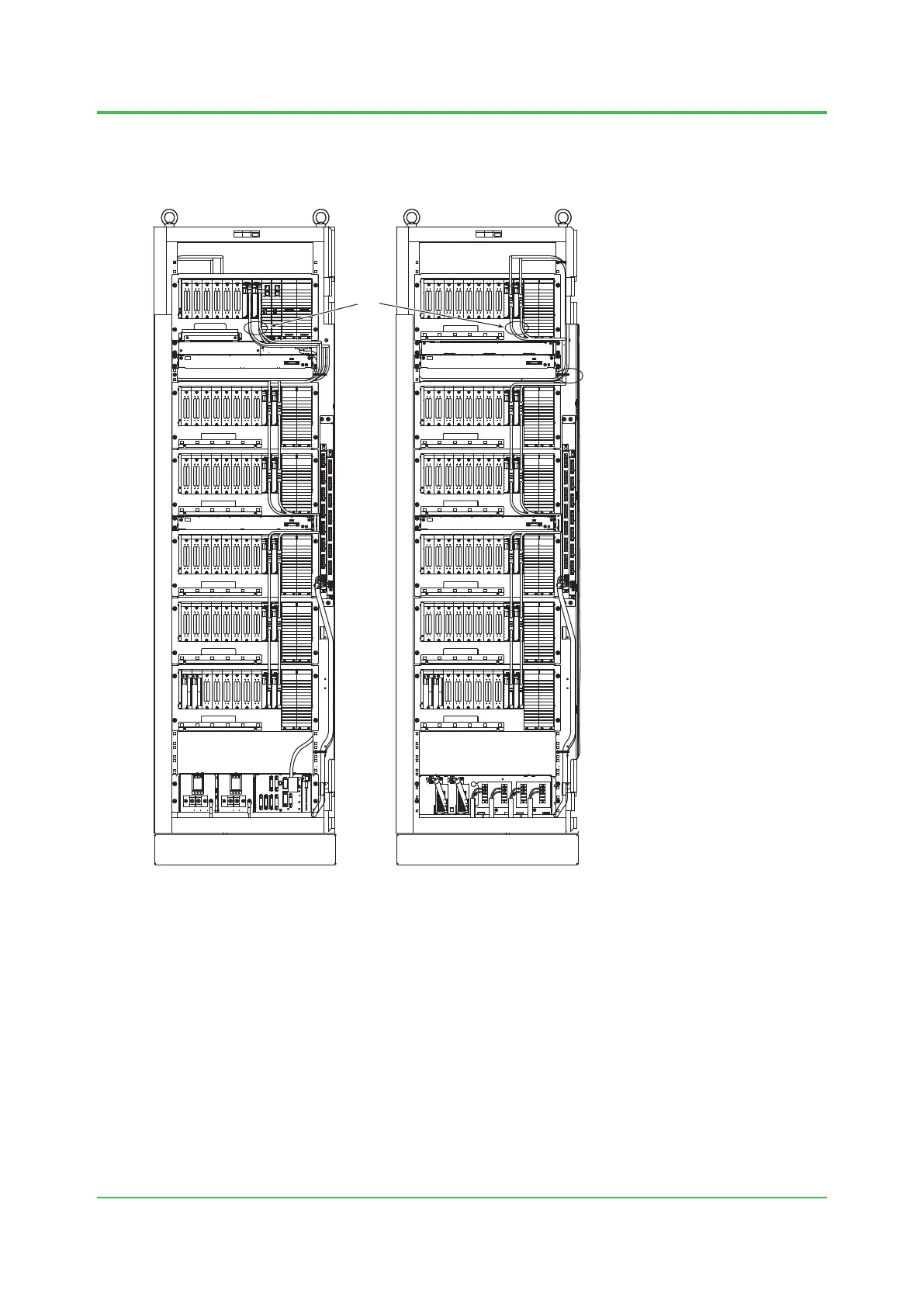

l FIO Node Unit Wiring in FCU with Cabinet

F030504.ai
ESB bus
cable
Front Rear
Figure FIO Node Unit Wiring in FCU with Cabinet
