2.3 Ethernet Interface Connection
Connection Procedure
Connect a UTP (Unshielded Twisted-Pair) or STP (Shielded Twisted-Pair) cable that is connected to
a hub or other network device to the Ethernet port on the DLM4000 rear panel.

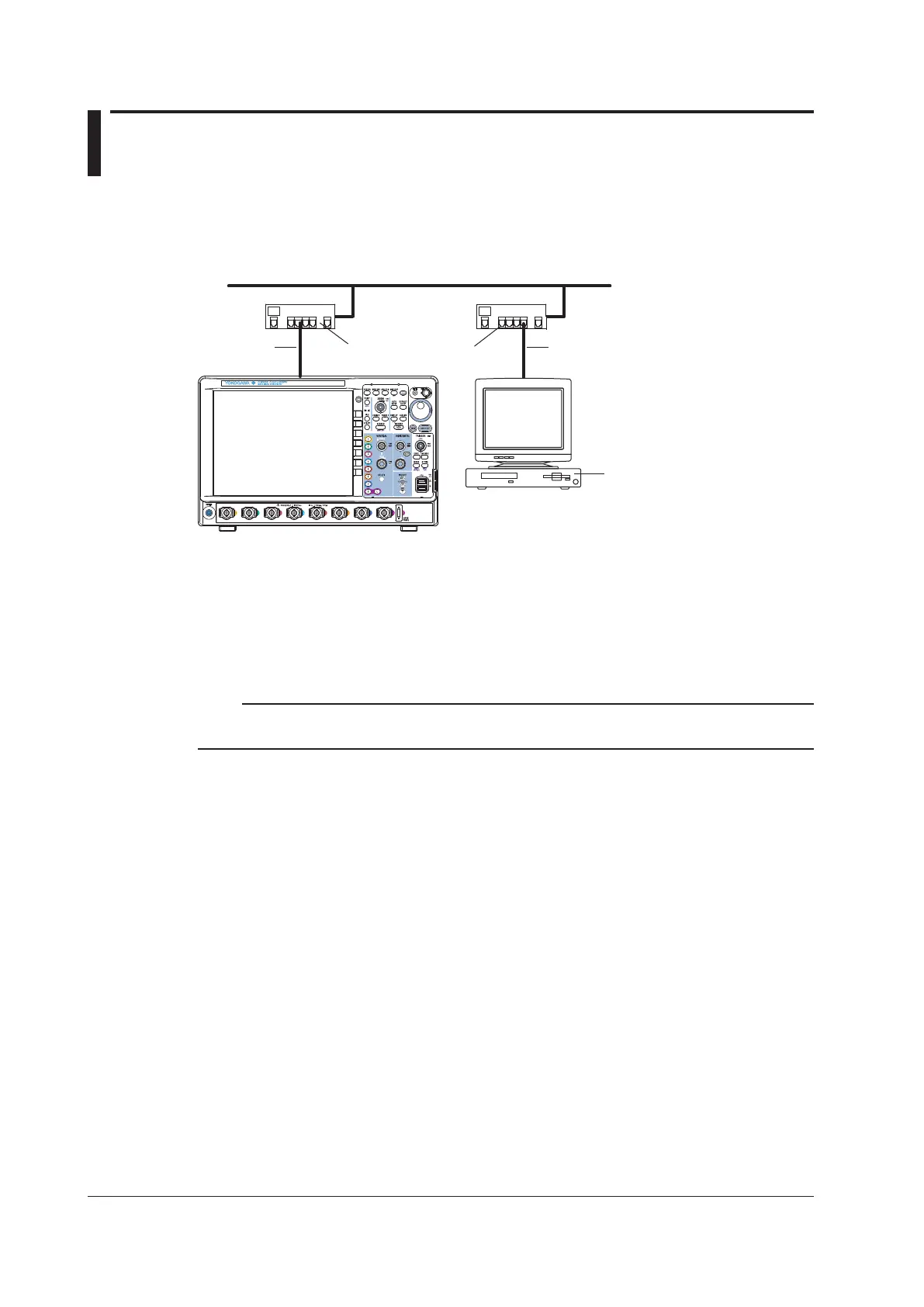

* Straight UTP or STP cable
Network card
Ethernet
PC
Hub or router that
supports 1000BASE-T
*
*
DLM4000
Notes about Connections
To connect the DLM4000 to a PC, be sure to use straight cables and to connect through a hub or
router. Proper operation is not guaranteed for a one-to-one connection using a cross cable.
Use a network cable that conforms to the transfer speed of your network.
Note
For details on how to connect the DLM4000 to a network, see section 18.1, “Connecting the DLM4000 to a
Network” in the DLM4000 Series User’s Manual (IM DLM4038-02EN).
