2.4 Configuring the DLM4000 Network Settings
This section explains the settings listed below. You must configure these settings when controlling
the DLM4000 remotely through a ethernet interface.
• Communication interface
• Connecting to the network (Mode)
• Timeout of the network
Opening the Remote Control Menu

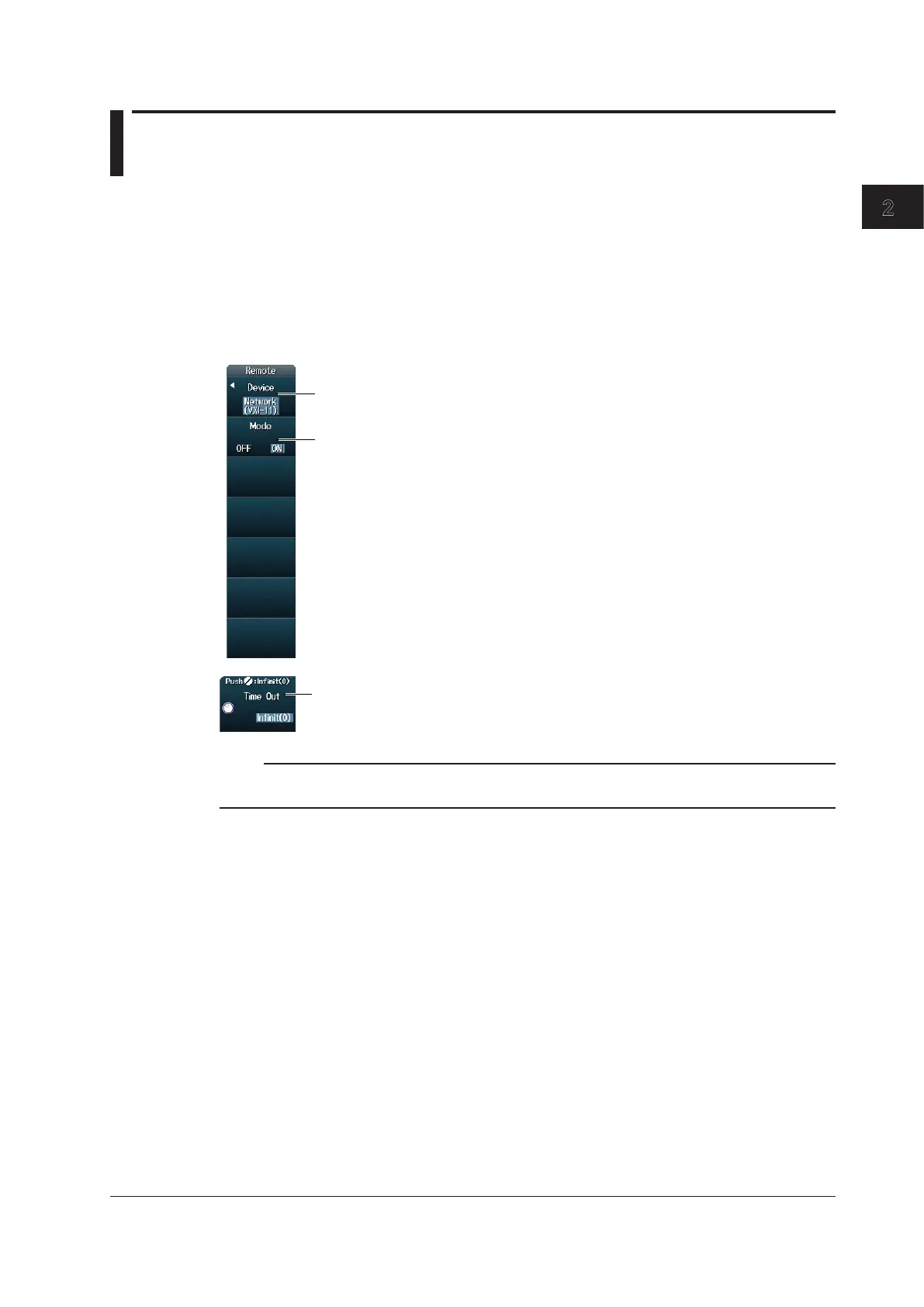

Press UTILITY, and then press the Remote Control soft key to open the menu shown below.
Set the communication interface to Network(VXI-11)
Set the timeout
Set the Mode to ON
Note
Only use the selected communication interface. If you send commands simultaneously from another
communication interface that has not been selected, the DLM4000 will not execute the commands properly.
Configuring TCP/IP Settings
To use the Ethernet interface features, you must specify the following TCP/IP settings.
• IP address
• Subnet mask
• Default gateway
For instructions on how to specify these settings, see section 18.2, “Configuring TCP/IP Settings” in
the DLM4000 Series User’s Manual (IM DLM4038-02EN).
