YOKOGAWA F3CU04-0S User Manual

C2-23
IM 34M06H62-02E 2nd Edition : June 2008-00
C2.5 Analog Output
The analog output function is available only with F3CU04-1S.
If an output terminal is not used as a control output, it may be configured for an analog
output (4-20 mA).
To configure an output terminal for analog output, set its corresponding bit in the Output
Type Selection (OUTPUT) parameter to 1 (Analog Output), and set the corresponding
Output Terminal Selection (OUTSELn) parameter (n = 1-8) to an integer ranging from 21
to 28 corresponding to AOUT1-8. To output a desired analog output level (4-20 mA), set
the corresponding Output Preset Value (AOUTn) parameter (n = 1-8) to the desired
value.
0 10050
4
20
0
Output preset value (%)

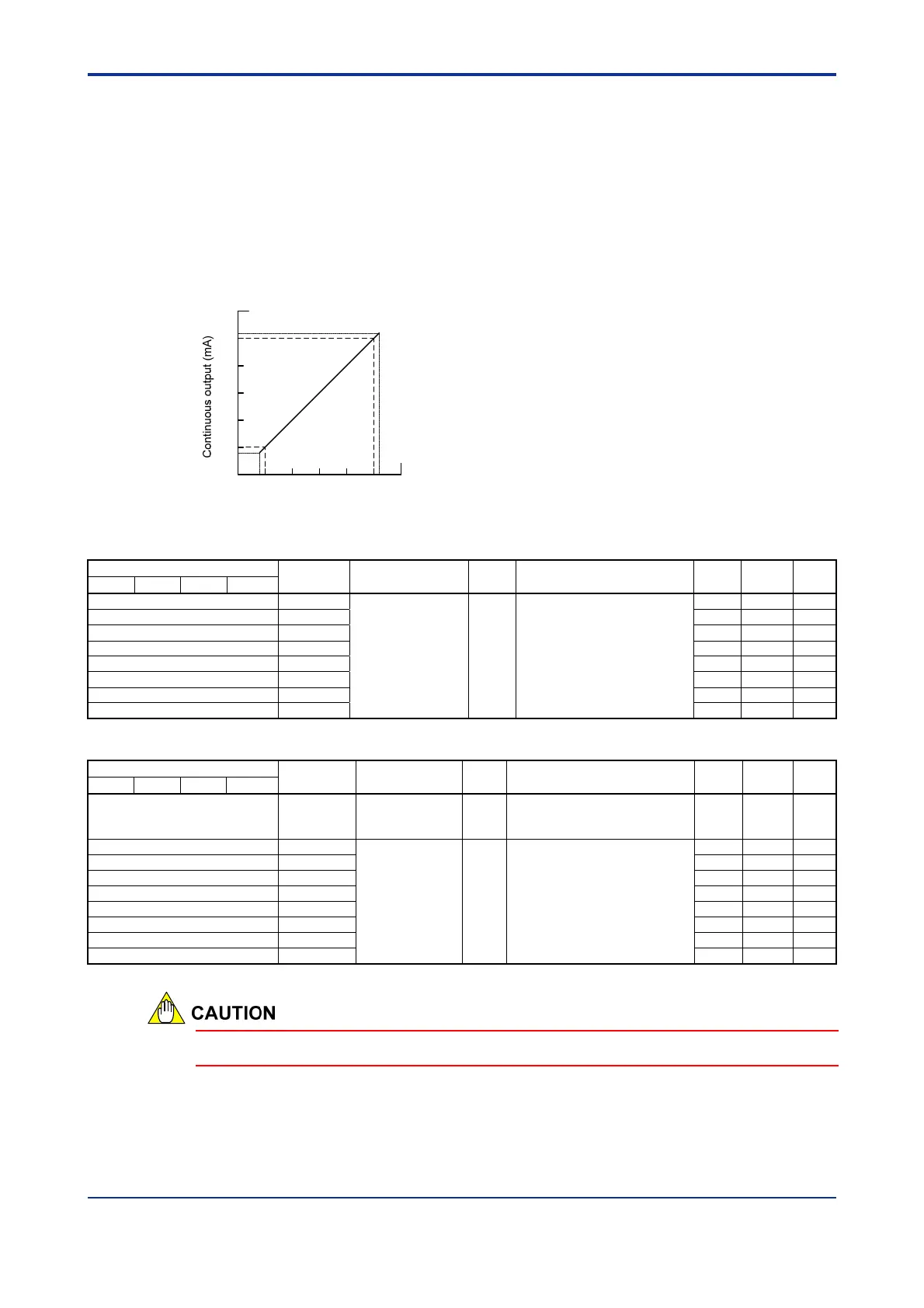

Figure C2.14 Relationship between Output Preset Value and Continuous Current Output
Table C2.21 Parameters Related to Analog Output (1/2)
Data Position Number
Symbol Description Unit Data Range
Default
Value
Attribute
Stored
Loop 1 Loop 2 Loop 3 Loop 4
61 AOUT1
Output preset value %
-500 to 10500
(-5.00 to 105.00%)
0 RW —
62 AOUT2 0 RW —
63 AOUT3 0 RW —
64 AOUT4 0 RW —
65 AOUT5 0 RW —
66 AOUT6 0 RW —
67 AOUT7 0 RW —
68 AOUT8 0 RW —
Table C2.21 Parameters Related to Analog Output (2/2)
Data Position Number
Symbol Description Unit
Data Range
Default
Value
Attribute
Stored
Loop 1 Loop 2 Loop 3 Loop 4
87 OUTPUT
Output type
selection
None
Either open collector or analog
output may be selected for each
terminal.
0 RW 
91 OUTSEL1
Output terminal
selection
None
1 to 4: Heating output 1-4
11 to 14: Cooling output 1-4
21 to 28: Output preset value 1-8
1 RW 
92 OUTSEL2 2 RW 
93 OUTSEL3 3 RW 
94 OUTSEL4 4 RW 
95 OUTSEL5 11 RW 
96 OUTSEL6 12 RW 
97 OUTSEL7 13 RW 
98 OUTSEL8 14 RW 
The analog output function is available only with F3CU04-1S.
