B3-1
IM 34M06H62-02E 2nd Edition : June 2008-00
B3. Setup and Operation
The module is provided with multiple built-in controller functions to support
various forms of operations. Before you can use the module, you must select and
configure the controller functions. This chapter describes the basic workflow from
setup to operation.
For details on individual functions, see Part C, “Function Description”.
For details on module access, use Chapter B1, “Accessing the Module.”

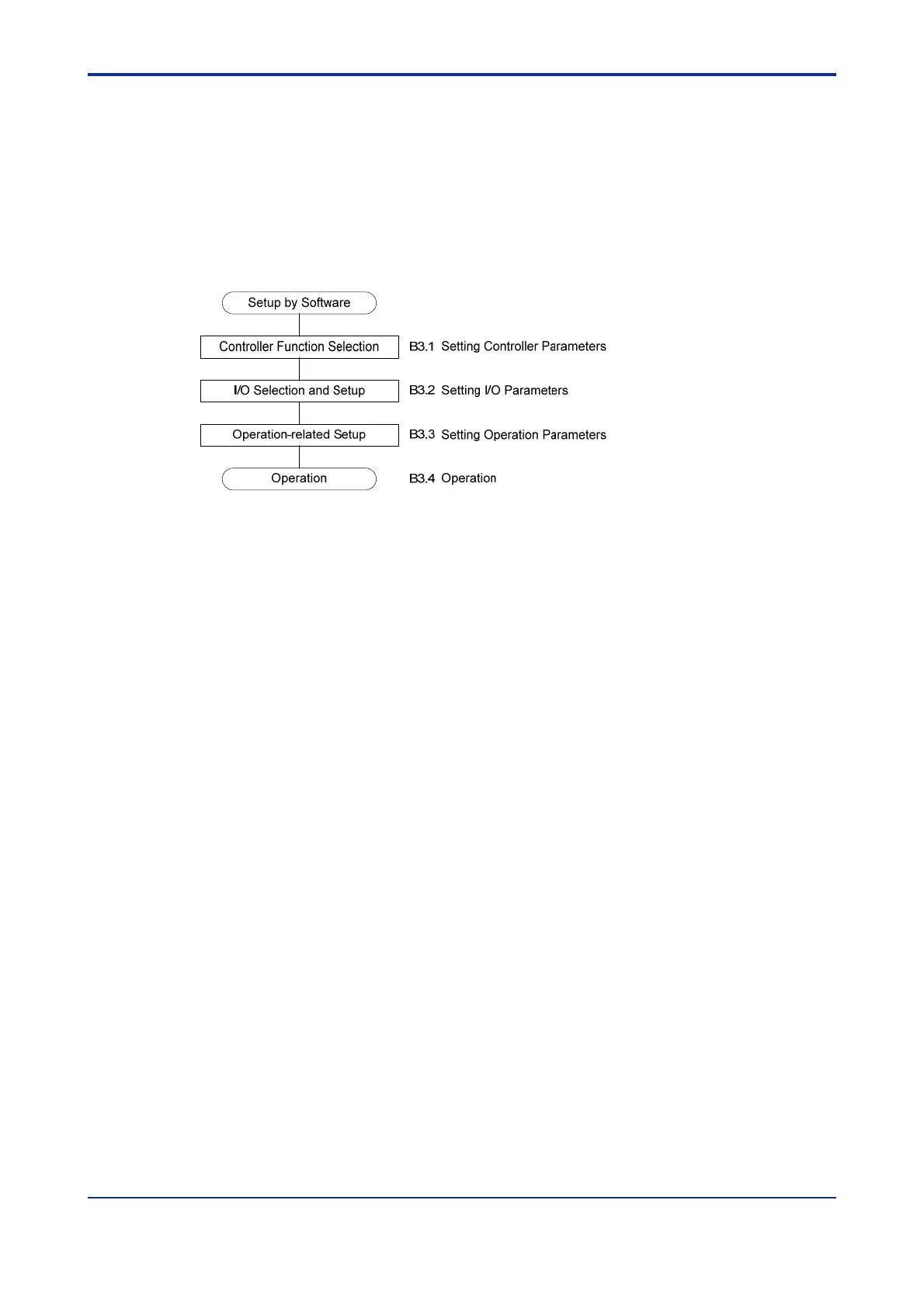

Figure B3.1 Procedure from Setup to Operation
Figure B3.1 shows the procedure flow from setup to operation. Updating a
parameter may inadvertently affect (initialize) other parameters, and thus it is
important that you perform setup in the sequence described above.
Section B3.1, “Setting Controller Parameters” describes how to combine loops to
match a specific usage and perform other module-wide setup. Section B3.2,
“Setting I/O Parameters” describes how to set up basic I/O-related elements, such
as input type selection and input range for individual loops. Section B3.3, “Setting
Operation Parameters” describes the operation-related parameters, as well as how
to start the auto-tuning function (when dynamic auto-tuning is not selected).
Lastly, Section B3.4, “Operation” describes operation-related procedures.
To Next Page
