B2-5
IM 34M06H62-02E 2nd Edition : June 2008-00
B2.2.2 Analog Output Settings
These are parameters available only for F3CU04-1S. They can be used to specify an
analog continuous output of a specific value (4-20 mA) for any output terminal not used
for controlled output.

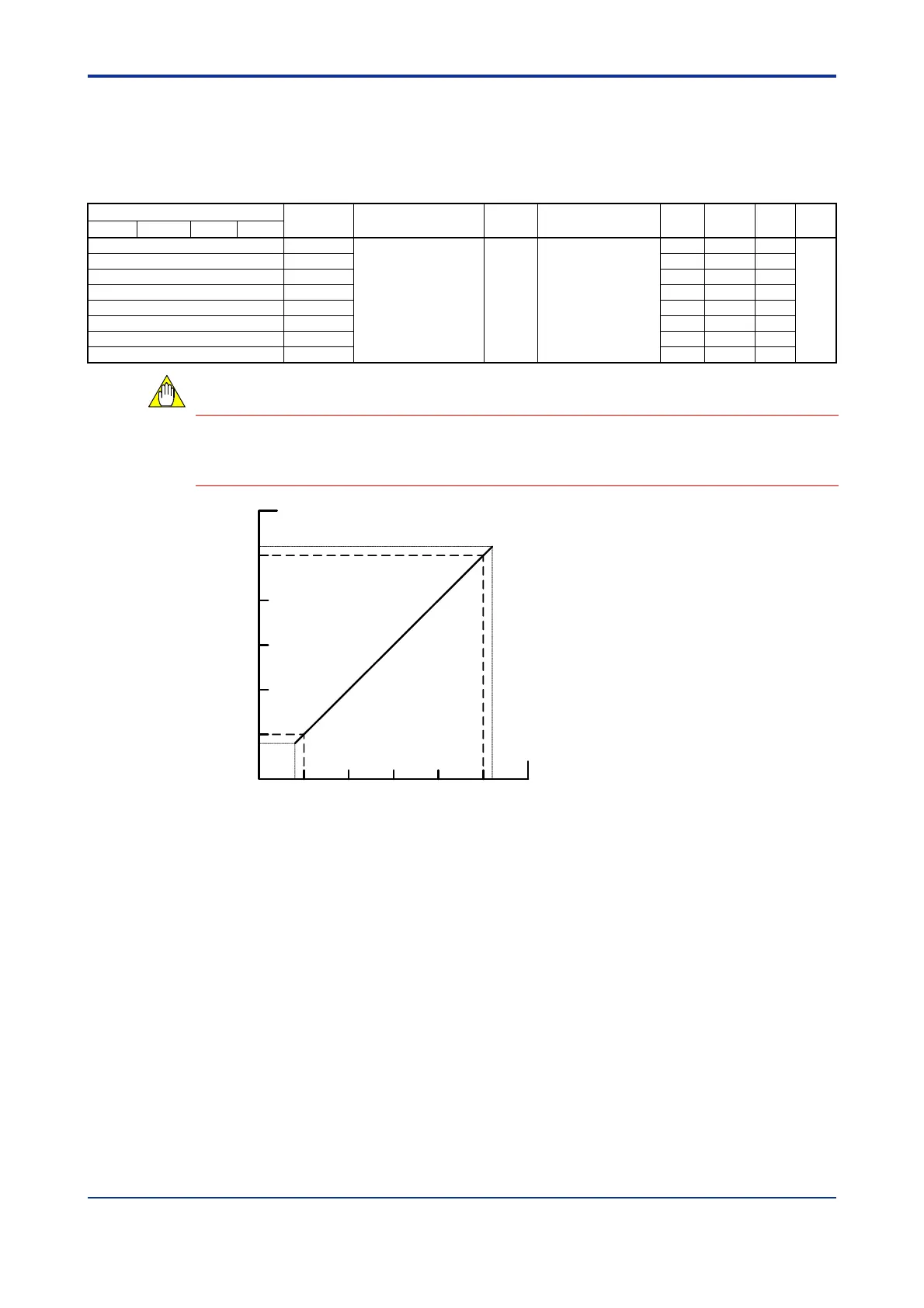

Table B2.4 Analog Output Setting Parameters
Data Position Number
Symbol Description Unit Data Range
Default
Value
Attribute
Stored
See
Also
Loop 1 Loop 2 Loop 3 Loop 4
61 AOUT1
Output preset value %
-500 to 10500
(-5.00 to 105.00%)
0 RW —
C2.5
62 AOUT2 0 RW —
63 AOUT3 0 RW —
64 AOUT4 0 RW —
65 AOUT5 0 RW —
66 AOUT6 0 RW —
67 AOUT7 0 RW —
68 AOUT8 0 RW —
This function is available only for F3CU04-1S. An Output Terminal Selection
(OUTSEL1-8) parameter must be setup to output an output preset value specified here
(see Section B2.2.7, "Controller Parameters").
0 10050
4
20
0
Output preset value (%)
Continuous output (mA)
Figure B2.1 Relationship between Output Preset Value and Control Output
CAUTION
To Next Page
