This sample program writes the following parameter values sequentially, and then
enables these values.
- Controller parameters:
Power frequency selection = 60 Hz
- I/O parameters:
input type selection for loop1 = Type K -200 to 1000C (I/O type settings)
input type selection for loop2 = Type K -200 to 500C (I/O type settings)
input type selection for loop3 = DC voltage 1-5 V (I/O type settings)
input type selection for loop4 = DC voltage 0-5 V (I/O type settings)
RL and RH for loop1 = 0C for RL, 1000C for RH (input range settings)
RL and RH for loop2 = 0C for RL, 500C for RH (input range settings)
RL and RH for loop4 = 0 V for RL, 2 V for RH (input range settings)
SL and SH for loop3 = 0 for SL, 20000 for SH (input range settings)
SL and SH for loop4 = 0 for SL, 10000 for SH (input range settings)
- Operation parameters:
PID parameter for loops 1-4 = file register values
For the I/O parameters, the sample program first sets up the I/O types and then the input
ranges.

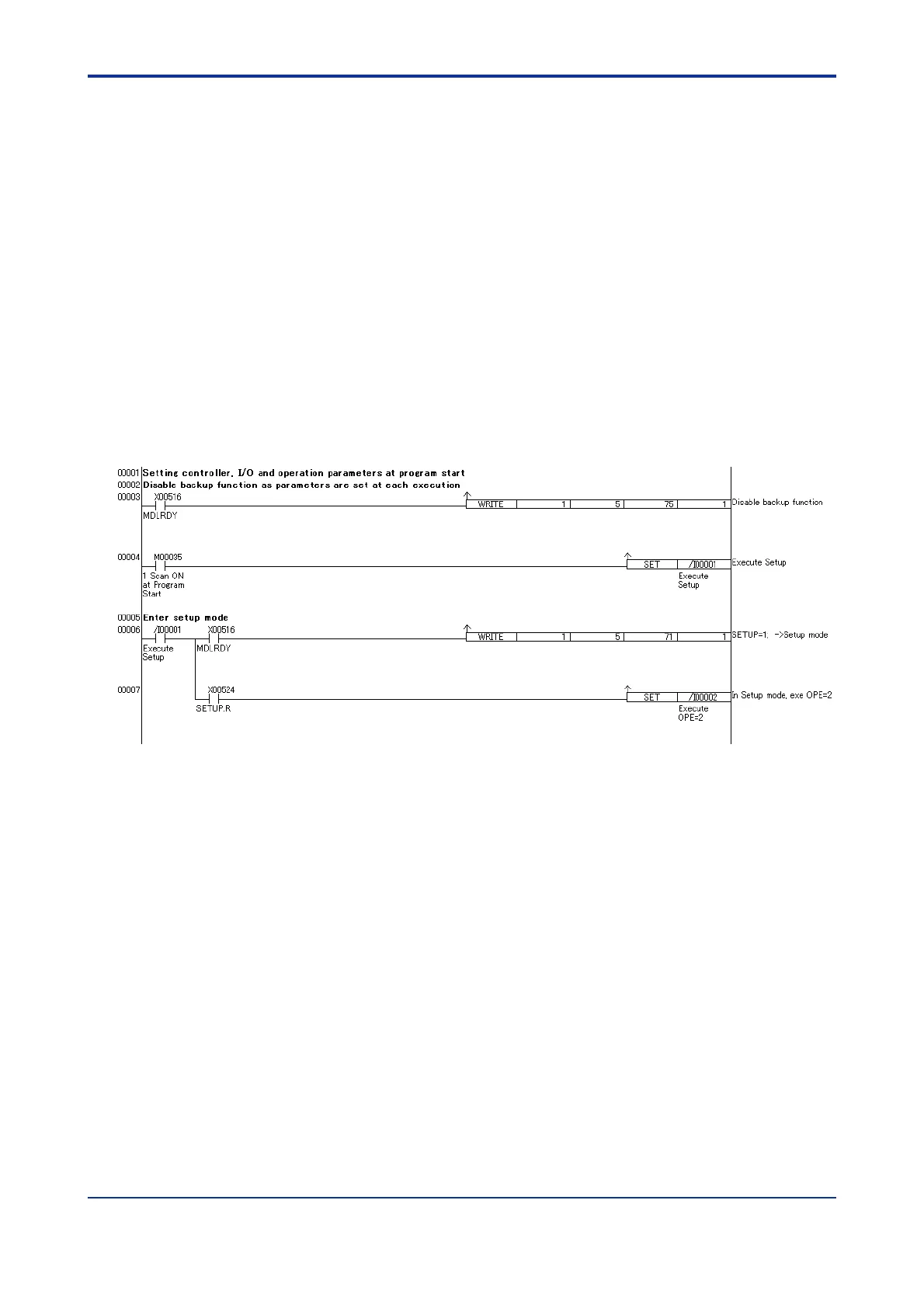

Figure B2.4 Sample Program for Setting Controller and I/O Parameters (1/6)
