2.4 Mounting, Removing, and Charging the Battery Pack (/EB option)
2-11
IM MT300-02EN
1
2
3
4
5
6
App
Index
• Pour toute information sur le transport aérien des batteries au lithium-ion, consulter les
exigences énoncées dans le Règlement de l’IATA sur le transport des marchandises
dangereuses (Section II pour les batteries au lithium).
ATTENTION
Le pack de batteries pèse environ 500 g. Éviter de le laisser tomber sur les doigts ou les
orteils.

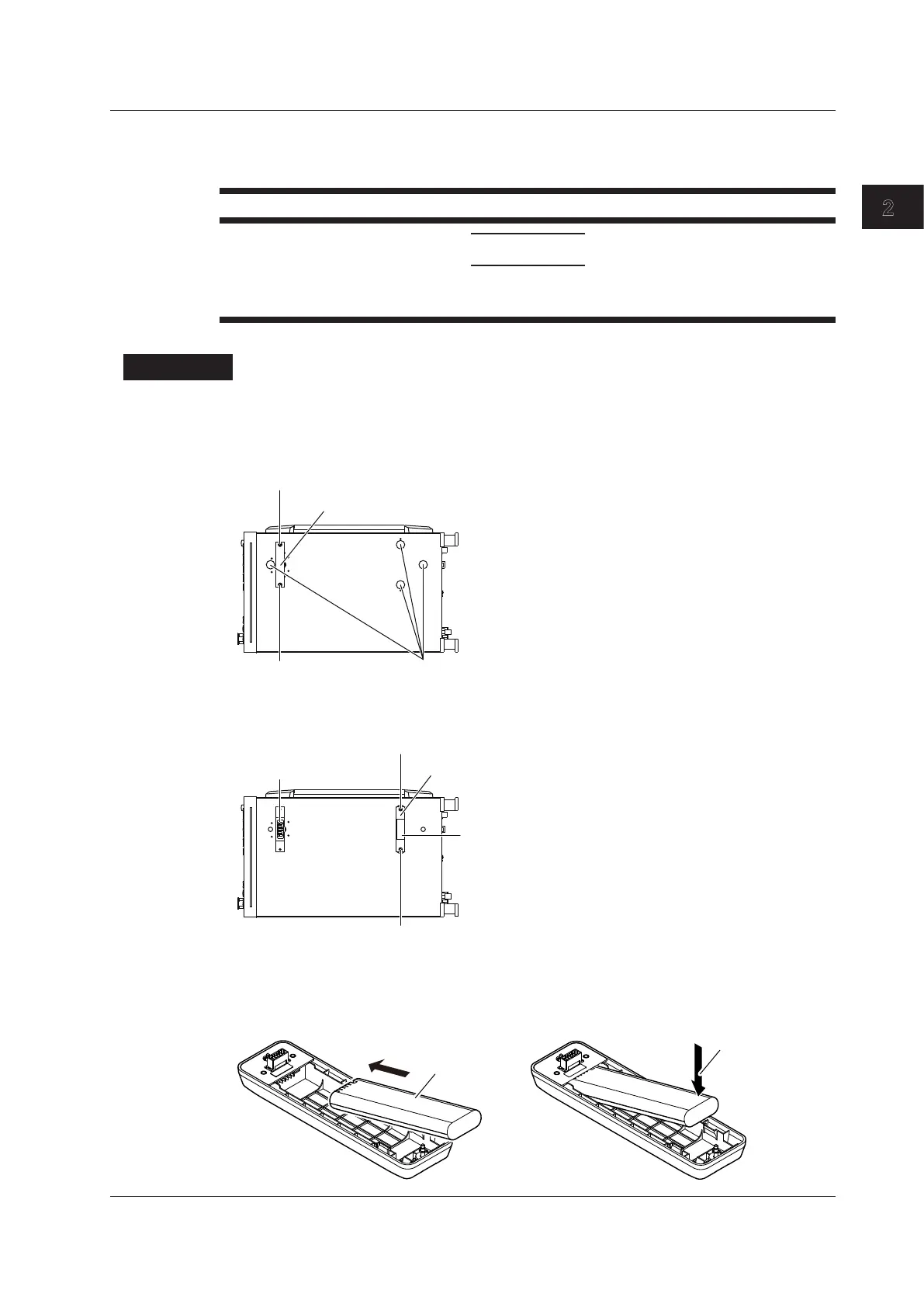

Procedure
Mounting the Battery Pack
1.
Remove the seals from the four battery pack attachment holes on the top panel.
2.
Remove the two screws holding the battery pack terminal protection cover.
Battery pack terminal protection cover
Screw
Screws
Seals on the battery pack attachment holes
3.
Flip the cover over, and place it at the location indicated in the following figure. Using a
screwdriver, screw the cover at two locations.
Battery pack cushion
Fasten the screw.
Fasten the screw.
Battery pack terminal
Battery pack terminal protection cover
4.
Align the battery pack terminal with the battery pack cover terminal, and place the battery pack
on the battery pack cover.
Gently push the battery pack with your fingers so that the terminals become securely
connected.
Battery pack
Press with your
finger.
