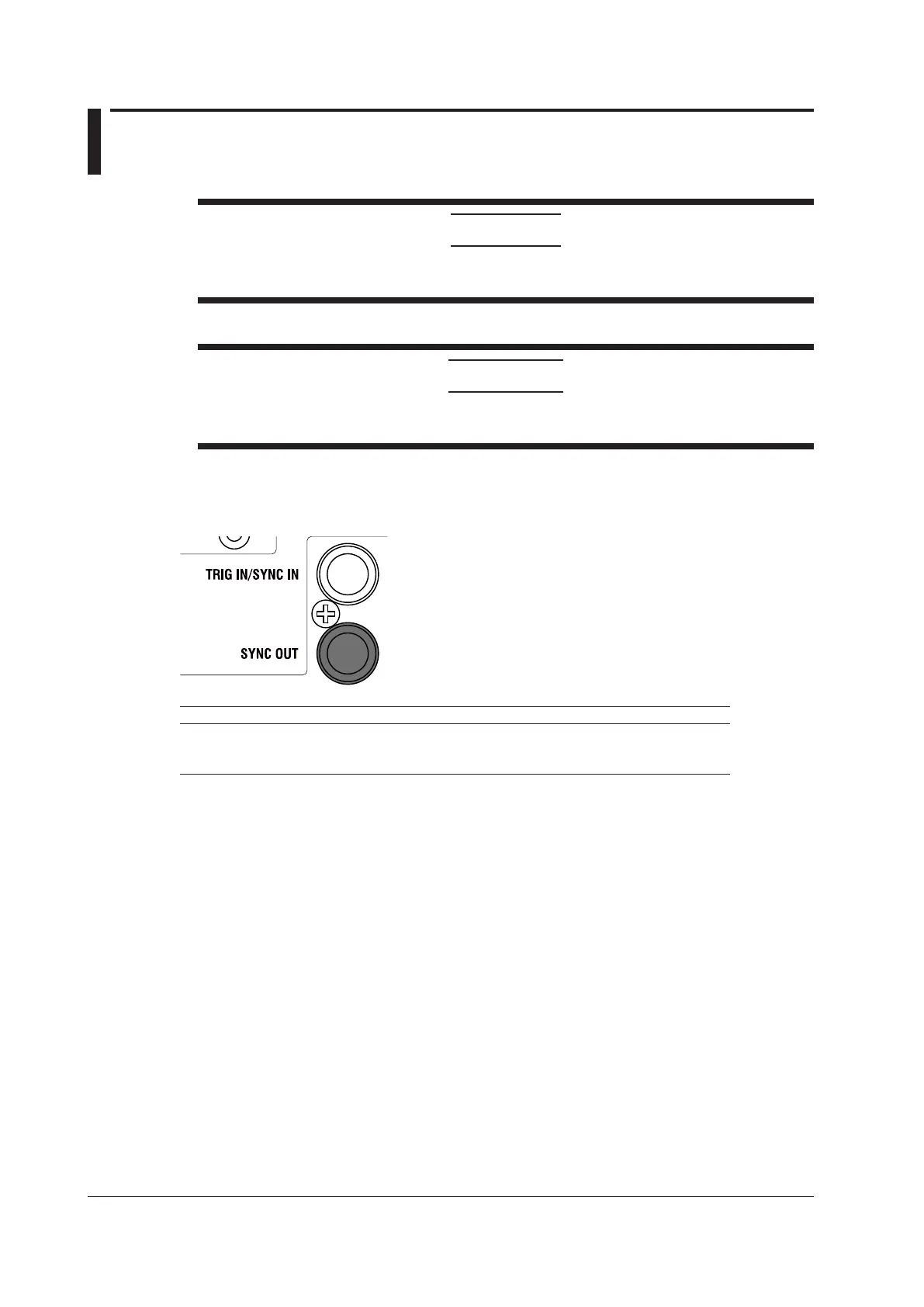

4.2 Sync Signal Output (SYNC OUT)
CAUTION
Do not short the SYNC OUT terminal or apply an external voltage to it. If you do, the
instrument may malfunction.
French
ATTENTION
Ne pas mettre la borne SYNC OUT en court-circuit et ne pas y appliquer une tension externe.
Si vous le faites, l’instrument risque de ne pas fonctionner correctement.
Sync Signal Output Terminal (SYNC OUT)
This terminal outputs a signal when a trigger occurs.
Item Specifications
Output level HIGH: 3.5 V or more, LOW: 0.45 V or less
Output range -0.3 V to 5.5 V
Terminal BNC terminal
