4.3 Voltage Input (V)/Current Input (A) (/DM option)
CAUTION
Do not apply voltage or current exceeding the maximum allowable input. If you do, the
instrument may malfunction.
French
ATTENTION
Ne pas appliquer de tension ou courant supérieur à la tension d’entrée maximum. Si vous le
faites, l’instrument risque de ne pas fonctionner correctement.

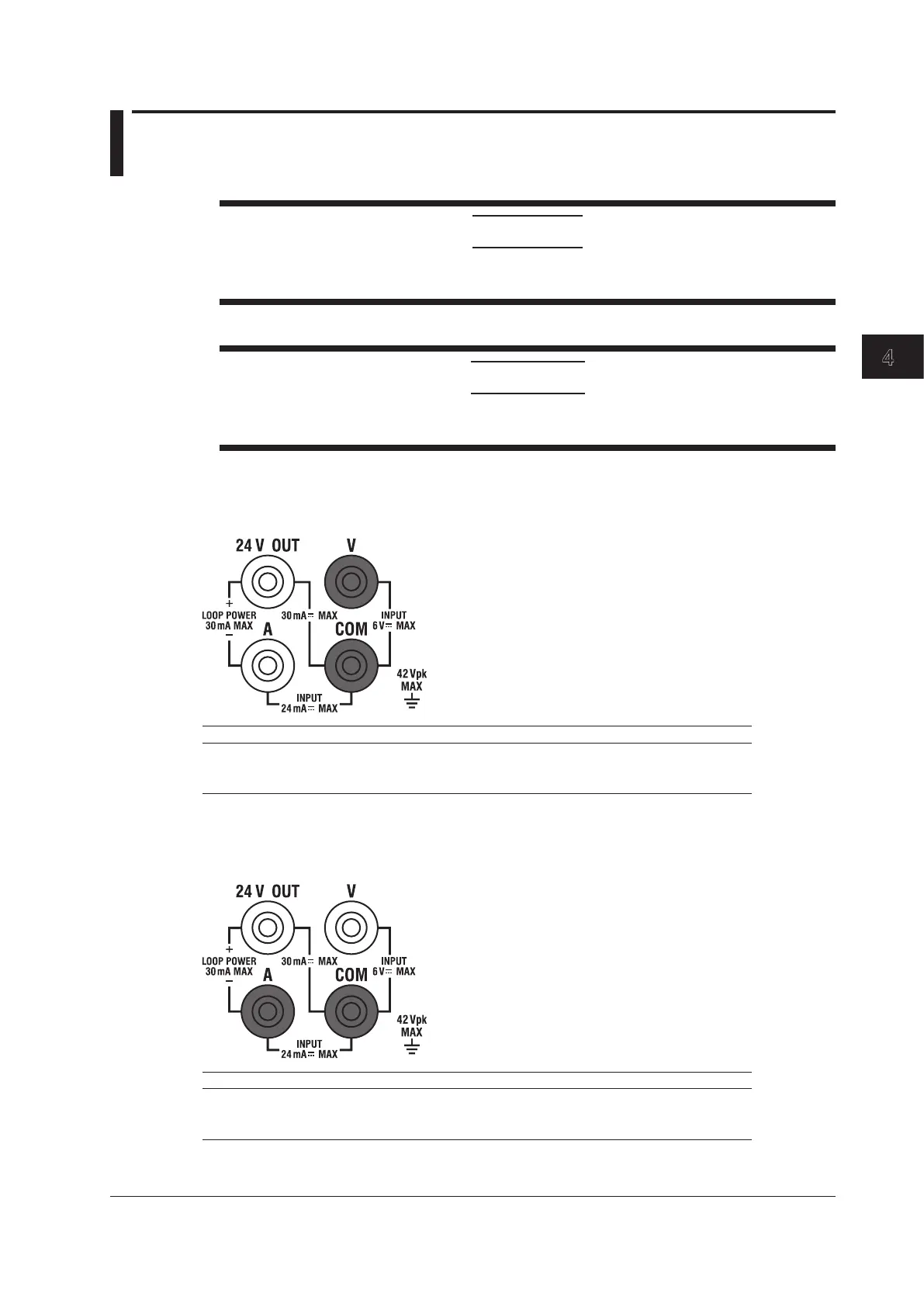

Voltage Input Terminal (V)
This terminal is used when measuring the voltage with the DMM function.
Item Specifications
Maximum allowable input ±30 V
Input resistance Approx. 1 MΩ
Terminal Plug-in terminal (Φ4mm banana jack (female type))
Current Input Terminal (A)
This terminal is used when measuring the current with the DMM function.
Item Specifications
Maximum allowable input ±100 mA
Input resistance Approx. 10 Ω
Terminal Plug-in terminal (Φ4mm banana jack (female type))
