Comparator Output (COMP/BUSY OUT) (/DA option)
CAUTION
Do not short or apply an external voltage to the comparator output terminal. If you do, the
instrument may malfunction.
French
ATTENTION
Ne pas court-circuiter ou appliquer une tension externe à la borne de sortie du comparateur.
Si vous le faites, l’instrument risque de ne pas fonctionner correctement.

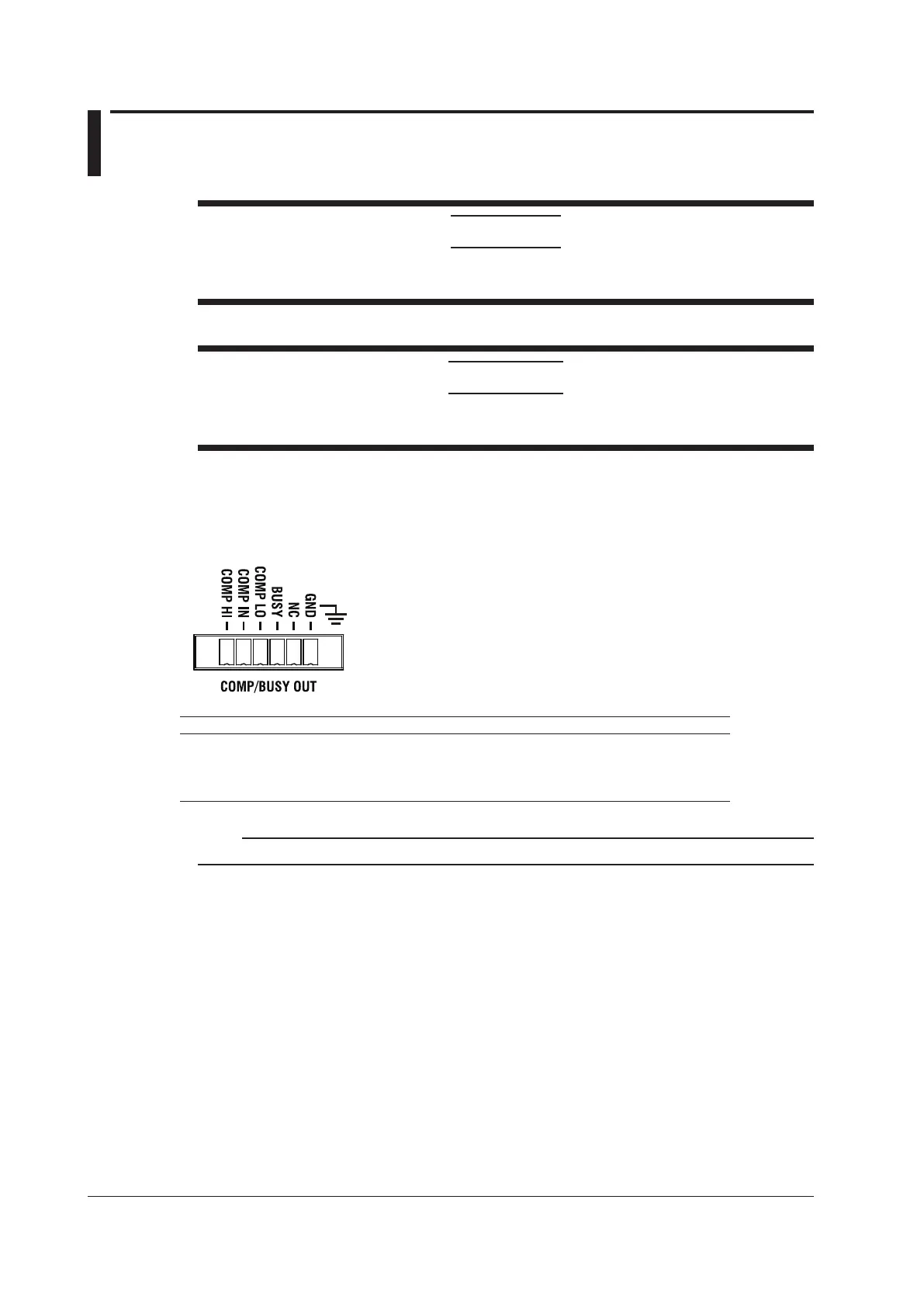

Comparator Output Terminal (COMP/BUSY OUT)
The instrument compares the pressure measurements to the set reference values (upper and lower
limits), and depending on the judgment results, output signals through this terminal.
Item Specifications
Output signal HI/IN/LO, BUSY
Output level HIGH: 3.5 V or more, LOW: 0.45 V or less
Output range -0.3 V to 5.5 V
Terminal Detachable terminal block
Note
For details on the comparator output, see section 4.3 in the user’s manual (IM MT300-01EN).
