Common Operations
3-1
IM DLM3054-02EN
3

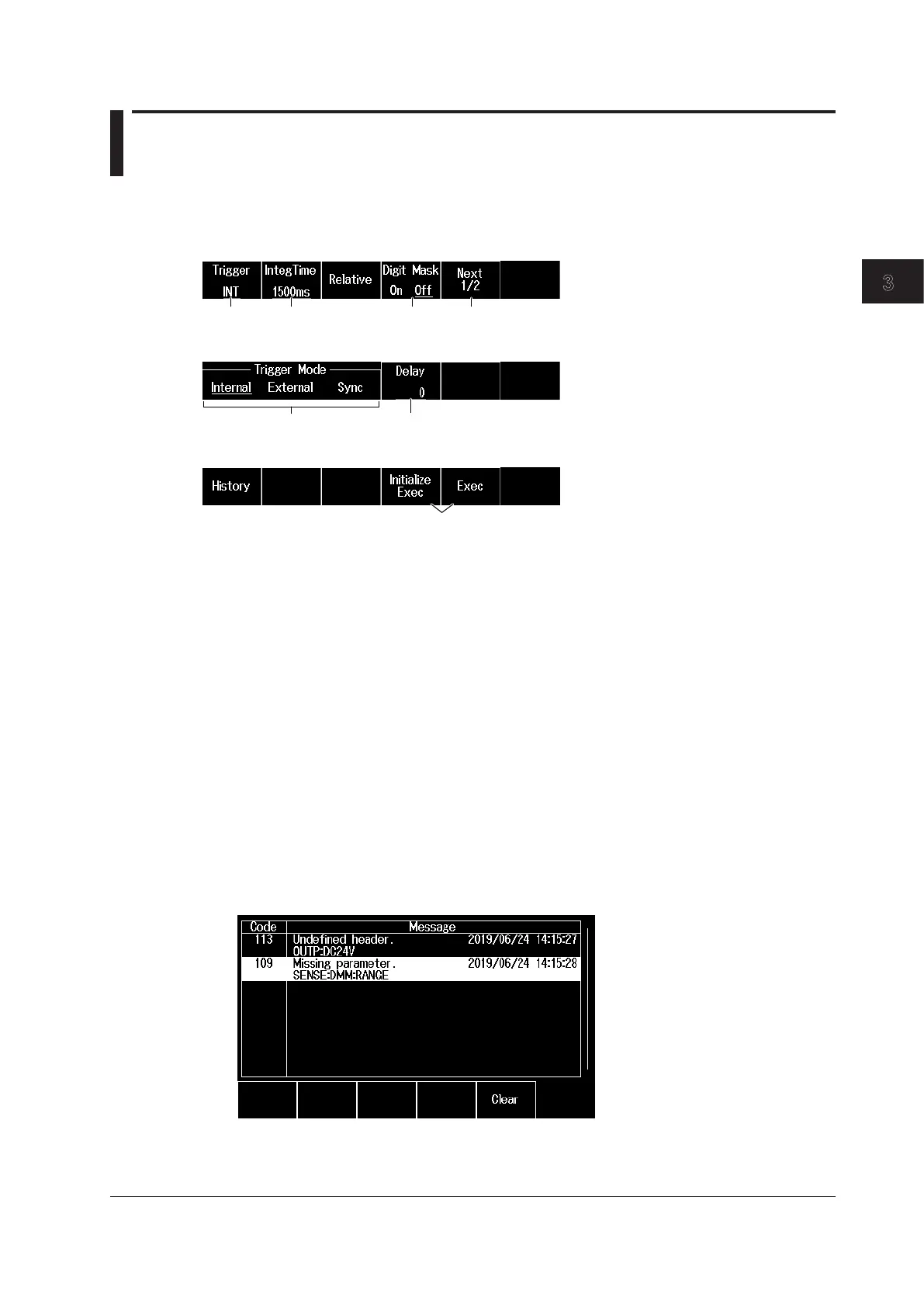

Chapter 3 Common Operations
3.1 Key Operation and Functions
How to Use Setup Menus That Appear When Keys Are Pressed
The operation after you press a key varies depending on the key that you press.
Measure Config menu
Trigger menu
C
F
A B D
E
A: A related setup menu or dialog box appears when you press the soft key.
B: A selection menu appears when you press the soft key. Press the soft key that corresponds to the
appropriate setting.
C: The selected value switches each time you press the soft key.
D: This is displayed when there are several items in the setup menu. Pressing the soft key displays the
next page menu.
E: Press the soft key to apply the value assigned to the key.
F: Pressing the soft key displays a number input box.
G: Pressing the soft key executes the operation.
ESC Key Operation
If you press ESC when a setup menu or available options are displayed, the screen returns to the
menu level above the current one.
How to Operate Lists
Use the arrow (▲ and ▼) keys to move the cursor to the item you want to set. Pressing ESC clears
the list from the screen.
To Next Page
