6-16
IM MT300-02EN
6.7

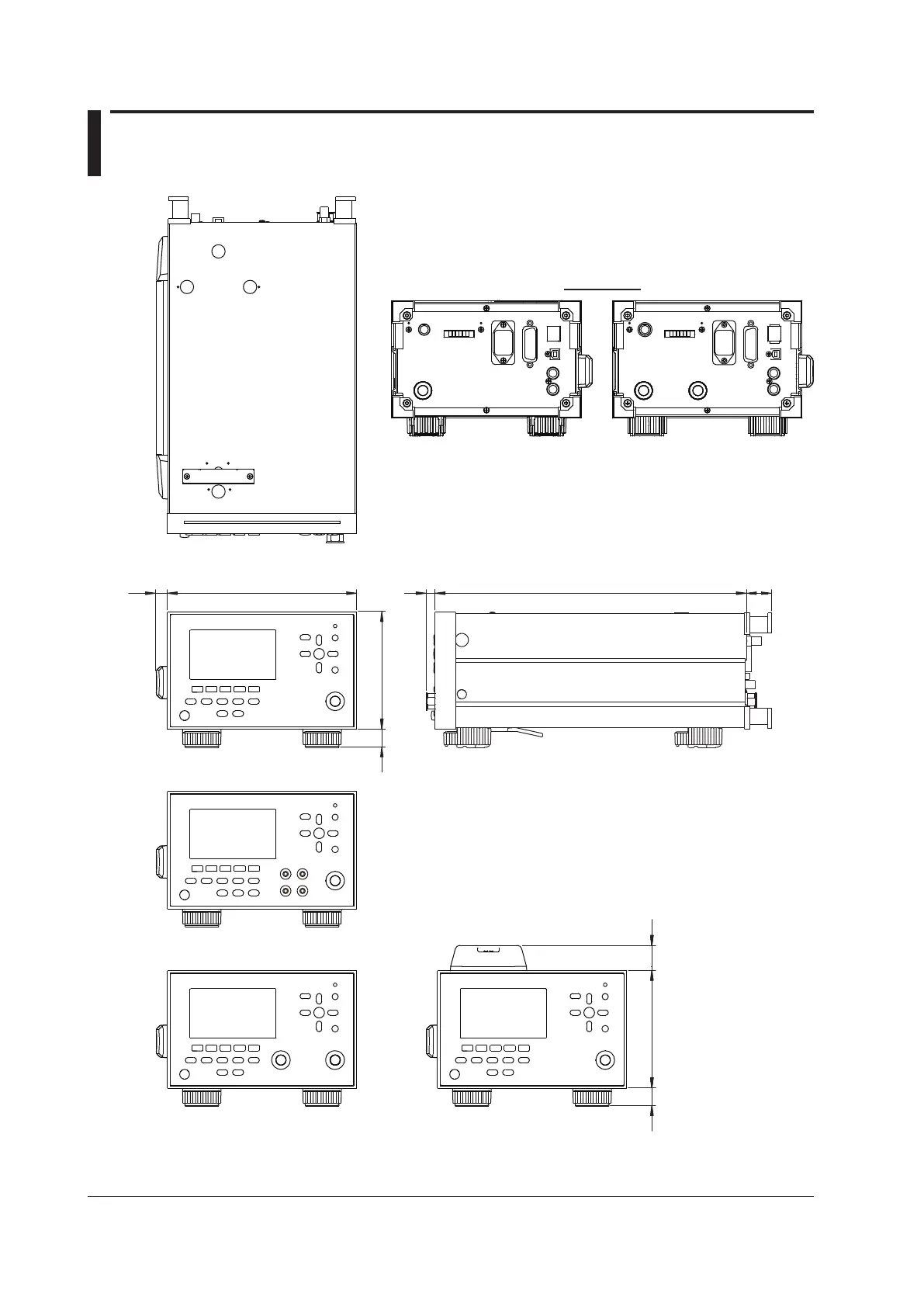

External Dimensions
132
20
29
Rear view
Unit: mm
Differential Pressure Model
Absolute Pressure/Gauge Pressure Model
Absolute Pressure/Gauge Pressure Model (/DM)
Absolute Pressure/Gauge
Pressure Model
Differential Pressure Model
1
1.5
350
28.5
132
20
213
13
When the battery pack is mounted
132
20
29
Unless otherwise specified, tolerances are ±3% (however
, tolerances are ±0.3 mm when below 10
mm).
85
87
